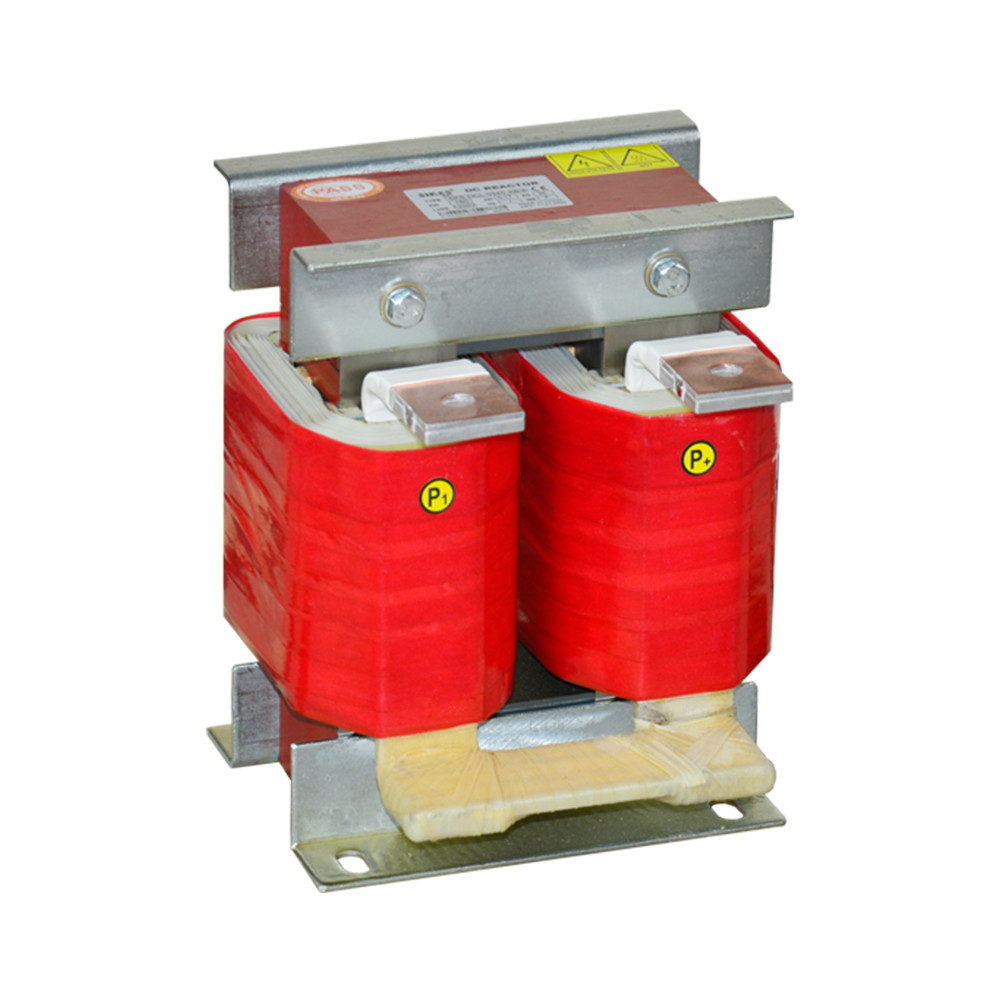

Copper Three Phase 400V DC Reactor For Inverter And AC Drive
Product Details
| Product Name | Three Phase 400V DC Reactor | Material | Copper |
|---|---|---|---|
| Work Voltage | 380v-480v | Color | Red |
| Noise | ≤65dB | Insulation Grade | Class F,H |
| High Light | 400V DC Reactor,Three Phase DC Reactor For Inverter,400V vfd line reactor |
||
Product Description
Three Phase 400V DC Reactor For Frequency Inverter And AC Drive
Product Feature
1. Improve the input current wave resulted by capacitor harmonics
2. Reduce and prevent the rectification bridge being damaged and capacitor being overheating due to surging current.
3. Improve power factor, reduce DC busbar AC pulse.
4. Restrict the transient change of system voltage
Product Parameters
|
Voltage Range |
DC500V-1000V |
|
Dielectric Strength |
Core-Winding, AC 3000V/50Hz/5mA, free of damage in 60s |
|
Insultalon Resistance |
Core-Winding, DC 1000V, Resistance > 100M ohm |
|
Reactor's noise |
less than 65dB(to be measured at the point 1 meter away from the reactor horizontally) |
|
Standard |
GB 19212.1-2008 GB/T 1094.6-2011 |
Product Size
