VEIKONG 2% Voltage Drop AC Output Reactor For Vfd 45kw 55kw Ac Drive Inverter
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 2% Voltage Drop Reactor Material Copper
Output Type Triple Type AC Drive
Weight As Per Unit Application Induction Motor,water Supply
Technical Support Online Support Color Red
Original China Brand VEIKONG
Warranty 18 Months
High Light

VEIKONG AC Output Reactor For Vfd

,

VEIKONG ac line reactor

,

Output Reactor For Vfd 45kw

Product Description

2% Voltage drop AC output Reactor choke for 3phase ac drive inverter



Description of Load Reactor:

VKS-OCL series Load Reactors are placed in series with electrical equipment to introduce a specific controlled impedance to the AC circuit. This series are applied at AC drive output side to suppress inrush voltage, reducing inrush and peak current, improving real power factor, restraining grid harmonics and improving the output current waveform. Line Reactor also known as Output Reactor.



1. High efficiency:
The battery with the same capacitance, higher efficiency, longer use time. Reliable inverter use the most advanced technology to raise the efficiency to 90%, save more energy, more environmental protection.



2. Protection systems:
Thermal protection, Overload protection, Over Voltage protection, Under Voltage protection, Low Voltage protection alarm. Inverter comes with an LED light to indicate the problem.



Technical Data of AC reactor.



1Rated Operating Power:φ3/380V/50Hz or 660V/50Hz;

2Rated operating current:3Ato 2000A@40℃

3Reactive Strength:Core-Winding 3000VAC/50Hz/10mA/10S Free

of arcing breakage (ftested in factory)

4Insulation Resistance:1000VDC,insulation resistance≥100MΩ

5Reactor’S noise is less than 65dB(to be measured at the point 1

meter away from the reactor horizontally)

6Protection class:IP00

7Insulation class:Above F

8Standard: IEC289:1987 Reactor

GB10229-88 Reactor(equivalent to IEC289:



Benefits:

Obvious interference to other devices from power supply (such as interference, overvoltage) Interphase voltage is unbalanced >1.8% of rated voltage Low impedance line (Power transformer is about 10 times of rated data of inverter) Large quantity of inverter mounted on the same power line but have to minimize line current power factor calibrating capacitor or power factor correcting unit applied..





Product Parameters



Voltage Range

DC500V-1000V

Dielectric Strength

Core-Winding, AC 3000V/50Hz/5mA, free of damage in 60s

Insulation Resistance

Core-Winding, DC 1000V, Resistance > 100M ohm

Reactor's noise

less than 65dB(to be measured at the point 1 meter away from the reactor horizontally)

Standard

GB 19212.1-2008 GB/T 1094.6-2011



Product Size

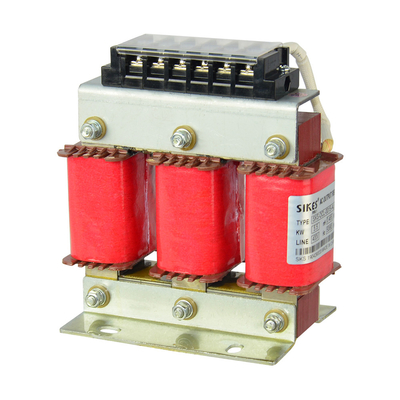

VEIKONG 2% Voltage Drop AC Output Reactor For Vfd 45kw 55kw Ac Drive Inverter 0

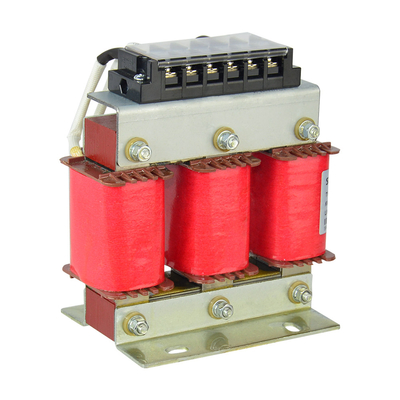

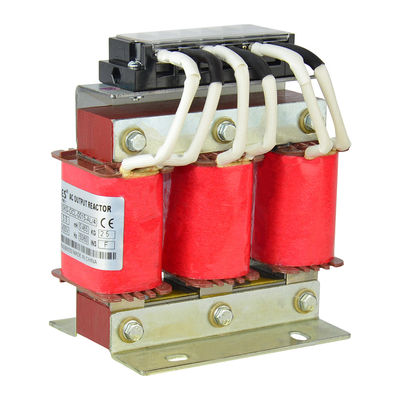

VEIKONG 2% Voltage Drop AC Output Reactor For Vfd 45kw 55kw Ac Drive Inverter 1VEIKONG 2% Voltage Drop AC Output Reactor For Vfd 45kw 55kw Ac Drive Inverter 2
