Frequency Inverter Reactor for Protection and Power Factor Improvement
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 132kw Reactor Material Copper
Input Voltage 380V Weight As Per Unit
Size As Per Unit Application Induction Motor,water Supply
Color Red Warranty 18 Moths
MOQ Negotiable Brand VEIKONG
Technical Guidance Online Support
High Light

15kw Vfd Load Reactor

,

11kw Vfd Load Reactor

,

7.5kw Ac Line Choke

Product Description

AC choke output reactor used for 5.5kw 7.5kw 11kw 15kw AC drive




Purpose

The filter reactor is used in the low-voltage filter cabinet, connected in series with the filter capacitor, tuned to a certain resonance frequency, and used to absorb the harmonic current of the corresponding frequency in the power grid. There are a large number of harmonic sources such as rectifiers, converters, and frequency converters in the low-voltage power grid, and the high-order harmonics generated by them will seriously endanger the safe operation of the main transformer and other electrical equipment in the system. After the filter reactor is connected in series with the capacitor, it can not only effectively absorb the harmonics of the power grid, but also improve the power factor of the system and play a greater role in the safe operation of the system.



Material Features of Load Reactor:

1. Reducing working frequency inverter and DC speed regulator interference to other devices, like harmonic interference, waveform distortion.
2. Enhance the capability of frequency inverter resistance to voltage unbalance degree. (Unbalance degree > 1.8% of rated voltage). 3. 3. Protection frequency inverter rectifier modules and related components damage from pinnacle capacitive current due to low internal power resistance. (When power supply capacity is 5 times larger than frequency inverter capacity).
4. Improve the power factor of power supply, lower harmonic current content in the inverter power supply.
5. Reduce current and voltage waveform distortion rate, improve the quality of power supply.

Characteristic of this series:

Rated operating power: 380V/690V/1140V
Operating frequency: 50/60Hz
Current range: 5-1600A
Operating ambient temperature: -25℃-50℃
Dielectric Strength: Core-winding,AC 3000V/50Hz/5mA/ free of demage in 60s (test in factory)
Insulation Resistance: Core-Winding,DC 1000V,Resistance >100M ohm
Noise: Less than 65dB(to be measured at the point 10 meter away from the reactor horizontally
Protection class: IP00
Insulation class: F/H
Standard: GB 19212.1-2008GB/T1094.6-2011





Product Parameters



Voltage Range

DC500V-1000V

Dielectric Strength

Core-Winding, AC 3000V/50Hz/5mA, free of damage in 60s

Insulation Resistance

Core-Winding, DC 1000V, Resistance > 100M ohm

Reactor's noise

less than 65dB(to be measured at the point 1 meter away from the reactor horizontally)

Standard

GB 19212.1-2008 GB/T 1094.6-2011

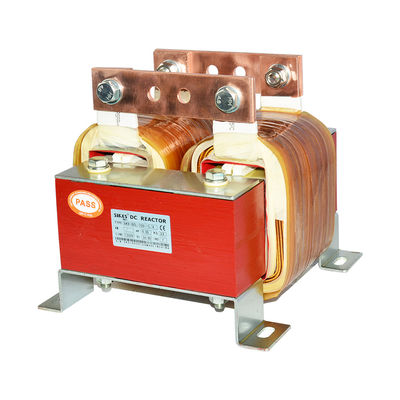

Frequency Inverter Reactor for Protection and Power Factor Improvement 0



Product Size

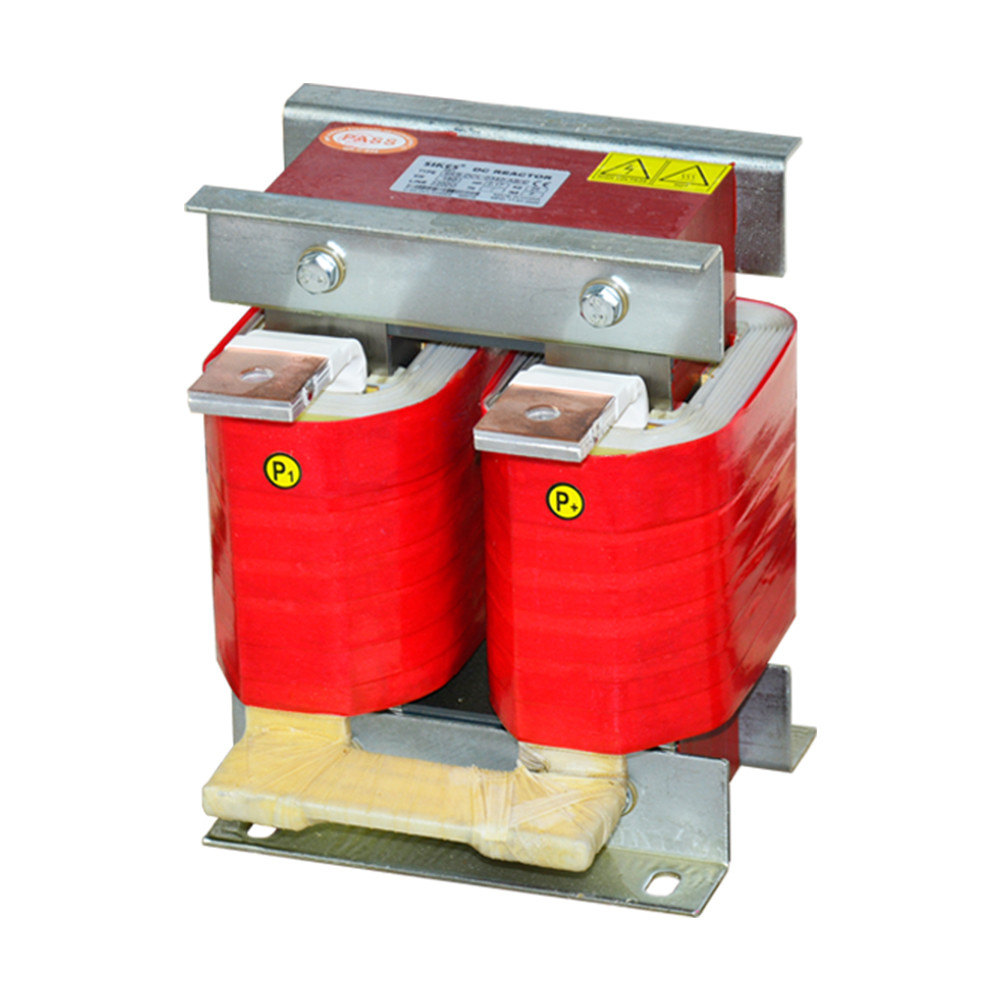

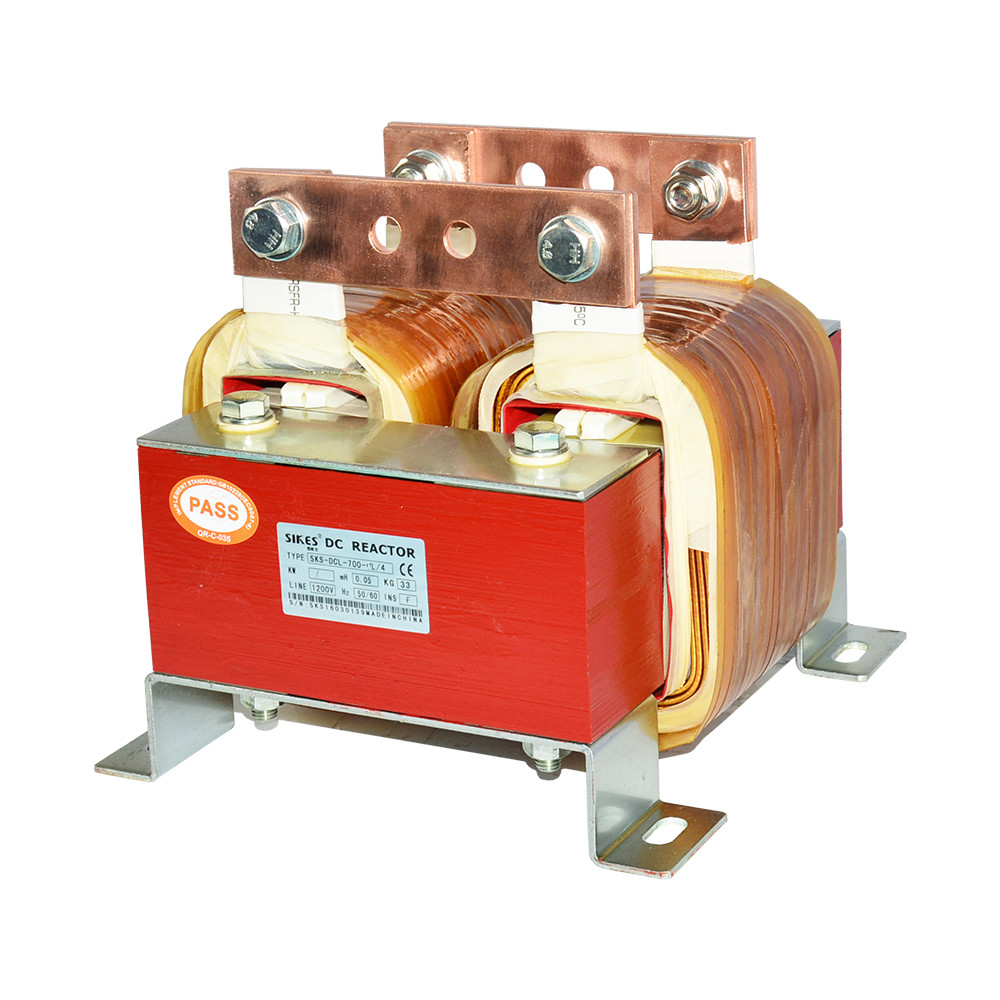

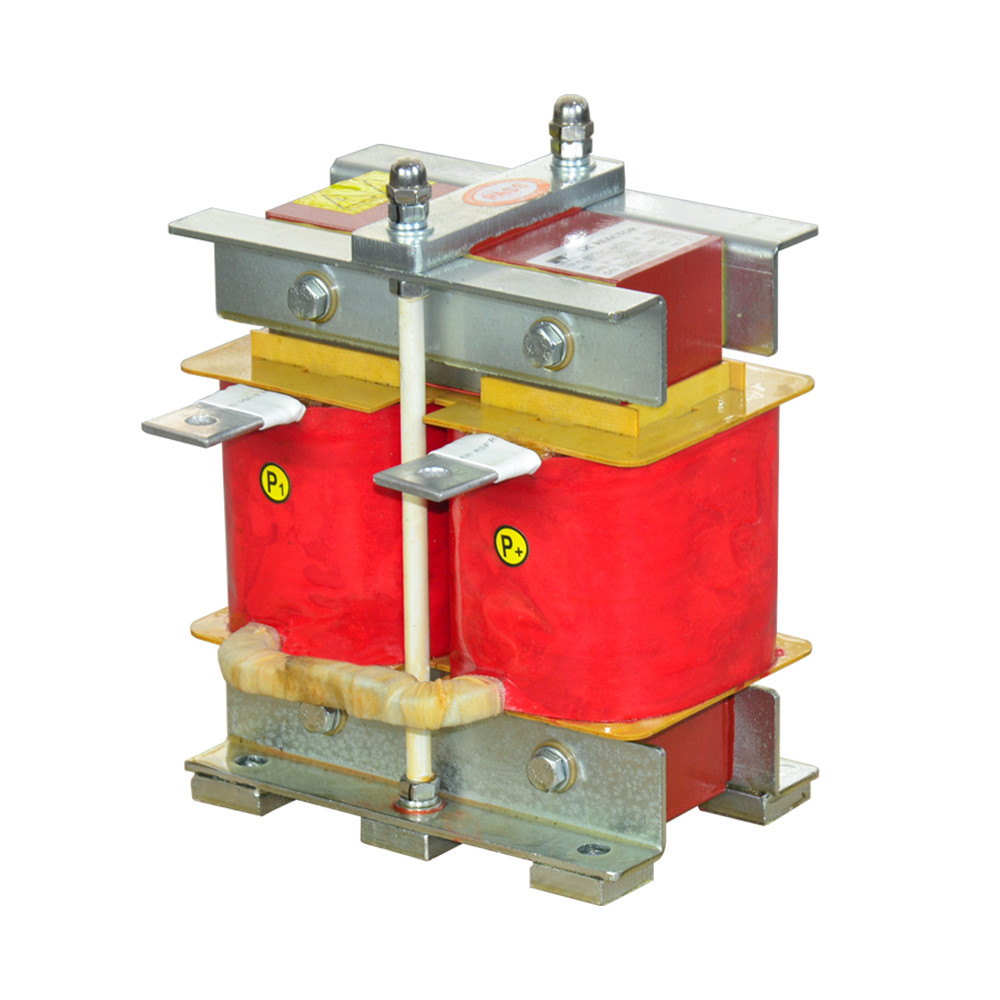

Frequency Inverter Reactor for Protection and Power Factor Improvement 1Frequency Inverter Reactor for Protection and Power Factor Improvement 2Frequency Inverter Reactor for Protection and Power Factor Improvement 3

Frequency Inverter Reactor for Protection and Power Factor Improvement 4

Application of Load Reactor:

It is recommended to use input reactors in the following circumstances:
1. frequency converters in parallel close connection.
2. line power supply has obvious disturbance from other devices (interference, over voltage).
3. there is voltage imbalance between the phases of the line power supply, exceeding 1.8% of the rated voltage.
4. a large number of converters are installed on the same line.
5. reduce cos C overload on the correction capacitor if there is a power factor correction device in the device.
6. power supply capacity is 60KVA and above, and frequency converter installation location is within 10M of large capacity power supply.
7. the frequency converter is powered by a very low impedance line (10 times higher than the inverter's rated value).
