VEIKONG DC Reactor Choke For AC Frequency Inverter VFD Core-Winding Insulation Resistance
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name DC Reactor Choke Material Copper
Protection Level IP20 Noise ≤65dB
Colar Red Current Depend On Model
High Light

IP20 Vfd Line Choke

,

IP20 3 Phase Line Choke

Product Description

DC Reactor Choke For AC Frequency Inverter Variable Frequency Drive VFD



Product Feature



The inside insulation material is of high performance & high temperature resistant combined with frame less process, the reactor's temperature heat-resisting ability is strong and the class F or class H is optional. Reactor air gap adopts argon arc welding process.which has low noise, small magnetic flux leakage and stable inductance. Coiled with foil winding process, reactor has strong resistance of electric magnetic force, good presentation quality. Core with grain- oriented cold-rolled silicon steel sheets, making reactors have high reliability, small size, light weight and low cost.



Product Parameters



Voltage Range

DC500V-1000V

Dielectric Strength

Core-Winding, AC 3000V/50Hz/5mA, free of damage in 60s

Insulation Resistance

Core-Winding, DC 1000V, Resistance > 100M ohm

Reactor's noise

less than 65dB(to be measured at the point 1 meter away from the reactor horizontally)

Standard

GB 19212.1-2008 GB/T 1094.6-2011



Product Size

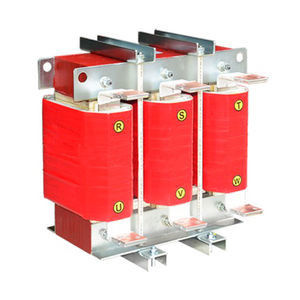

VEIKONG DC Reactor Choke For AC Frequency Inverter VFD Core-Winding Insulation Resistance 0

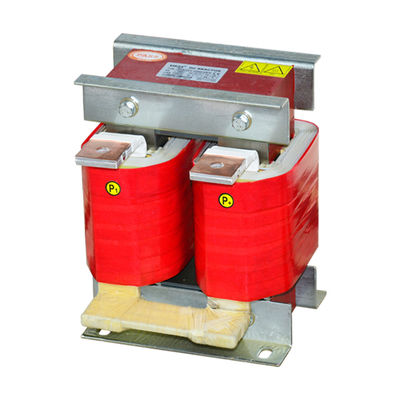

VEIKONG DC Reactor Choke For AC Frequency Inverter VFD Core-Winding Insulation Resistance 1

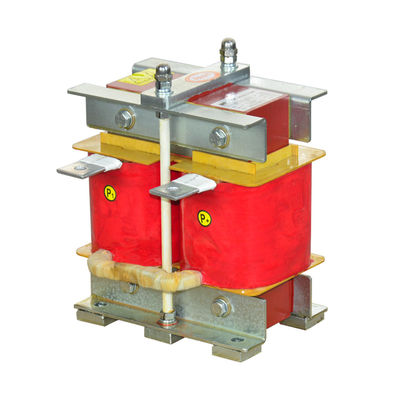

VEIKONG DC Reactor Choke For AC Frequency Inverter VFD Core-Winding Insulation Resistance 2
