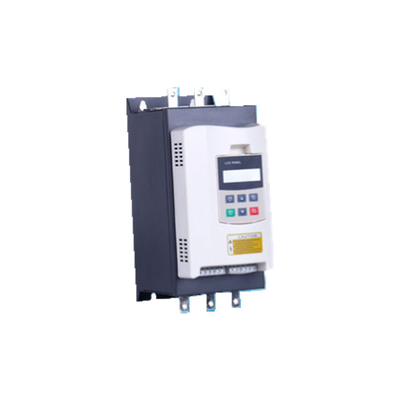

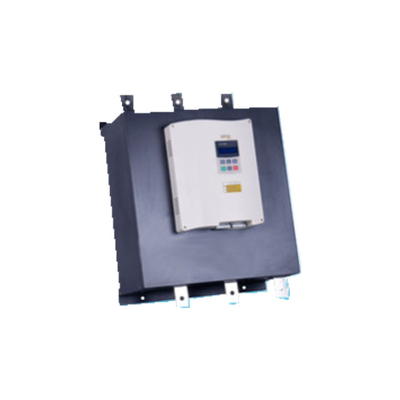

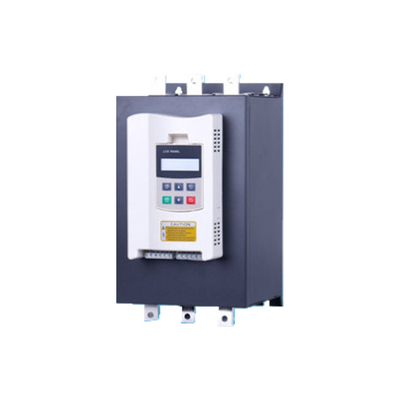

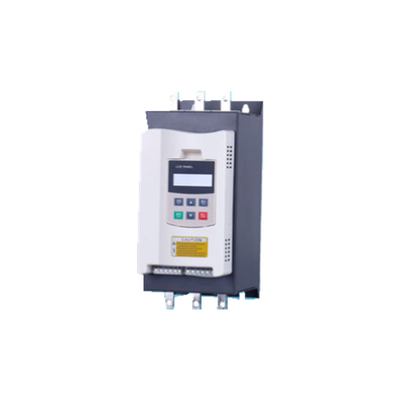

Performance Monitoring Motor Soft Starter for 30KW-90KW Motors with 18 Months
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS6000
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 30KW 37KW 45KW 55KW 75KW 90KW Bypass Soft Starter Output Frequency 50/60Hz
Application Fan,pump,mixer Protection Overload,over Heat,over Temperature
Output Current 11A Warranty 18 Months
Color White And Dark Gray Soft Starter Model Online Soft Starter
OEM Cabinet Support High Protection Level OEM Cabinet Function Soft Starter And Energy Saving
High Light

75kw Fan Motor Starter


11A 75kw Soft Starter


VEIKONG 75kw Soft Starter

Product Description

30KW 37KW 45KW 55KW 75KW 90KW Bypass Soft Starter With 24 Months Warranty


Product feature


VKS-8000 is a highly intelligent, very reliable and easy to use soft starter. The newly designed functions of VKS-8000 are used for quick setting or more personalized control.
It's a perfect solution. Its performance includes:
Large LCD screen that can display feedback information in Chinese and English languages, other languages can be customized.
Remotely installable operation panel.
Intuitive programming.
Advanced start and stop control functions.
A series of motor protection functions.
Extensive performance monitoring and event logging.


Technical Specification

Input Power SupplyInput VoltageThree-phase 380V/480V/660 AC
Adaptive MotorSquirrel-cage three-phase asynchronous motor
Starting TimesIt is recommended not to exceed 20 times per hour.


Control Mode

(1) Operation panel control.

(2) Operation panel + external control.

(3) External control.

(4) External control + COM control.

(5) Operation panel + external + COM control.

(6) Operation panel + COM control.

(7) COM control.

(8) No start or stop operation.


Start Mode

(1) Current-limiting to start.

(2) Voltage ramp to start.

(3) Torque control + current-limiting to start.

(4) Torque control + voltage ramp to start.

(5) Current ramp to start.

(6) Voltage current-limiting double closed-loop start.

Stop Mode

(1) Soft stop.

(2) Free stop.


Protective Function

(1) Open loop protection for external instantaneous stop terminals.

(2) Over-heat protection for soft starter.

(3) Protection for too long starting time.

(4) Input open phase protection.

(5) Output open phase protection.

(6) Unbalanced three-phase protection.

(7) starting over current protection.

(8) Running overload protection.

(9) Under voltage protection for power voltage.

(10) Overvoltage protection for power voltage.

(11) Protection for fault parameter setting.

(12) Load short circuit protection.

(13) Auto restart or incorrect wiring protection.

(14) Incorrect wiring protection of external control stop terminals.



Place to be usedIndoor location with good ventilation free from corrosive gas and conductive dust.

Below 1000M. It have to rise the rate power when the altitude is more than 1000M.

Temperature-20 +45 C
Humidity90%RH without dew condensation.
StructureProtection ClassIP20
Cooling PatternFans cooling.

Product Application

3 Phase 380V/440V 5.5KW 7.5KW 11KW 15KW 30KW 45KW to 500KW Soft Start AC Motor Multi-Function Soft Starter

3 Phase 380V/440V 5.5KW 7.5KW 11KW 15KW 30KW 45KW to 500KW Soft Start AC Motor Multi-Function Soft Starter


3 Phase 380V/440V 5.5KW 7.5KW 11KW 15KW 30KW 45KW to 500KW Soft Start AC Motor Multi-Function Soft Starter
