Voltage Current-Limiting Double Closed-Loop Start Motor Soft Starter For Protection
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS6000
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 55kw 75kw 90kw AC Motor Soft Starter Voltage Range 380v-480v
Warranty 24 Months Frequency 50/60Hz
Weight 17kg Size 360*210*255mm
Brand VEIKONG Original China
High Light

VEIKONG 90 Kw Soft Starter

,

VEIKONG Water Pump Soft Starter

,

75kw Water Pump Soft Starter

Product Description

55kw 75kw 90kw AC Motor Soft Starter For Fans And Water Pumps



Product Feature



1. 16 SCM control, intelligent all-digital display


2. Can be put into practice a soft starter control multiple motors.


3. Starting modes: Current limiting starter, Voltage ramp start , Kick start +current-limiting start, kick start +voltage ramp start . Current ramp start . Voltage current-limiting double closed –loop start.


4. Free stop and soft stop , The stop time from 0 to 60 seconds can be arbitrary choosed .


5. Over current , Overload , Open phase, instantaneous stop and other fault protection .with the flow, over loading, lack phase, instantaneous stop, and other malfunction protection.


6. Easy installation, simple operation, strong function and reasonable prices.


7. 5.5KW-75KW soft starter also have built-in bypass contactor.But the factory default is not with built-in bypass contactor. Clients need to confirm this once order confirmed.



Technical Specification



Item

Description

Input Power Supply

Input Voltage

Three-phase 380V/480V/660 AC

Frequency

50/60Hz

Adaptive Motor

Squirrel-cage three-phase asynchronous motor

Starting Times

It is recommended not to exceed 20 times per hour.

Control Mode

(1) Operation panel control.

(2) Operation panel + external control.

(3) External control.

(4) External control + COM control.

(5) Operation panel + external + COM control.

(6) Operation panel + COM control.

(7) COM control.

(8) No start or stop operation.

Start Mode

(1) Current-limiting to start.

(2) Voltage ramp to start.

(3) Torque control + current-limiting to start.

(4) Torque control + voltage ramp to start.

(5) Current ramp to start.

(6) Voltage current-limiting double closed-loop start.

Stop Mode

(1) Soft stop.

(2) Free stop.

Protective Function

(1) Open loop protection for external instantaneous stop terminals.

(2) Over-heat protection for soft starter.

(3) Protection for too long starting time.

(4) Input open phase protection.

(5) Output open phase protection.

(6) Unbalanced three-phase protection.

(7) starting over current protection.

(8) Running overload protection.

(9) Under voltage protection for power voltage.

(10) Overvoltage protection for power voltage.

(11) Protection for fault parameter setting.

(12) Load short circuit protection.

(13) Auto restart or incorrect wiring protection.

(14) Incorrect wiring protection of external control stop terminals.

Ambient

Place to be used

Indoor location with good ventilation free from corrosive gas and conductive dust.

Altitude

Below 1000M. It have to rise the rate power when the altitude is more than 1000M.

o

Temperature

-20 +45 C

Humidity

90%RH without dew condensation.

Vibration

<0.5G

Structure

Protection Class

IP20

Cooling Pattern

Fans cooling.



Product Application

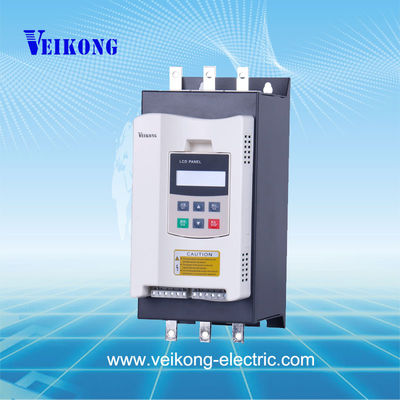

Voltage Current-Limiting Double Closed-Loop Start Motor Soft Starter For Protection 0

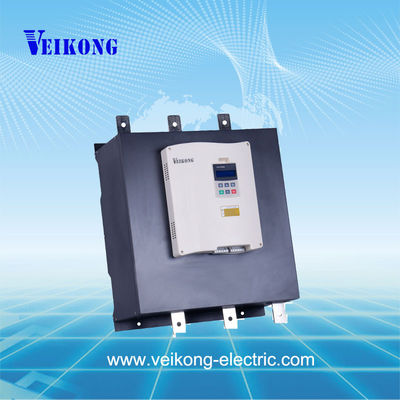

Voltage Current-Limiting Double Closed-Loop Start Motor Soft Starter For Protection 1
