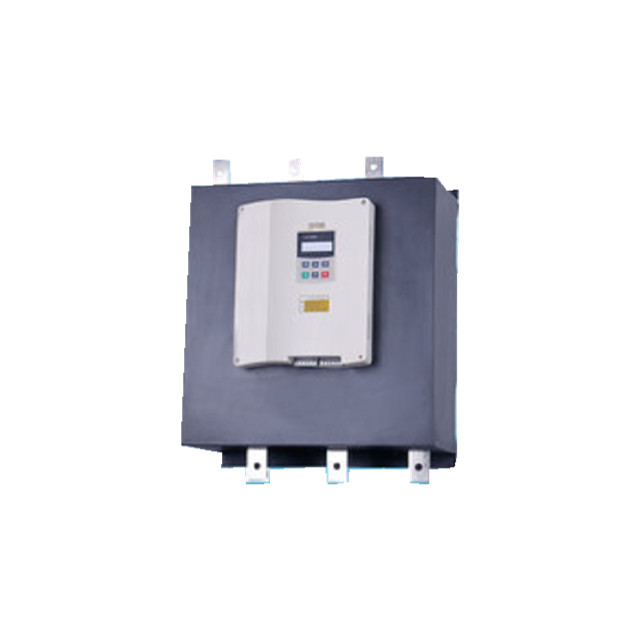

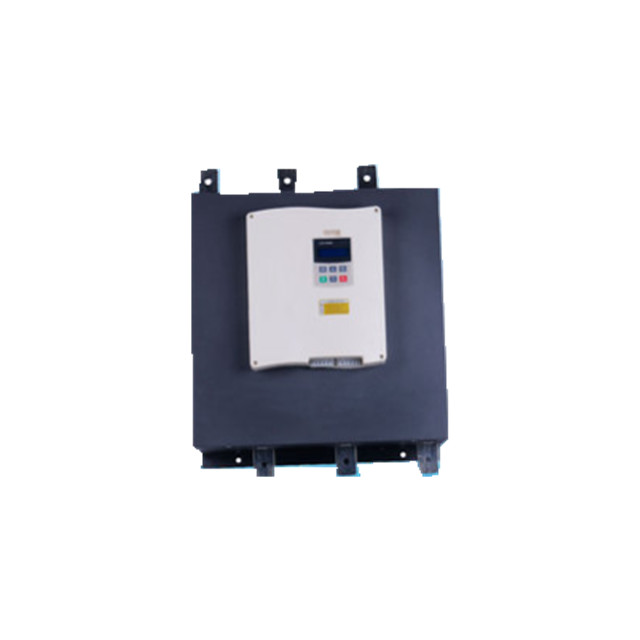

Energy Saving Motor Soft Starter with Automatic Cooling Function
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS6000
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 200kw 220kw 250kw 280kw Soft Starter Type Online Type
Warranty 24 Months Weight 60kg
Size 562*490*295mm RS485 Card Optional
Series VKS6000 OEM Supported
Original China Techncial Support Online Support
High Light

280kw Motor Soft Starter

,

220kw Motor Soft Starter

,

220kw electronic soft starter

Product Description

200kw 220kw 250kw 280kw Motor Protector AC Contactor Magnetic Motor Soft Starter​



Product Feature



1. Debug faster



The VKS-6000 is easy to use at design time considering the ease of use menu is not surprising. After installation, the quick setup menu assists you in configuring the starter for commonnapplications: it suggests a typical value that you can fine tune to your own needs, all with an easy-to-use dashboard.

2. Cooling innovation

High speed fan plus out of the wind grille, 360 degrees all-round cooling, when the soft-start fan high-speed operation, soft start and stop the fan chime five minutes to automatically stop functioning, to achieve intelligent cooling, so that users are not wasting every kWh.

3. Software innovation

A wider range of applications Built-in smart power motherboard, but Paul remote places, low voltage or voltage instability led to the device can not get up, intelligent power supply board can be within the voltage 150V- 460V application equipment to achieve the normal starting requirements.

New current-voltage coefficient, built-in power board can be directly calibrated current and voltage.

Start delay parameters, when the equipment power failure, the soft starter automatically delayed after 5 minutes

4. Communication innovation

(RJ-45, DB9 and other plug-in, built-in RS485, RS232 interface, providing Chinese PC software, user-friendly remote debugging and control)



Technical Specification



Item

Description

Input Power Supply

Input Voltage

Three-phase 380V/480V/660 AC

Frequency

50/60Hz

Adaptive Motor

Squirrel-cage three-phase asynchronous motor

Starting Times

It is recommended not to exceed 20 times per hour.

Control Mode

(1) Operation panel control.

(2) Operation panel + external control.

(3) External control.

(4) External control + COM control.

(5) Operation panel + external + COM control.

(6) Operation panel + COM control.

(7) COM control.

(8) No start or stop operation.

Start Mode

(1) Current-limiting to start.

(2) Voltage ramp to start.

(3) Torque control + current-limiting to start.

(4) Torque control + voltage ramp to start.

(5) Current ramp to start.

(6) Voltage current-limiting double closed-loop start.

Stop Mode

(1) Soft stop.

(2) Free stop.

Protective Function

(1) Open loop protection for external instantaneous stop terminals.

(2) Over-heat protection for soft starter.

(3) Protection for too long starting time.

(4) Input open phase protection.

(5) Output open phase protection.

(6) Unbalanced three-phase protection.

(7) starting over current protection.

(8) Running overload protection.

(9) Under voltage protection for power voltage.

(10) Overvoltage protection for power voltage.

(11) Protection for fault parameter setting.

(12) Load short circuit protection.

(13) Auto restart or incorrect wiring protection.

(14) Incorrect wiring protection of external control stop terminals.

Ambient

Place to be used

Indoor location with good ventilation free from corrosive gas and conductive dust.

Altitude

Below 1000M. It have to rise the rate power when the altitude is more than 1000M.

o

Temperature

-20 +45 C

Humidity

90%RH without dew condensation.

Vibration

<0.5G

Structure

Protection Class

IP20

Cooling Pattern

Fans cooling.



Product Application

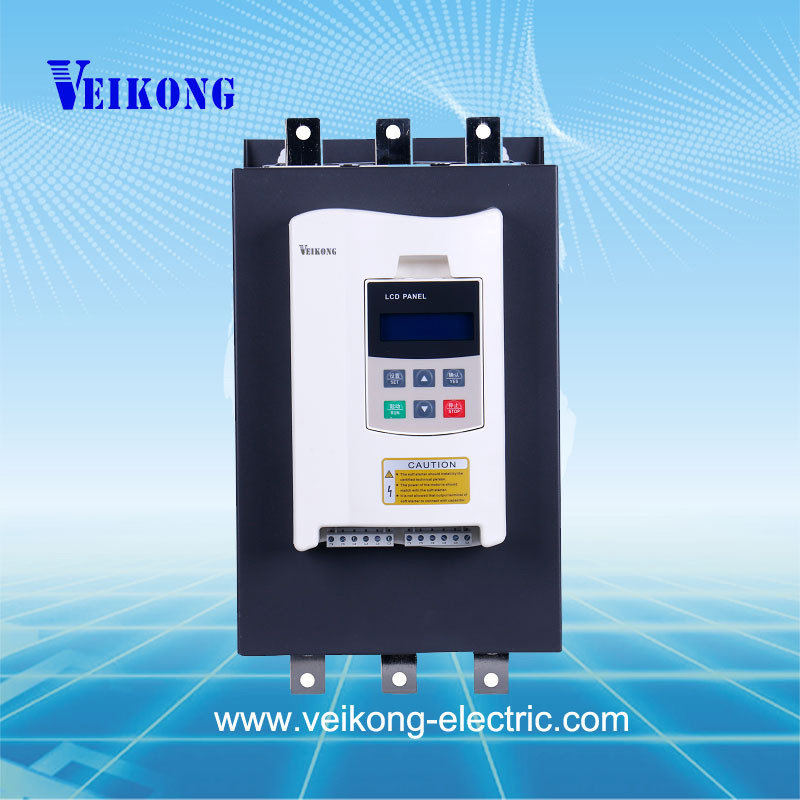

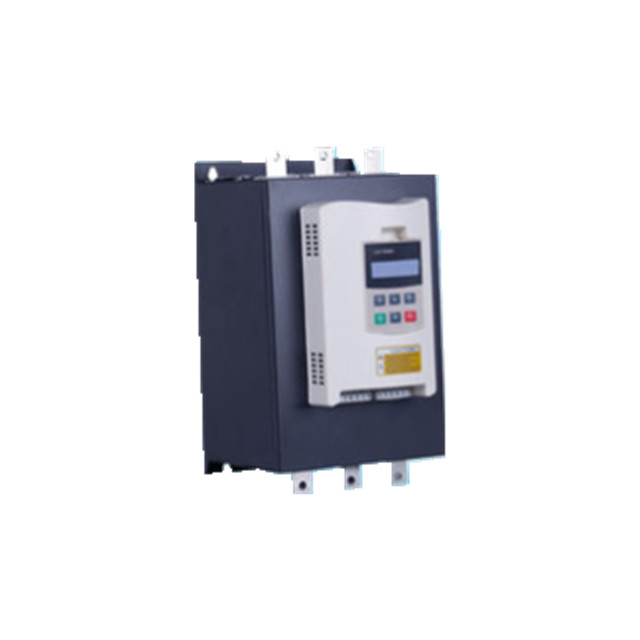

Energy Saving Motor Soft Starter with Automatic Cooling Function 0

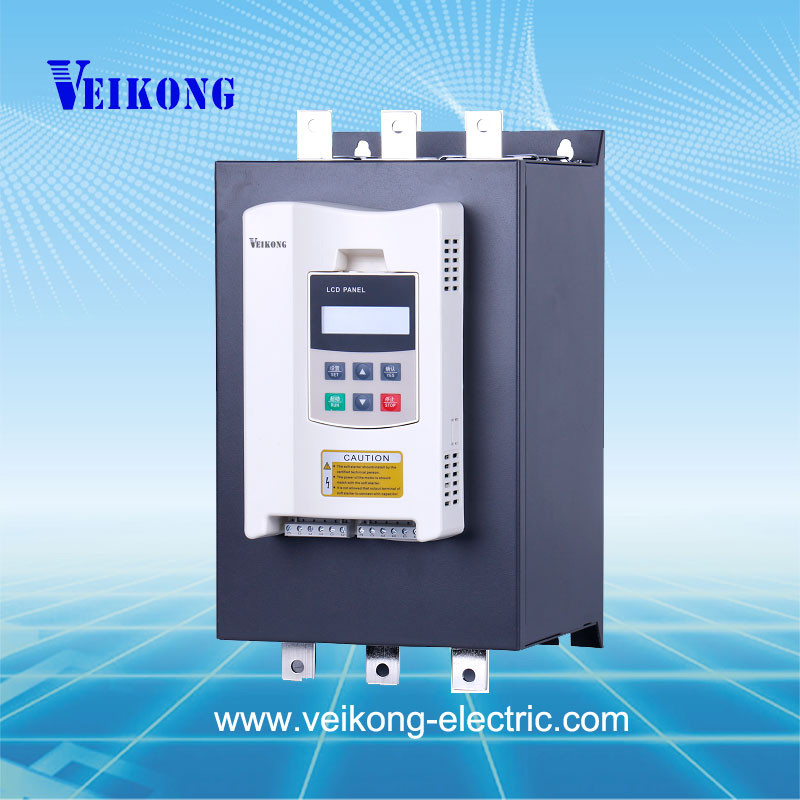

Energy Saving Motor Soft Starter with Automatic Cooling Function 1
