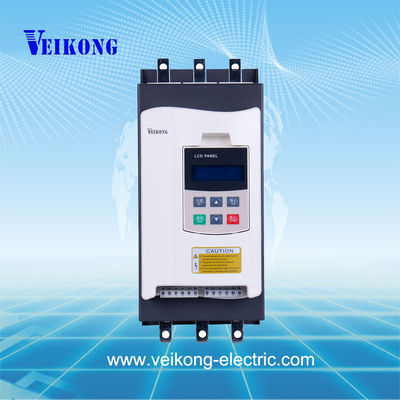

3phase 115kw 132kw 160 Kw Soft Starter Electronic Soft Starter For Large Motor
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VKS6000
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 115kw 132kw 160kw Soft Starter Type Online
Warranty 24 Months Weight 30kg
Size 465*330*255mm RS485 Card Optional
High Light

3phase 160 Kw Soft Starter

,

115kw Electronic Soft Starter

,

Large Motor 160 Kw Soft Starter

Product Description

115kw 132kw 160kw 3 Phase Motor Soft Starter For Large Motors



Product Feature



1. Real language real-time display



VEIKONG wants to make your work easy and peace of mind, so VKS-6000 in real language feedback, you don't have to check the code to understand what happened.



With real-time meter displays and 10 event log records, it has never been easier to track motor performance.



2. Higher Ultra-intelligent move



VKS-6000 allows you to control the motor starting. You can choose the best soft starter control method for your application.



For applications that require precise control of the motor starting current, the VKS-6000 offers you a choice of dual closed-loop or current-ramp start-up options.



3. Installation easier



If the motor control center has limited space, using the compact design of the VKS-6000 saves 70% space, eliminates the need for bypassing the contactor, and reduces primary and secondary costs by more than 30%



Technical Specification



Item

Description

Input Power Supply

Input Voltage

Three-phase 380V/480V/660 AC

Frequency

50/60Hz

Adaptive Motor

Squirrel-cage three-phase asynchronous motor

Starting Times

It is recommended not to exceed 20 times per hour.

Control Mode

(1) Operation panel control.

(2) Operation panel + external control.

(3) External control.

(4) External control + COM control.

(5) Operation panel + external + COM control.

(6) Operation panel + COM control.

(7) COM control.

(8) No start or stop operation.

Start Mode

(1) Current-limiting to start.

(2) Voltage ramp to start.

(3) Torque control + current-limiting to start.

(4) Torque control + voltage ramp to start.

(5) Current ramp to start.

(6) Voltage current-limiting double closed-loop start.

Stop Mode

(1) Soft stop.

(2) Free stop.

Protective Function

(1) Open loop protection for external instantaneous stop terminals.

(2) Over-heat protection for soft starter.

(3) Protection for too long starting time.

(4) Input open phase protection.

(5) Output open phase protection.

(6) Unbalanced three-phase protection.

(7) starting over current protection.

(8) Running overload protection.

(9) Under voltage protection for power voltage.

(10) Overvoltage protection for power voltage.

(11) Protection for fault parameter setting.

(12) Load short circuit protection.

(13) Auto restart or incorrect wiring protection.

(14) Incorrect wiring protection of external control stop terminals.

Ambient

Place to be used

Indoor location with good ventilation free from corrosive gas and conductive dust.

Altitude

Below 1000M. It have to rise the rate power when the altitude is more than 1000M.

o

Temperature

-20 +45 C

Humidity

90%RH without dew condensation.

Vibration

<0.5G

Structure

Protection Class

IP20

Cooling Pattern

Fans cooling.



Product Application



3phase 115kw 132kw 160 Kw Soft Starter Electronic Soft Starter For Large Motor 0



3phase 115kw 132kw 160 Kw Soft Starter Electronic Soft Starter For Large Motor 1



FAQ



1. Do you accept customized order?



Yes, we do.



2. Can I have a sample order?



Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



3. How to ship?


Please inform us of your requirements, whether it is by sea, air or express, it is all right for us. We have very professional logistics channels to provide the best transportation cost, service and guarantee.
