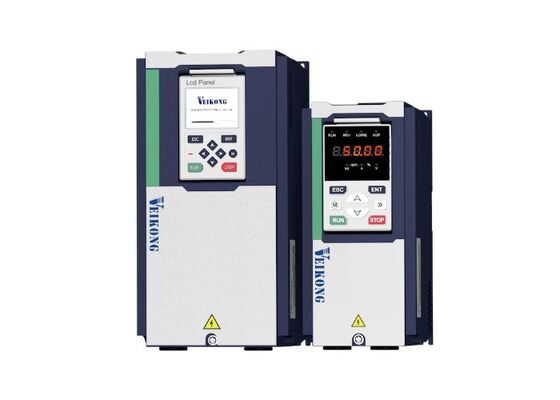

VEIKONG CH530 Crane VFD 380V 0.75-710kW High Performance Vector AC Drive for Hoist Gantry Tower Crane

VEIKONG CH530 Series Crane VFD

Professional AC Drive for Lifting Equipment

Product Overview

VEIKONG CH530 is a high-performance vector AC drive specially developed for cranes, hoists and other lifting equipment. It integrates professional lifting functions including brake sequence control, trolley and gantry anti-sway control, zero-servo protection, intelligent anti-slip control, light-load speed increase and heavy-load speed reduction.

The CH530 supports asynchronous motors and permanent magnet synchronous motors. Its V/F control, sensorless vector control and closed-loop vector control modes allow it to meet different requirements for lifting, travelling, slewing and positioning applications.

With a power range from 0.75kW to 710kW and a wide three-phase input voltage range of 380V to 480V, the CH530 provides a reliable and flexible drive solution for general cranes, port cranes, construction cranes and mining hoists.

Key Advantages

1. Professional Brake Sequence Control

The CH530 releases or applies the mechanical brake only after the required output frequency and current conditions are reached. Adjustable brake delays help ensure safe and smooth starting and stopping.

Under closed-loop vector control, the drive can output pre-torque before releasing the brake, helping reduce load slipping and mechanical shock.

2. Integrated Anti-sway Control

The built-in anti-sway algorithm helps reduce load swing during trolley and gantry travelling. This supports safer material handling, shorter positioning time and improved operating efficiency.

3. Strong Low-speed Torque and Anti-slip Control

The intelligent anti-slip algorithm provides up to 150% starting torque at 0Hz under closed-loop vector control. It helps prevent the load from slipping during lifting and lowering and supports stable low-speed operation.

4. Zero-servo Safety Protection

If the mechanical brake fails to close in time or the braking force is insufficient, the drive can detect motor shaft movement and activate the zero-servo function. This helps hold the load or travelling mechanism in position while triggering an alarm.

5. Automatic Speed Adjustment According to Load

The CH530 supports constant-power operation. It can automatically increase speed under light-load conditions to improve efficiency and reduce speed under heavy-load or overload conditions to enhance operational safety and extend equipment service life.

6. Smooth Acceleration and Deceleration

Linear and S-curve acceleration and deceleration are supported, with four independently adjustable acceleration and deceleration time groups. This allows the drive to match the operating characteristics of hoisting, travelling and tower crane slewing mechanisms.

7. Easy Motor Commissioning

The one-key motor auto-tuning function identifies motor and mechanical parameters, making it easier to match third-party asynchronous, synchronous and cone motors while reducing commissioning time.

8. Compact Design and Braking Solution

The compact structure reduces installation space and simplifies control cabinet layout.

Models from 0.75kW to 90kW are available with built-in braking units. Models from 110kW to 710kW support external braking units. Brake resistors can be selected according to the hoisting or travelling mechanism and braking duty requirements.

9. Flexible Communication and Expansion

Standard communication:

• Modbus RS485

Optional communication:

• CANopen

• Modbus TCP

• PROFINET

• EtherCAT

Optional expansion accessories:

• Incremental encoder PG card

• Frequency divider PG card

• Resolver PG card

• I/O expansion card

• Dual-display LED keypad

• LCD keypad

10. Reliable Design for Industrial Environments

The CH530 adopts an independent air duct, high-airflow cooling fan and automatic conformal coating process. These features help improve heat dissipation, reduce dust-related risks and enhance long-term operational reliability.

Technical Specifications

Product series: CH530
Product type: Crane and hoisting dedicated variable frequency drive
Input voltage: Three-phase 380V-480V
Allowable voltage fluctuation: -15% to +10%
Input frequency: 50Hz or 60Hz, allowable fluctuation ±5%
Power range: 0.75kW-710kW
Maximum output voltage: 0 to input voltage
Output frequency range: 0-500Hz
Overload capacity: 150% rated output current for 60 seconds
Motor control methods: V/F control, sensorless vector control and closed-loop vector control
Operation modes: Speed control and torque control
Speed regulation range: 1:100 in V/F, 1:200 in SVC and 1:1000 in VC
Speed control accuracy: ±0.5% in V/F, ±0.2% in SVC and ±0.02% in VC
Starting torque: 150% at 0.5Hz in V/F, 150% at 0.25Hz in SVC and 150% at 0Hz in VC
Acceleration/deceleration: Linear and S-curve, four adjustable time groups
Standard keypad: LED digital keypad
Optional keypads: Dual-display LED keypad and LCD keypad
Protection class: IP20
Cooling method: Forced-air cooling
Ambient temperature: -10°C to +40°C without derating; maximum 50°C with derating
Humidity: Below 95% RH, non-condensing
Installation: Wall-mounted, floor-standing cabinet or through-wall installation
Warranty: 24 months

Typical Applications

The VEIKONG CH530 is suitable for:

• Overhead cranes

• Gantry cranes

• Quay cranes

• Yard cranes

• Tower cranes

• Construction hoists

• Mine hoists

• Electric hoists

• Winches

• Port lifting machinery

• Workshop material-handling cranes

• Lifting, travelling, trolley and slewing mechanisms

Why Choose VEIKONG?

• Professional lifting control functions

• Strong low-speed torque performance

• Flexible motor compatibility

• Wide power range from 0.75kW to 710kW

• Multiple communication and encoder options

• Compact structure and flexible braking solutions

• 24-month warranty

• Professional pre-sales selection and after-sales technical support

• OEM and ODM services available

For model selection, please provide the following information:

1. Motor rated power

2. Motor rated voltage and current

3. Motor type

4. Hoisting, travelling, trolley or slewing mechanism

5. Required braking method

6. Encoder type, if used

7. Crane load and working duty

8. Communication requirements

Our technical team will recommend a suitable CH530 model, braking unit, braking resistor and optional expansion card according to your application.
