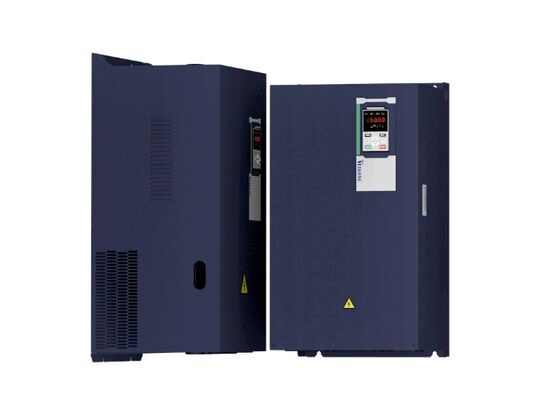

380V Heavy Duty Crane Inverter VEIKONG CH530 with Anti-Sway and Brake Control for 0.75-710kW AC Drive

Product Introduction

The VEIKONG CH530 is a heavy-duty AC drive developed for cranes, electric hoists, winches, and industrial lifting machinery. It combines accurate motor control with dedicated crane functions to provide stable starting, smooth speed regulation, reliable mechanical brake coordination, and enhanced load control.

The CH530 supports three-phase AC 380V-480V power supplies and covers motor power ratings from 0.75kW to 710kW. It can control both asynchronous motors and permanent magnet synchronous motors, making it suitable for new crane systems, equipment upgrades, and replacement projects.

Compared with a conventional general-purpose inverter, the CH530 offers application-specific functions for hoisting, lowering, trolley travel, bridge travel, and slewing mechanisms. Its professional control algorithms help improve crane safety, operating efficiency, and commissioning convenience.

Main Product Highlights

• Dedicated variable frequency drive for cranes and lifting equipment
• Three-phase AC 380V-480V input voltage
• Wide power range from 0.75kW to 710kW
• Professional mechanical brake sequence control
• Up to 150% starting torque at 0Hz with encoder feedback
• Integrated anti-sway control for trolley and bridge travel
• Zero-servo function for additional load-holding protection
• Automatic speed increase under light-load conditions
• Automatic speed reduction under heavy-load conditions
• Smooth linear and S-curve acceleration and deceleration
• Built-in crane parameter macros for quick commissioning
• Support for asynchronous and permanent magnet synchronous motors
• Standard Modbus RTU communication
• Optional industrial Ethernet and fieldbus communication
• Multiple encoder and I/O expansion options
• 24-month warranty and professional technical support

Product Features

Accurate Mechanical Brake Control

Reliable brake coordination is essential for crane and hoist applications. The CH530 controls the mechanical brake according to the motor current, output frequency, and adjustable timing settings.

Before the mechanical brake is released, the drive can establish the required motor torque. This helps prevent the suspended load from dropping or slipping during startup. During stopping, the drive coordinates motor deceleration and brake application to achieve a smooth and controlled stop.

Multiple brake timing parameters can be adjusted according to the crane structure, motor characteristics, load conditions, and mechanical brake response.

Powerful Heavy-Load Starting Performance

The CH530 provides excellent low-speed torque performance for demanding lifting applications. Under closed-loop vector control, the drive can deliver up to 150% starting torque at 0Hz.

This enables the motor to generate sufficient torque before the mechanical brake is released. It is especially useful for hoists, winches, mining lifting systems, and other equipment that frequently starts with a suspended load.

Anti-Slip Control for Hoisting Safety

The built-in anti-slip algorithm helps prevent unexpected load movement during lifting and lowering. The drive maintains stable motor torque during low-speed operation, startup, and direction changes.

This function reduces the risk of load slipping caused by insufficient starting torque or incorrect coordination between the motor and mechanical brake.

Integrated Anti-Sway Technology

Load swing can reduce crane efficiency and make accurate positioning difficult. The CH530 includes an anti-sway control function for trolley and bridge travel mechanisms.

By optimizing the acceleration and deceleration process, the drive helps reduce suspended-load oscillation. This allows the operator to position the load more quickly and reduces unnecessary forward and reverse adjustments.

Zero-Servo Load-Holding Function

If the mechanical brake fails to close correctly or cannot provide enough holding force, the motor shaft may begin to rotate. The CH530 can detect this movement and activate the zero-servo function.

The drive generates holding torque to help maintain the current position of the load or trolley. At the same time, an alarm can be triggered to notify the operator of the abnormal condition.

Automatic Light-Load Speed Increase

When the actual load is lower than the rated load, the CH530 can automatically increase the operating speed to shorten the working cycle and improve handling efficiency.

This function is useful for cranes that frequently operate with different load levels. It enables faster operation under light-load conditions without requiring repeated manual speed adjustments.

Automatic Heavy-Load Speed Reduction

When a heavy load or overload condition is detected, the drive can automatically reduce the operating speed. This helps protect the motor, inverter, gearbox, mechanical brake, and other transmission components.

The combination of light-load speed increase and heavy-load speed reduction allows the crane to operate efficiently while maintaining reliable load control.

Smooth Speed Control

The CH530 supports both linear and S-curve acceleration and deceleration. Four groups of acceleration and deceleration times can be configured for different crane movements.

Smooth speed transitions help reduce mechanical impact during starting, stopping, and direction changes. They can also reduce load swing and extend the service life of the gearbox, coupling, wire rope, wheels, and mechanical structure.

Multiple Crane Control Macros

Pre-programmed crane parameter macros are integrated into the CH530. These macros provide a convenient starting point for configuring hoisting, trolley travel, bridge travel, and tower crane slewing systems.

The commissioning engineer can select the relevant application macro and then adjust the motor and control parameters according to the actual equipment.

Flexible Motor Control Options

The CH530 supports V/F control, sensorless vector control, and closed-loop vector control with encoder feedback.

V/F control is suitable for applications with basic speed-control requirements. Sensorless vector control provides improved torque and speed performance without an encoder. Closed-loop vector control offers more accurate speed and torque control for demanding hoisting applications.

Typical Applications

The VEIKONG CH530 can be used in a wide range of lifting and material-handling equipment, including:

• Electric wire-rope hoists
• Chain hoists
• Industrial winches
• Overhead cranes
• Bridge cranes
• Gantry cranes
• Tower cranes
• Port cranes
• Container-handling cranes
• Construction lifting systems
• Mining hoists
• Metallurgical cranes
• Workshop cranes
• Warehouse material-handling equipment
• Trolley and bridge travel mechanisms
• Crane slewing mechanisms

Application Advantages

For Hoisting Mechanisms

The CH530 provides high starting torque, professional brake control, anti-slip protection, and stable low-speed operation. These functions help achieve safe and smooth lifting and lowering.

For Trolley Travel

The drive provides smooth acceleration, accurate speed regulation, and anti-sway control. This helps reduce load swing and improve horizontal positioning.

For Bridge and Gantry Travel

Multiple speed settings, S-curve control, and synchronized acceleration and deceleration help improve travelling stability and reduce mechanical shock.

For Tower Crane Slewing

The CH530 offers smooth starting, stopping, and direction changes. This helps reduce structural vibration and mechanical impact during slewing operation.

For Winches and Mining Hoists

Closed-loop vector control, high starting torque, and reliable brake coordination provide enhanced control for heavy-load vertical transportation.

Communication and Expansion Options

Modbus RTU communication is included as standard for connection to PLCs, HMIs, and industrial control systems.

The following communication options are available according to project requirements:

• Modbus TCP
• CANopen
• PROFINET
• EtherCAT

Optional incremental encoder cards, resolver cards, communication cards, and I/O expansion modules are also available. These options allow the CH530 to meet different feedback, terminal, networking, and automation requirements.

Braking System Configuration

CH530 models from 0.75kW to 90kW are available with built-in braking units, reducing the number of external components and saving control-cabinet space.

Models from 110kW to 710kW are designed for use with suitable external braking units. The braking resistor and braking unit must be selected according to the motor power, lifting load, deceleration time, operating cycle, and required braking duty.

VEIKONG can assist customers with braking resistor and braking unit selection according to the actual application.

Why Choose VEIKONG?

Specialized Crane Control Solution

The CH530 is developed specifically for lifting equipment and integrates important crane functions into one drive platform.

Experienced Technical Team

The VEIKONG technical and management teams have more than 20 years of experience in industrial drive control and motor applications.

Wide Product Selection

Power ratings from 0.75kW to 710kW are available for small hoists, medium-duty cranes, and large industrial lifting systems.

Reliable Quality Management

VEIKONG applies strict quality-control procedures during product development, component inspection, assembly, functional testing, and final inspection.

Application Support

Our technical team can assist with drive selection, motor matching, wiring, parameter settings, braking system selection, commissioning, and fault analysis.

Flexible Configuration

Different keypads, communication cards, encoder cards, I/O modules, braking units, and braking resistors can be selected according to project requirements.

Global After-Sales Service

VEIKONG provides remote technical support, troubleshooting assistance, and a 24-month product warranty for international customers.
