VEIKONG VFD580 Variable Frequency Drive Replace ABB ACS580 Motor Drive OEM
  • VEIKONG VFD580 Variable Frequency Drive Replace ABB ACS580 Motor Drive OEM
  • VEIKONG VFD580 Variable Frequency Drive Replace ABB ACS580 Motor Drive OEM
  • VEIKONG VFD580 Variable Frequency Drive Replace ABB ACS580 Motor Drive OEM
Place of Origin China
Brand Name Veikong
Certification IEC CE
Model Number VFD580
Minimum Order Quantity 5
Price Negotiable
Packaging Details carton or wooden case
Delivery Time depend on the quantity
Payment Terms T/T, Western Union, MoneyGram, L/C, D/P
Product Details
Name High Level VFD Position Control Position Command Supports Internal Position, Pulse Position Input, CANopen Position Command, EtherCAT Position Command (VFD586); Supports Position Fully Closed Loop Mode
Power Range 0.75kw-710kw Frequency UP To 3000HZ
Voltage 220v 380v OEM YES
High Light

VEIKONG Variable Frequency Drive

,

Variable Frequency Drive OEM

,

OEM High level VFD
Product Description





Company Introduction :

Shenzhen Veikong Electric CO,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter as well as bypass contactor soft starter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management. Veikong is also one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series, which has reached the international advanced standard. The products can
directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD and soft starter industry. Quality is the life of enterprise. Veikong drives keeps following ISO9001 standard to manage and supervise quality. Our products have passed CE certification and other technical approval.


Features:

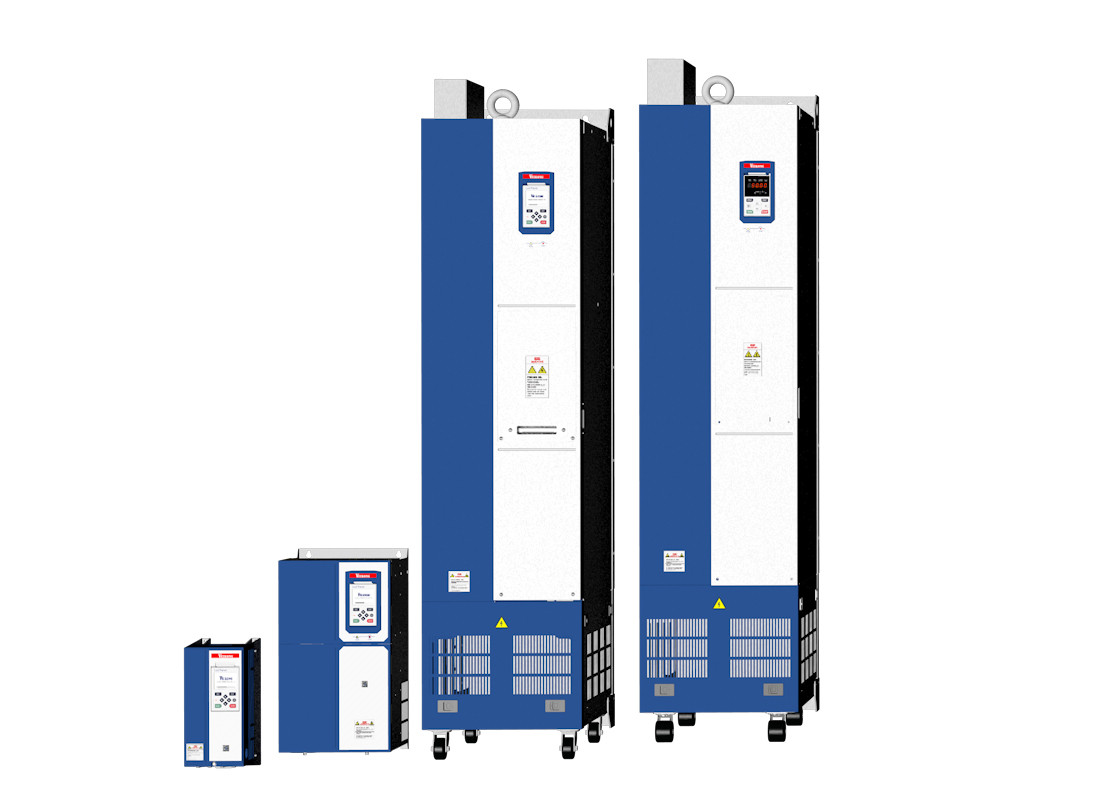

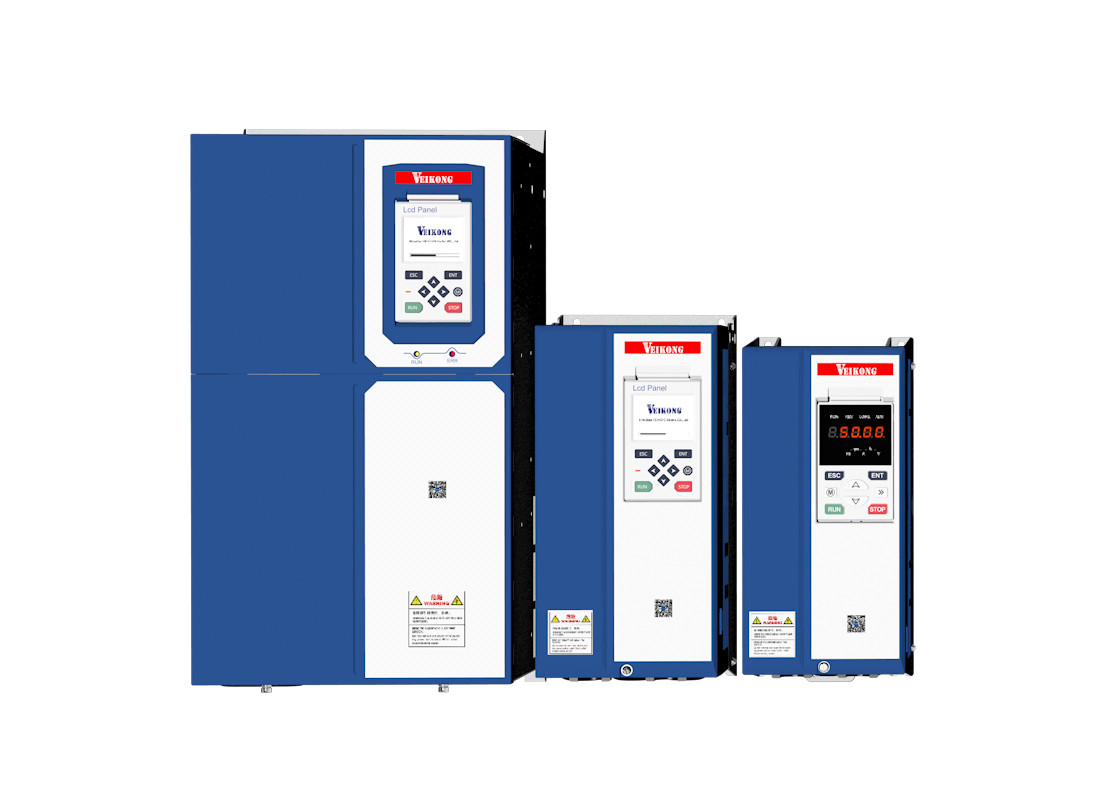

VEIKONG VFD580 is our strongest VFD. it can replace famous brands in many complex applications.
As following is VDF580 features, attachment is VFD580 brochure for your reference.

1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo position control mode.

2. 15kw and above equipped with built-in DC reactor as standard

3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is enternal.

4. 90kw and below equipped with brake circuit short-circuit protection function.

5. Support MODBUS-RTU,CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat

6.Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.

7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84

8. Support LCD keypad, it is easy to monitor and operator.
9. Support STO function

Special VFD high performance frequency inverter for servo motor 0



Technical Speficiation:

Item  Specification
Input terminals Standard:
7 digital input terminals, one of which supports high-speed pulse input up to 50kHz;3 analog input terminals, one supports -10V - 10V input, two supports 0 - 10V voltage input or 0 - 20mACurent input; (VFD586 2 analog inputs, One channel supports -10-10V, and one channel supports 0-10or 0-20mA options)
. 1 motor temperature detection, support PT100, PT1000, KTY84-130 three kinds of thermistor input;SLOT2 expansion:
2 DI digital input terminals (MT580-IOEX1)
Output terminals Standard:
. 2 digital output terminals; 1 of which is a high-speed pulse output terminal (open collector type).supporting square wave signal output from 0 to 50kHz:
2 relay output terminals;2 analog output terminals, 1 0nly supports 0 - 10V voltage output, one supports 0 - 20mA current outputor 0~ 10V voltage output; (VFD586 1 analog output ,Supports 0-10V or 0-20mA options)SLOT2 expansion:
2 digital output terminals (MT580-IOEX1)






Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

180%/0Hz(VC)



Torque control accuracy

 SVC:5Hz within 8%,5Hz above 5% VC:3.0%
Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s



Position control

 The position command supports internal position, pulse position input, CAN open position command, Ether CAT position command (VFD586). Support position full closed loop mode





Why chose VEIKONG?



1. Infineon brand IGBT/Fuji IGBT, enduree temperature 175°C
2. Two-lines LED keypad/LCD kaypad
3. Fan: 70 000 hours using life
4. Capacitor: 50 000 hours using life
5. Input phase lacking protection
6. Output short circuit protection
7. Overvoltage protection
9. 10 000-15 000pcs per month production ability
10. 500pcs stock below 90KW
11. CE ISO certification, TUV SGS authority
12. Strong RD department, can update software
