VFD580 Series New Model with Outlook and High End Standard Variable Frequency Inverters
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD580 |
| Minimum Order Quantity | 50 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 3-8 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15000 per/ month |
Product Details
| Product Series | VFD580 | Adaptable Motor | Both IM And PMSM |
|---|---|---|---|
| Display Choices | New Model LCD/LED | PG Card | Support 6 Types PG Card |
| Voltage | 380V-480V | Brand | Veikong |
| Origin | China | Color | Blue And White |
| Suitable Motor | IM PMSM , Servo Motor And Spindle Motor | Communication | Modbus RS485, Canopen, PN, Ethercat, |
| High Light | High End Variable Frequency Inverters,VFD580 Series Variable Frequency Inverters,VFD580 Series Variable Frequency Drive |
||
Product Description
High End Standard Variable Frequency Inverters VFD580 Series
VEIKONG company introduction
VEIKONG was established in 2014, with a focus on the research and development, as well as overseas sales of frequency converters. Our products are designed to meet the needs of a wide range of applications and scenarios.
We believe that innovation is essential in this industry and we are proud to be at the forefront of technology. We have a team of experienced engineers who are constantly working to improve our products and to develop new solutions for our customers.
Our frequency converters are designed to be efficient and reliable, and we use only the highest quality materials in their production. We understand the importance of sustainability, and our products are designed with energy efficiency in mind.
In addition to our commitment to innovation and sustainable production, we are also dedicated to providing excellent customer service. We have a team of knowledgeable sales representatives who can help our customers find the best products for their needs, and our technical support team is always available to help with any issues or questions.
We are proud to be a global company, with customers in many different countries and regions. Our goal is to continue to be a leader in the frequency converter industry, providing innovative and sustainable solutions to meet the needs of our customers.
Veikong High End Standard VFD580 Series New Model With Brand New Outlook
1. Veikong high end VFD580 series product features
1) Compatible for both IM and PMSM, support speed, torque and position serve.
2) Excellent SVC algorithm, high precision low frequency torque.
3) Support European standard STO function.
4) Plug-in terminals, more user friendly.
5) Standard motor temperature sensor interface, support PT100, PT1000, KTY84.

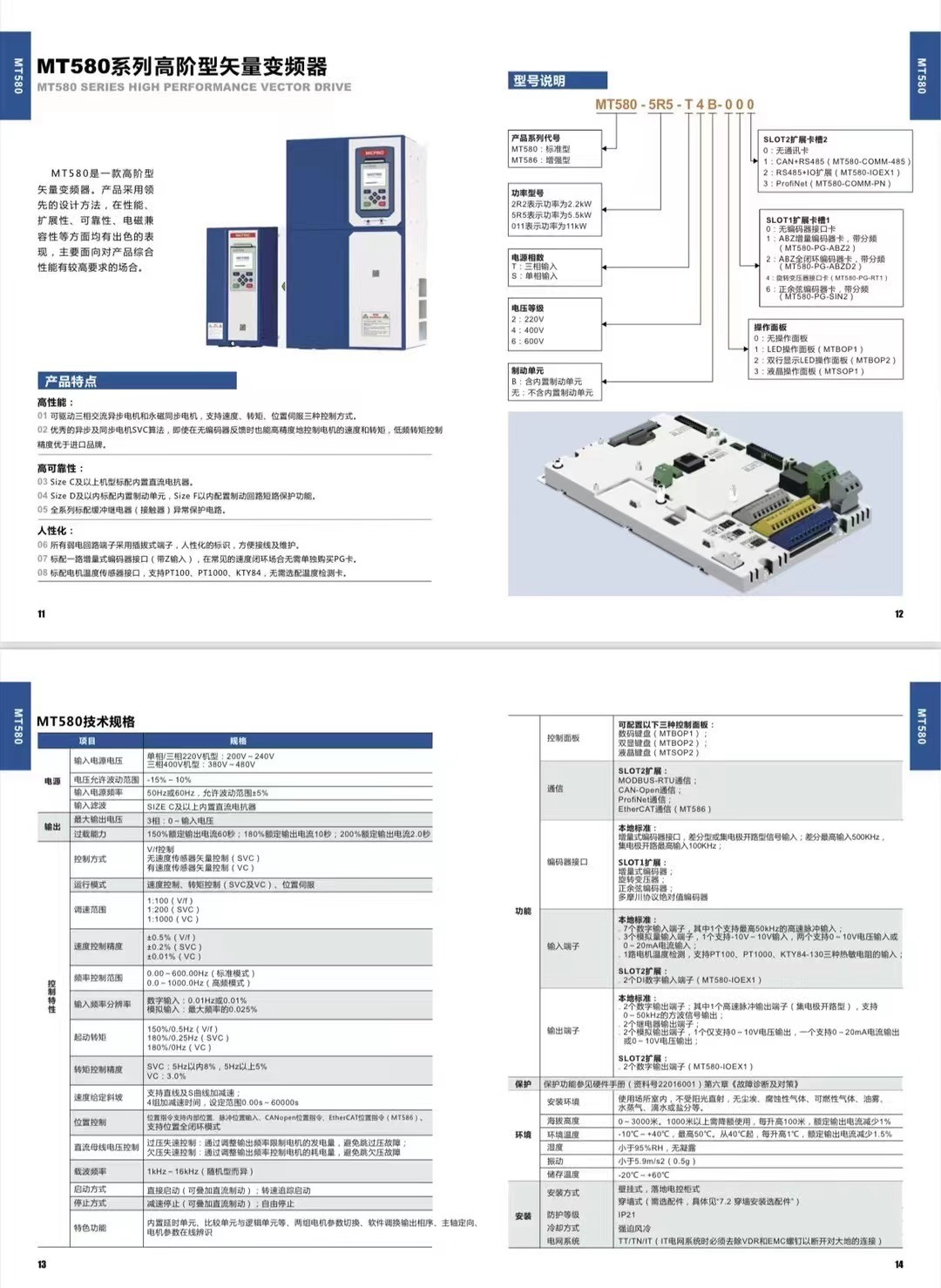

2. VFD580 technical specification
| Item | Specification |
| Operation mode | Speed control, torque control (SVC and VC), position servo |
| Frequency control range | 0.00～600.00Hz(standard) 0.0～1000.0Hz(High frequency) |
| Input frequency resolution | Digital input: 0.01Hz or 0.01% Analog input: 0.025% of maximum frequency |
| Torque control accuracy | SVC:5Hz within 8%,5Hz above 5% VC:3.0% |
| Position control | The position command supports internal position, pulse position input, CANopen position command, EtherCAT position command (MT586). Support position fully closed loop mod |
| Special function | Built-in delay unit, comparison unit and logic unit, etc., two groups of motor parameter switching, software switching output phase sequence, spindle orientation, online identification of motor parameters |

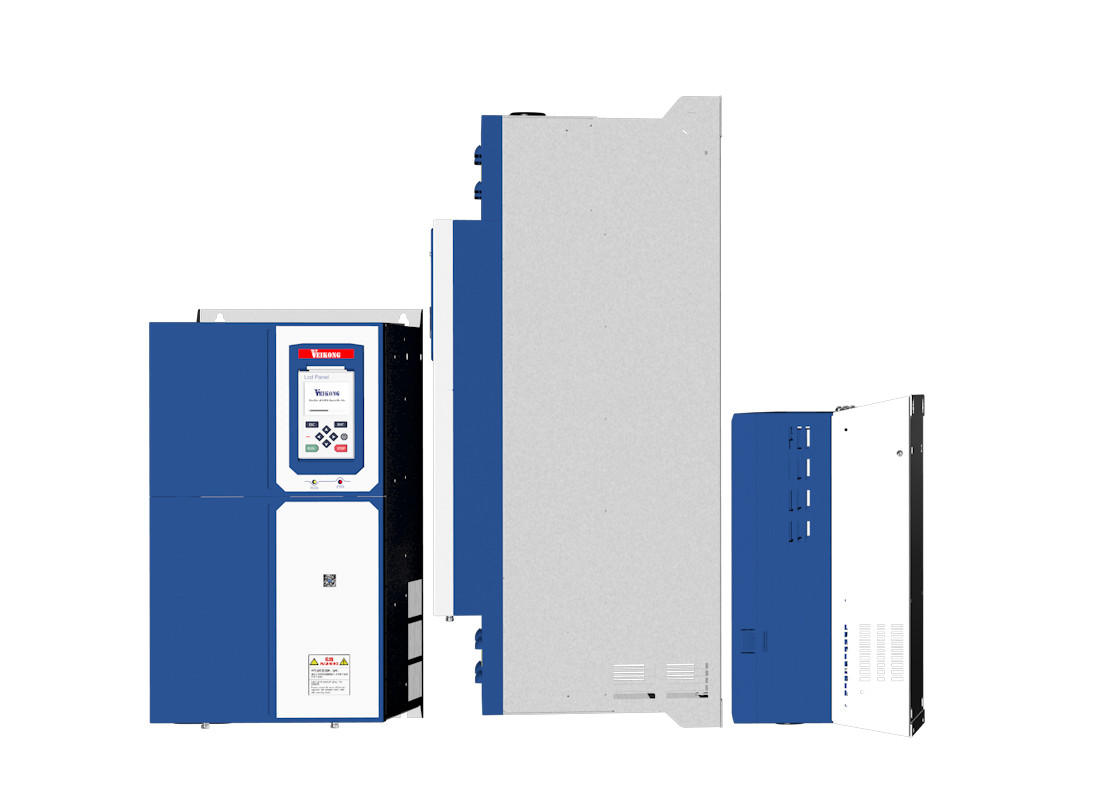

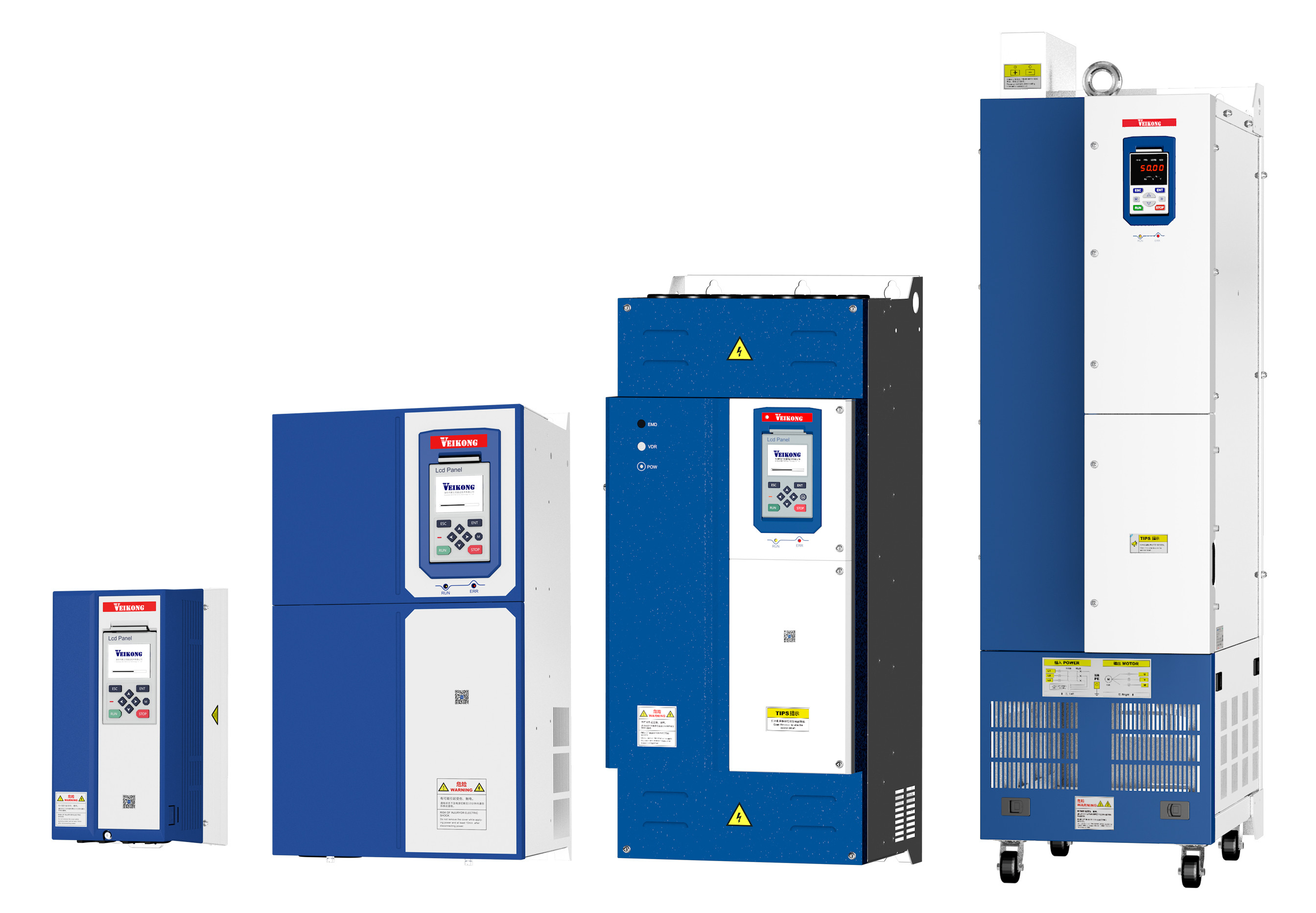

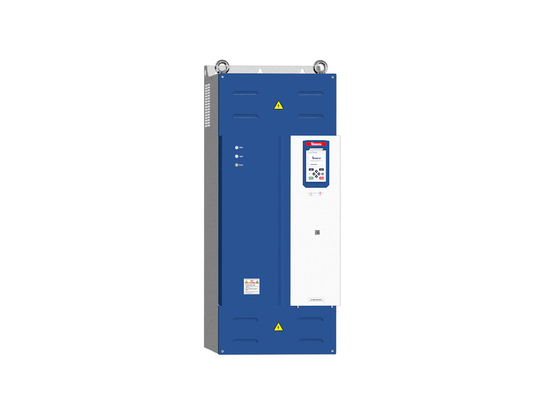

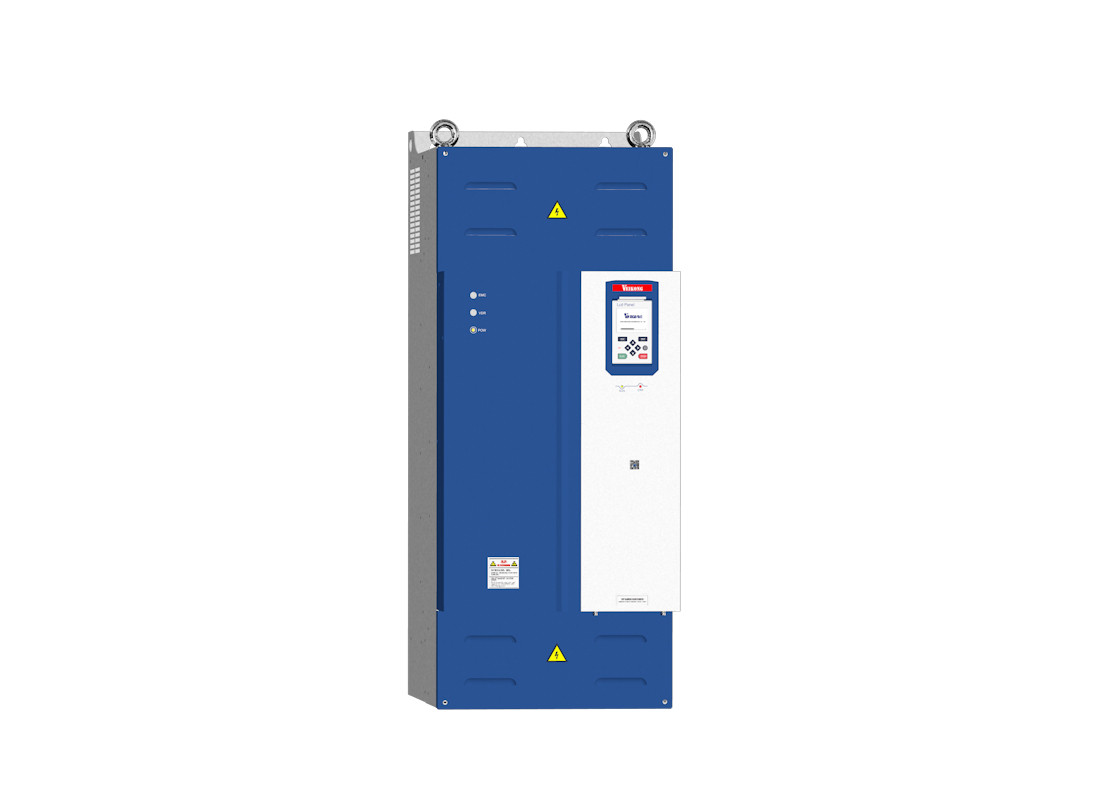

3. VFD580 series product pic and inner board
3. New product introduction
The VFD580 is a high-end variable frequency drive. The product adopts the leading design concept, mainly for occasions with high requirements for the comprehensive performance of the product. Compared to traditional frequency converters, VFD580 has the following features:
1. Drive three-phase AC asynchronous motor and three-phase AC permanent magnet synchronous motor, and supports speed, torque and position servo control.
2. Excellent SVC algorithms for asynchronous and synchronous motors, enable high-precision motor speed and torque control even without encoder feedback.
3. 15kW and above are equipped with a built-in DC reactor as standard.
4. The built-in brake unit (45kW~90kW optional) is equipped as standard within 37kW, and the brake circuit short circuit detection function is equipped.
5. All weak current circuit terminals adopt plug-in terminals, humanized identification, convenient wiring and maintenance.
6. An incremental encoder interface with Z input is standard, eliminating the need to purchase a separate PG card in common closed-loop speed applications.
7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84, no need for optional temperature detection card.
8. The whole series is equipped with buffer relay (contactor) abnormal protection circuit, which can effectively prevent accidents such as fire caused by component damage.
