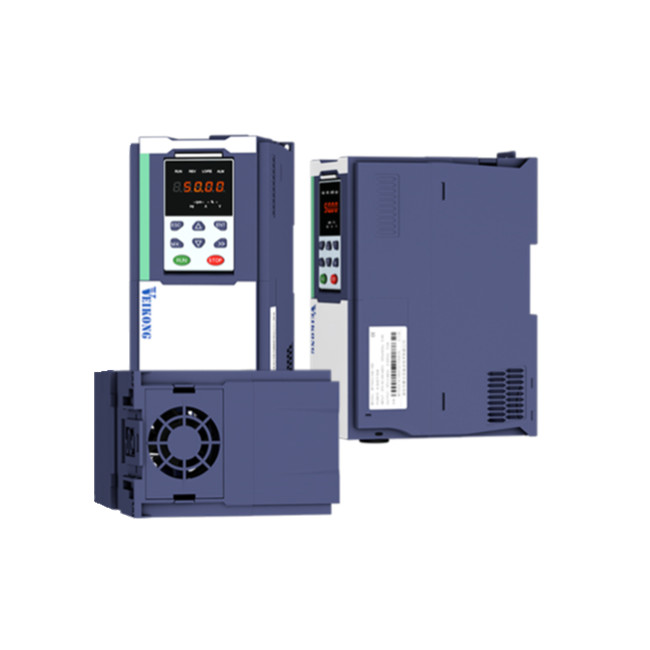

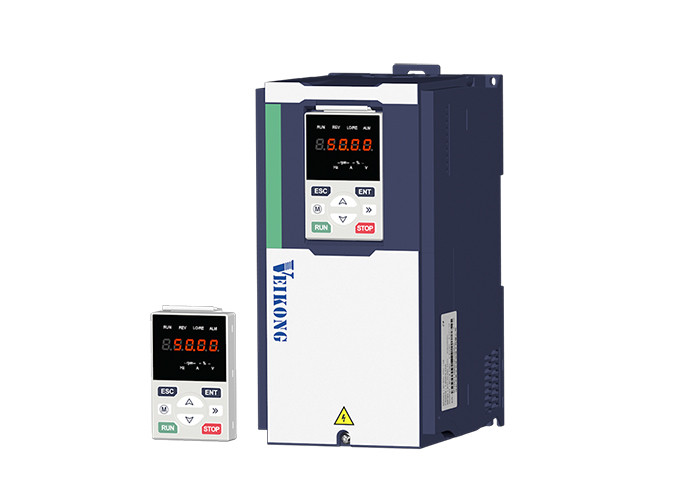

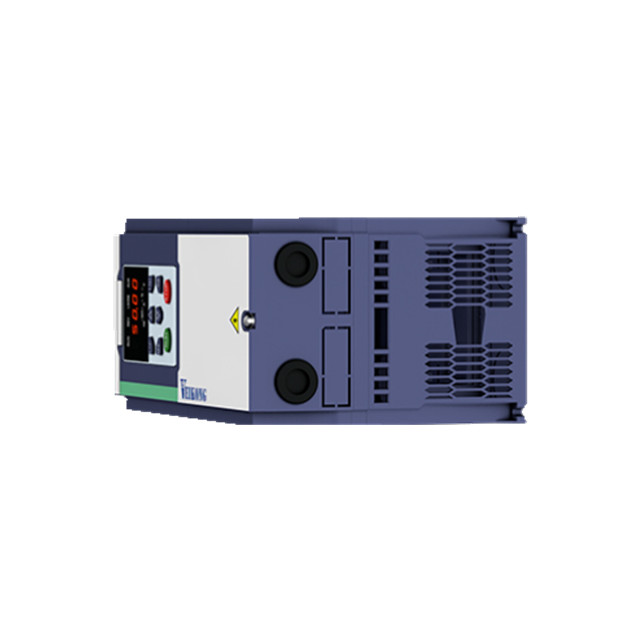

Veikong LCD Keypad with Macro Application and Shuttle Keypad Optional Variable Frequency Drive
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500
Minimum Order Quantity 30 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 3-8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Special Software PC Tool Communication OEM Service Customize Special Inverter To Customers
Brand Veikong Frequency Range 50 Or 60HZ For Options
Voltage Range 380V-480V Or 220V-240V Product Name Variable Frequency Inverters
Protection Level IP20/IP21 Color Dark Blue
Inner Marterial High Performance IGBT Special Function STO And Fire Mode
High Light

LCD keypad VFD Variable Frequency Drive

,

Construction Lifting VFD Variable Frequency Drive

,

Veikong ac motor inverter

Product Description

High Performance VFD Variable Frequency Drive AC Drive Construction Lifting



1. Main of highlight

1) Independent outlook and special software and hardware

2) Strong logical function and built-in break unit optional

3) High torque in low speed,fast response

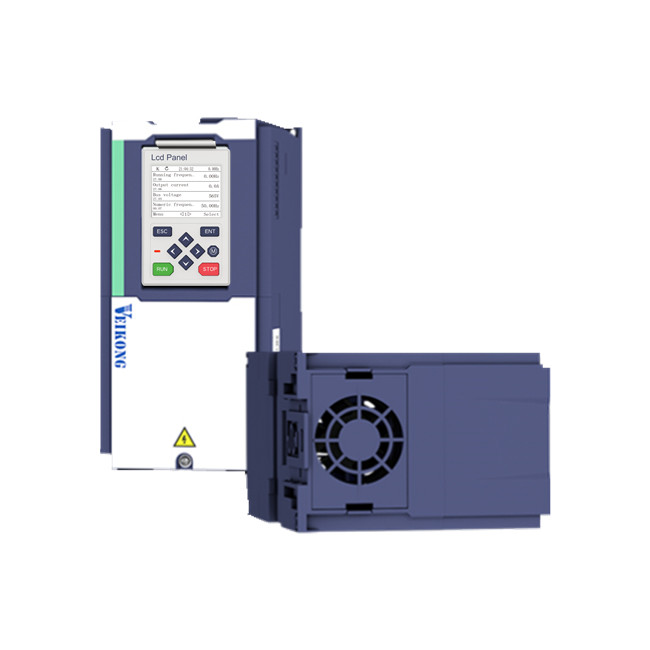

4) LCD keypad with macro application and shuttle keypad optional

5) Rich expansion card and complete protection



2.Veikong high performance VFD500 series technical data

Item Specification
Input Input voltage

1 phase or 3 phase: 200V-240V

3 phase 380V-480V: 380V-480V

Allowed Voltage fluctuation range -15%~10%
Input Voltage 50HZ or 60HZ functuation less than 5%
Output Output Voltage 3 phase: 0~input voltage
Overload capacity

General purpose application: 60s for 150% of the rated current

Light load application: 60s for 120% of the rated current

Control Control mode

V/F control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card(VC)

Operating mode Speed control Torque control(SVC and VC)
Speed range

1:200(V/F)

1:200(SVC)

1:1000(VC)

Speed control accuracy

+-0.5%(V/F)

+-0.2%(SVC)

+-0.02%(VC)

Speed response

5HZ(V/F)

20HZ(SVC)

50HZ(VC)

frequency range

0~600HZ(V/F)

0~200HZ(SVC)

0~400HZ(VC)

Input frequency resolution

Digital setting:0.01hz

Analog setting: maximum frequency x 0.1%

Startup torque

150%/0.5HZ(V/F)

180%/0.25HZ(SVC)

200%/0HZ(VC)

Torque control accuracy

SVC: within 5HZ 10% above 5HZ 5%

VC: 3%

VF curve

V/F curve type: straight line, multipoint, power function, V/F separation

Torque boost support: Automatic torque boost(factory setting), manual torque boost

Frequency giving ramp

Support linear and S surve acceleration and deceleration

4 groups of acceration and deceleration time, setting range 0s~60000s

DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault

Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to aviod yaw fault

VdcMax Control: Limit the amount of the power generated by the motor by adjusting the output frequency to avoid overvoltage trip

VdcMin Contorl: Control the consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency 1kHZ~12kHZ(Varies depending on the type)
Startup mehod

Direct start( can be superimposed DC brake)

Speed tracking start

Stop method

Deceleration stop(can be superimposed DC braking)

Free to stop

Maincontrol function Jog control, droop control, up to 16 speed operation, dangerous sopeed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wakeup function, bulit in delay unit, built in simple PLC logic, virtual input and output terminals, built in comarison unit, software swap output wiring, terminals UP/DOWM
  Keypad LED Digital keyboard and LCD keypad(option)





3. Veikong high performance VFD500 series can be used in many applications.

For example:

1) hoisting industry, petroleum industry, chemical industry

2) power industry, textile industry, iron and steel industry

3) heating system, winding machine, pumps, compresssor

4) conveyor belt, machine tool industry, injection molding machine

If there are any questions, please dont hesitate to contact us!





4. Veikong team are dedicated customer's requirements, so they could buy best products and high-qualtity service. Each year we put 15% of the income to update products so that we are always competitive  compared with other competitor. These are some feedbacks from our clients which you can check here.
