VEIKONG Special Use 7.5kw 10 Hp Vfd Single Phase Input To Three Phase Converter
  • VEIKONG Special Use 7.5kw 10 Hp Vfd Single Phase Input To Three Phase Converter
  • VEIKONG Special Use 7.5kw 10 Hp Vfd Single Phase Input To Three Phase Converter
  • VEIKONG Special Use 7.5kw 10 Hp Vfd Single Phase Input To Three Phase Converter
  • VEIKONG Special Use 7.5kw 10 Hp Vfd Single Phase Input To Three Phase Converter
Place of Origin CHINA
Brand Name VEIKONG
Certification CE ROHS
Model Number VFD200A
Minimum Order Quantity 1
Price negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 15000pcs per Month
Product Details
Product Name 220v Input 380v Output Converter Power 7.5kw/10hp
Frequency 0-3200hz Startup Torque 0.5Hz/150%（SVC）；0Hz/180%（FVC）
Speed Range 1: 200 (SFVC) Voltage 220v Input 380v Output
Color Gray Design Original
Place Of Origin China Cooling Method Forced Air Cooling
High Light

VEIKONG 10 hp single phase to 3 phase vfd

,

VEIKONG 7.5 kw vfd
Product Description


7.5kw 10hp inverter 220V input 380v output variable frequency drive


Technical features
1, Using DSP as the core of control unit to achieve high-speed and high-performance control
2, Motor parameter self-learning, intelligent setting to the optimal control model
3, High performance IPM module,protection function such as under voltage, overcurrent, overtemperaature,over the ground short circuit etc.
4, The unique EMC design minimizing the pollution to power.

Capacity range
Power range: 0.75-11kw power range
Frequency range: 0.00-400.00HZ
Voltage level:single phase 220V/ three phase 380v

Application industry
Medicine, food, packaging, engraving, washing and other industries Machinery equipment, a variety of small-scale machinery equipment.

Product details

Anti-corrosion paint protection circuit
Anti-corrosion paint processing
Prolong the service life
Superior insulation moisture-proof
Prevent electric leakage shock-proof dust proof
Corrosion resistance aging corona resistance,etc

Function of automatic voltage regulator (AVR)
Three-phase high precision automatic ac voltage stabilizer
With functions of automatic voltage regulation, when the grid voltage
Plus or minus 15% change, can automatically maintain a constant output voltage

Multiple defensive function
Over-voltage protection, low-voltage protection, over current protection, over-load protection
Over-heating protection, loss of speed protection,olse phase protection
External fault,communication error, PID feedback signal abnormalities, PG failures, current detection
fault , motor self-learning fault, EEPROM operation fault, Such as multiple protection mechanism


VFD200A technical data:
Item Specifications












Standard functions

 Maximum frequency Vector control:0～500Hz V/F control: 0～500Hz



Carrier frequency

 0.5kHz～16kHz (The carrier frequency is automatically adjusted based on the load features.)

Input frequency

resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.025%



Control mode

Sensor-less flux vector control (SFVC)

Closed-loop vector control (CLVC) (+PG Card) Voltage/Frequency (V/F) control
Startup torque 0.5Hz/150%(SVC)；0Hz/180%(FVC)
Speed range 1:100 (SVC) 1:1000 (FVC)
Speed stability accuracy ±0.5%(SVC) ±0.02%(FVC)
Torque control accuracy ±5%(FVC)




Overload capacity

G type: 60s for 150% of the rated current, 3s for 180% of the rated current

P type: 60s for 120% of the rated current, 3s for 150% of

the rated current



Torque boost

Auto boost;

Manual boost: 0.1%~30.0%

Standard functions




V/F curve

Straight-line V/F curve Multi-point V/F curve

N-powerV/F curve (1.2-power, 1.4-power, 1.6-power, 1.8- power, square)
V/F separation 2 types: complete separation; half separation




Acceleration/deceleration curve

Straight-line ramp S-curve ramp

Four groups of acceleration/deceleration time with the range of 0.00s~65000s




DC braking



DC braking frequency: 0.00 Hz ~ maximum frequency Braking time: 0.0~100.0s

Braking trigger current value: 0.0%~100.0%



JOG control



JOG frequency range: 0.00Hz~50.00 Hz

JOG acceleration/deceleration time: 0.00s~65000s
Built-in PLC, multiple speeds



It realizes up to 16 speeds via the simple PLC function or combination of DI terminal states
Built-in PID It realizes closed loop control system easily.
Auto voltage regulation (AVR)



It can keep constant output voltage automatically when the mains voltage fluctuation.
Overvoltage/ Over current stall control

The current and voltage are limited automatically during the running process so as to avoid frequently tripping due

to overvoltage/over current.

Rapid current limit

function

 It can auto limit running current of frequency inverter to avoid frequently tripping.




Torque limit and control

(Excavator characteristics) It can limit the torque automatically and prevent frequently over current tripping during the running process.

Torque control can be implemented in the VC mode.



Item specification
Individualized functions High performance Control of asynchronous motor is implemented through the




Instant power off not stop

 The load feedback energy compensates the voltage reduction so that the frequency inverter can continue to run for a short time.




Rapid current limit



To avoid frequently over current faults of the frequency inverter.
  Virtual IO Five sets of virtual input and output for simple logic control




Timing control



Time range: 0.0~6500.0 minutes
  Multi-motor switching Four sets of motor parameters for four motor switching control




Multiple communication protocols



Currently supports communication bus via Modbus-RTU and later will support PROFIBUS-DP, CANopen, etc.
  Motor overheat protection The optional I/O extension card enables AI3 to receive the motor temperature sensor input (PT100, PT1000) so as to




Multiple encoder types



It supports incremental encoder and

encoders such as differential encoder, open-collector encoder, resolver, UVW encoder, and SIN/ COS encoder.
  Running command key panel








Frequency giving



There are 10 kinds frequencygiving: digital setting, analog voltage setting, analog current setting, pulse setting, serial communication port setting, panel potentiometer, etc.

You can switch between these giving in various ways.

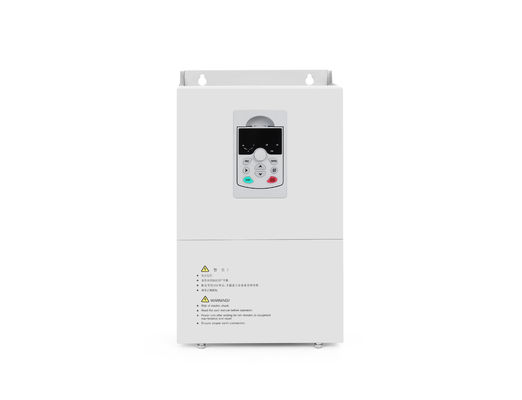

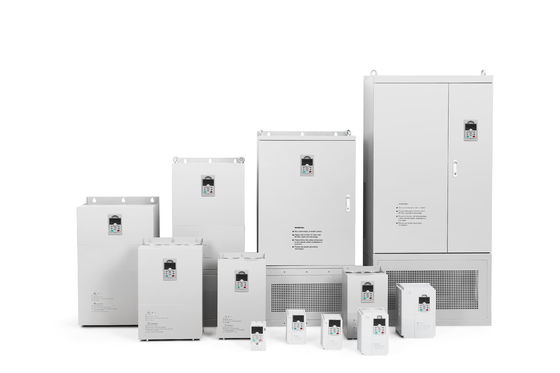

VFD200A picture:
VEIKONG Special Use 7.5kw 10 Hp Vfd Single Phase Input To Three Phase Converter 0VEIKONG Special Use 7.5kw 10 Hp Vfd Single Phase Input To Three Phase Converter 1VEIKONG Special Use 7.5kw 10 Hp Vfd Single Phase Input To Three Phase Converter 2

Connect wire diagram:
VEIKONG Special Use 7.5kw 10 Hp Vfd Single Phase Input To Three Phase Converter 3
