High-Speed and High-Performance Control 11kw 15hp Converter 220V Input 380v Output VFD
Place of Origin CHINA
Brand Name VEIKONG
Certification CE ROHS
Model Number VFD200A
Minimum Order Quantity 1
Price negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 15000pcs per Month
Product Details
Product Name 220v Input 380v Output Frequency Drive Power 11kw/15hp
Frequency 0-3200hz Control Mode Vf/vector Control
Startup Torque 0.5Hz/150%(SVC);0Hz/180%(FVC) Torque Control Accuracy ±5%(FVC)
Color Light Gray Brand Name VEIKONG
Warranty 18 Months Or Negotiable MOQ Negotiable
OEM Service Support With Certain MOQ
High Light

15hp Vfd Frequency Converter

,

11kw Vfd Frequency Converter

,

15 hp single phase to 3 phase vfd

Product Description

11kw 15hp converter 220V input 380v output vfd variable frequency drive


Technical features
1, Using DSP as the core of control unit to achieve high-speed and high-performance control
2, Motor parameter self-learning, intelligent setting to the optimal control model
3, High performance IPM module,protection function such as under voltage, overcurrent, overtemperaature,over the ground short circuit etc.
4, The unique EMC design minimizing the pollution to power.

Capacity range
Power range: 0.75-11kw power range
Frequency range: 0.00-400.00HZ
Voltage level:single phase 220V/ three phase 380v

Product details
High speed high performance control DSP core control unit Simple PLC Parameter auto-tuning
Low frequency high torque strong performance of vector control

Strong and weak electricity,built-in 485
Separately strong and weak electricity, reduction interference from high voltage part of weak current
Programming logic controller for more than 485 section frequency automatic control

Avago photoelectric coupler Adopted USA Avago company
Photoelectric coupler that was not in the power of optical coupling isolation with high stability , high reliability


VFD200A technical data:
Item Specifications












Standard functions

Maximum frequency Vector control:0~500Hz V/F control: 0~500Hz



Carrier frequency

0.5kHz~16kHz (The carrier frequency is automatically adjusted based on the load features.)

Input frequency

resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.025%



Control mode

Sensor-less flux vector control (SFVC)

Closed-loop vector control (CLVC) (+PG Card) Voltage/Frequency (V/F) control

Startup torque 0.5Hz/150%(SVC);0Hz/180%(FVC)
Speed range 1:100 (SVC) 1:1000 (FVC)
Speed stability accuracy ±0.5%(SVC) ±0.02%(FVC)
Torque control accuracy ±5%(FVC)




Overload capacity

G type: 60s for 150% of the rated current, 3s for 180% of the rated current

P type: 60s for 120% of the rated current, 3s for 150% of

the rated current



Torque boost

Auto boost;

Manual boost: 0.1%~30.0%


Standard functions




V/F curve

Straight-line V/F curve Multi-point V/F curve

N-powerV/F curve (1.2-power, 1.4-power, 1.6-power, 1.8- power, square)

V/F separation 2 types: complete separation; half separation




Acceleration/deceleration curve

Straight-line ramp S-curve ramp

Four groups of acceleration/deceleration time with the range of 0.00s~65000s




DC braking



DC braking frequency: 0.00 Hz ~ maximum frequency Braking time: 0.0~100.0s

Braking trigger current value: 0.0%~100.0%



JOG control



JOG frequency range: 0.00Hz~50.00 Hz

JOG acceleration/deceleration time: 0.00s~65000s

Built-in PLC, multiple speeds



It realizes up to 16 speeds via the simple PLC function or combination of DI terminal states

Built-in PID It realizes closed loop control system easily.
Auto voltage regulation (AVR)



It can keep constant output voltage automatically when the mains voltage fluctuation.

Overvoltage/ Over current stall control

The current and voltage are limited automatically during the running process so as to avoid frequently tripping due

to overvoltage/over current.

Rapid current limit

function

It can auto limit running current of frequency inverter to avoid frequently tripping.




Torque limit and control

(Excavator characteristics) It can limit the torque automatically and prevent frequently over current tripping during the running process.

Torque control can be implemented in the VC mode.



Item specification
Individualized functions High performance Control of asynchronous motor is implemented through the



Instant power off not stop

The load feedback energy compensates the voltage reduction so that the frequency inverter can continue to run for a short time.



Rapid current limit



To avoid frequently over current faults of the frequency inverter.

Virtual IO Five sets of virtual input and output for simple logic control



Timing control



Time range: 0.0~6500.0 minutes

Multi-motor switching Four sets of motor parameters for four motor switching control



Multiple communication protocols



Currently supports communication bus via Modbus-RTU and later will support PROFIBUS-DP, CANopen, etc.

Motor overheat protection The optional I/O extension card enables AI3 to receive the motor temperature sensor input (PT100, PT1000) so as to



Multiple encoder types



It supports incremental encoder and

encoders such as differential encoder, open-collector encoder, resolver, UVW encoder, and SIN/ COS encoder.

Running command key panel







Frequency giving



There are 10 kinds frequencygiving: digital setting, analog voltage setting, analog current setting, pulse setting, serial communication port setting, panel potentiometer, etc.

You can switch between these giving in various ways.

run



Auxiliary frequency giving



There are 10 kinds auxiliary frequency giving. It can implement tiny tuning of auxiliary frequency and frequency synthesis.







Input terminal

Standard:

5 digital input (DI) terminals, one of which supports up to 100 kHz high-speed pulse input

2 analog input (AI) terminals, support 0V~10 V voltage input or 0 mA~20 mA current input


  Output terminal

Standard

1 high-speed pulse output terminal (open-collector) that supports 0–100 kHz square wave signal output

1 digital output (DO) terminal 1 relay output terminal

2 analog output (AO) terminals, support0 mA~20 mA current output or 0 V~10 V voltage output.

Expanding capacity:

Item Specification
Display



LED display



It displays the parameters.



Parameters copy



It can implement copy parameters function by PC software.





Key locking and function selection





It can lock the keys partially or completely and define thefunction range of some keys so as to prevent misoperation.





Protection mode

Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection, under-voltage protection, overheat protection and overload protection, etc.
Environment



Installation location

Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.



Altitude



Lower than 1000 m



Ambient temperature

-10°C~ +40°C (derated if the ambient temperature is between 40°C and 50°C)



Humidity



Less than 95%RH, without condensing

  Vibration Less than 5.9 m/s2 (0.6 g)




Storage temperature



-20°C ~ +60°C





VFD200A picture:

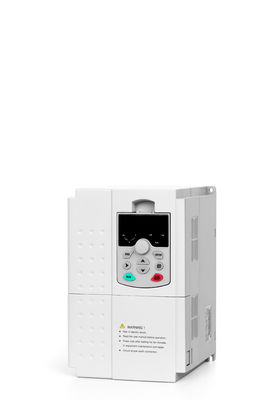

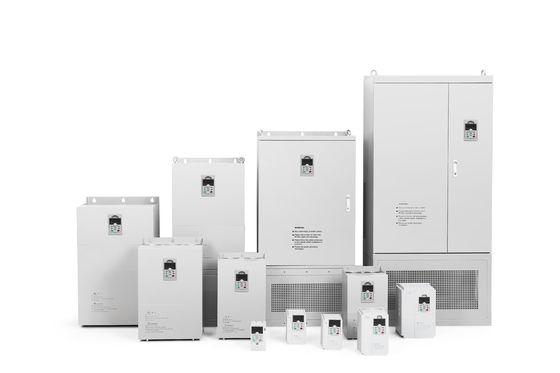

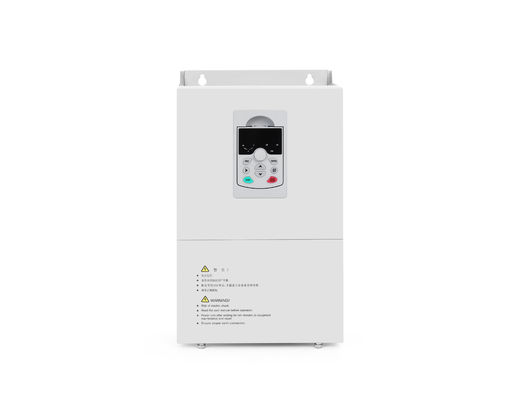

High-Speed and High-Performance Control 11kw 15hp Converter 220V Input 380v Output VFD 0High-Speed and High-Performance Control 11kw 15hp Converter 220V Input 380v Output VFD 1High-Speed and High-Performance Control 11kw 15hp Converter 220V Input 380v Output VFD 2

Connect wire diagram:
High-Speed and High-Performance Control 11kw 15hp Converter 220V Input 380v Output VFD 3
