Place of Origin | China |
---|---|
Brand Name | VEIKONG |
Certification | CE |
Model Number | VFD500 |
Minimum Order Quantity | 1 |
Price | Negotiable |
Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
Delivery Time | 3 days, depend on the order quantity |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 15000pcs per Month |

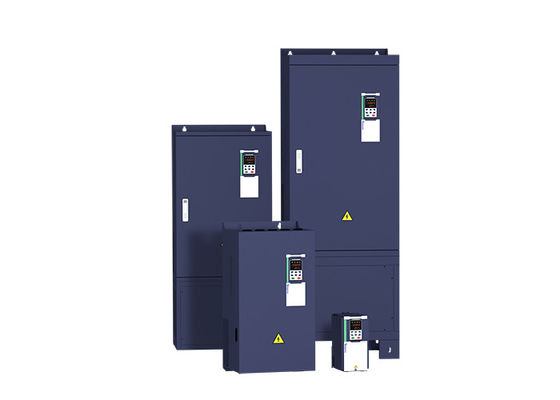

Product Name | 380v Inverter | Power | 11KW/15KW |
---|---|---|---|
Communication | Modbus485/profinet/canopen | Load | Light/heavy Load |
Type | 380v/220v Single Phase Three Phase | Application | General Application |
Highlight | 15kw Vfd Inverter,11kw Vfd Inverter 3 Phase,7.5kw Vfd Inverter 3 Phase |
Techincal Parameters:
Item | Specifiation | |
Input | Inuput Voltage |
1phase/3phase 220V:200V~240V 3 phase 380V-480V:380V~480V |
Allowed Voltage fluctuation range | -15%~10% | |
Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
Output | Output Voltage | 3phase:0~input voltage |
Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
Control | Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
Operating mode | Speed control,Torque control(SVC and VC) | |
Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
frequency range |
0.00~600.00Hz(V/f) 0.00~200.00Hz(SVC) 0.00~400.00Hz(VC) |
VEIKONG VFD APPLICATION:
Mode Range
Model |
Power capacity (KVA) |
Input current (A) |
Output current(A) |
Adaptable Motor (KW) |
SIZE | Brake Unit | |
Heavy load | Light load | ||||||
Three phase: 380-480V,50/60Hz | |||||||
VFD500-R75GT4B | 1.5 | 3.4 | 2.5 | 4.2 | 0.75 | SIZE A | Internal |
VFD500-1R5GT4B | 3 | 5 | 4.2 | 5.6 | 1.5 | ||
VFD500-2R2GT4B | 4 | 5.8 | 5.6 | 9.4 | 2.2 | ||
VFD500-4R0G/5R5PT4B | 5.9 | 10.5 | 9.4 | 13.0 | 3.7 | ||
VFD500-5R5G/7R5PT4B | 8.9 | 14.6 | 13.0 | 17.0 | 5.5 | SIZE B | |
VFD500-7R5G/011PT4B | 11 | 20.5 | 17.0 | 23.0 | 7.5 | ||
VFD500-011G/015PT4B | 17 | 26.0 | 25.0 | 31.0 | 11 | SIZE C | Internal |
VFD500-015G/018PT4B | 21 | 35.0 | 32.0 | 37.0 | 15 | ||
VFD500-018G/022PT4B | 24 | 38.5 | 37.0 | 45.0 | 18.5 | SIZE D | |
VFD500-022G/030PT4B | 30 | 46.5 | 45.0 | 57.0 | 22 | ||
VFD500-030G/037PT4 | 40 | 62.0 | 60.0 | 75.0 | 30 | SIZE E | option |
VFD500-037G/045PT4 | 50 | 76.0 | 75.0 | 87.0 | 37 | ||
VFD500-045G/055PT4 | 60 | 92.0 | 90.0 | 110.0 | 45 | SIZE F | |
VFD500-055G/075PT4 | 75 | 113.0 | 110.0 | 135.0 | 55 | ||
VFD500-075G/090PT4 | 104 | 157.0 | 152.0 | 165.0 | 75 | SIZE G | |
VFD500-090G/110PT4 | 112 | 170.0 | 176.0 | 210.0 | 90 | External | |
VFD500-110G/132PT4 | 145 | 220.0 | 210.0 | 253.0 | 110 | SIZE H | |
VFD500-132G/160PT4 | 170 | 258.0 | 253.0 | 304.0 | 132 | SIZE I | |
VFD500-160G/185PT4 | 210 | 320.0 | 304.0 | 360.0 | 160 | ||
VFD500-185G/200PT4 | 245 | 372.0 | 360.0 | 380.0 | 185 | SIZE J | |
VFD500-200G/220PT4 | 250 | 380.0 | 380.0 | 426.0 | 200 | ||
VFD500-220G/250PT4 | 280 | 425.0 | 426.0 | 465.0 | 220 | SIZE K | |
VFD500-250G/280PT4 | 315 | 479.0 | 465.0 | 520.0 | 250 | ||
VFD500-280G/315PT4 | 350 | 532.0 | 520.0 | 585.0 | 280 | SIZE L | |
VFD500-315G/355PT4 | 385 | 585.0 | 585.0 | 650.0 | 315 | ||
VFD500-355G/400PT4 | 420 | 638.0 | 650.0 | 725.0 | 355 | SIZE M | |
VFD500-400G/450PT4 | 470 | 714.0 | 725.0 | 820.0 | 400 | ||
VFD500-450G/500PT4 | 530 | 800.0 | 820.0 | / | 450 | SIZE N | |
VFD500-500G/560PT4 | 580 | 880.0 | 900.0 | / | 500 | ||
VFD500-560G/630PT4 | 630 | 950.0 | 980.0 | / | 560 | SIZE O | |
VFD500-630GT4 | 710 | 1080 | 1120. | / | 630 | SIZE O | |
VFD500-710GT4 | 790 | 1200 | 1260 | / | 710 | SIZE O | |
Single phase :220V ,50/60HZ | |||||||
VFD500-R40GS2 | 1.3 | 6.0 | 3.2 | 5.6 | 0.4 | SIZE A | Inbuilt |
VFD500-R75GS2 | 2.4 | 11.0 | 5.6 | 8.0 | 0.75 | SIZE A | |
VFD500-1R5GS2 | 3.5 | 15.0 | 8.0 | 10.6 | 1.5 | SIZE A | |
VFD500-2R2GS2 | 5.5 | 25.0 | 10.6 | 14.0 | 2.2 | SIZE A | |
VFD500-4R0GS2 | 7.7 | 35.0 | 17.0 | 23.0 | 4.0 | SIZE B | |
VFD500-5R5GS2 | 8.9 | 53.0 | 25.0 | 31.0 | 5.5 | SIZE C | |
VFD500-7R5GS2 | 11 | 67.0 | 32.0 | 37.0 | 7.5 | SIZE C |
VFD500 parameter distribution list
Classification | Parameter group | Page |
Common parameters | 00:Basic function | Page 30 |
01:Frequency source selection | Page 32 | |
02:Start and stop | Page 37 | |
03:Ramp and S curve | Page 39 | |
04: Analog and pulse input | Page 41 | |
05:Analog and pulse output | Page 45 | |
06: Multi-function Digital input (DI) | Page 46 | |
07: Multi-function Digital output(DO) | Page 49 | |
08:Digital Output setting | Page 51 | |
Motor control | 10:Encoder type | Page 53 |
11:Motor1 parmeter | Page 54 | |
12:Motor1 VFcontrol parameter | Page 56 | |
13:Motor1 Vector controlparameter | Page 58 | |
14:Torque control | Page 59 | |
16:Energy saving control | Page 61 | |
Display and protection | 20:User-defined parameters | Page 62 |
21:Keypad and display | Page 63 | |
22:AC Drive configuration | Page 65 | |
23:Drive protection function setting | Page 67 | |
24:Motor protection parameter | Page 70 | |
25:Fault tracking parameter | Page 72 | |
26:Fault recording parameter | Page 72 | |
27:Monitoring parameter | Page 74 | |
Communication | 30:Modbus communication | Page 75 |
Application | 40:Process PID Function | Page 77 |
41:Sleep function | Page 81 | |
42:Simple PLC | Page 82 | |
43:Programmable delay unit | Page 84 | |
44:Comparator and logic unit/controller | Page 86 | |
45:Multifunction counter | Page 90 | |
Motor 2 | 60:Motor2 basic parameter | Page 91 |
61:Motor2 parameter | Page 91 | |
62:Motor2 VF control parameter | Page 92 | |
63:Motor2 vector control parameter | Page 92 |
