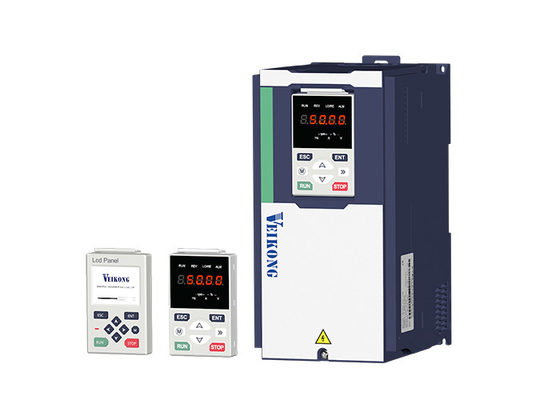

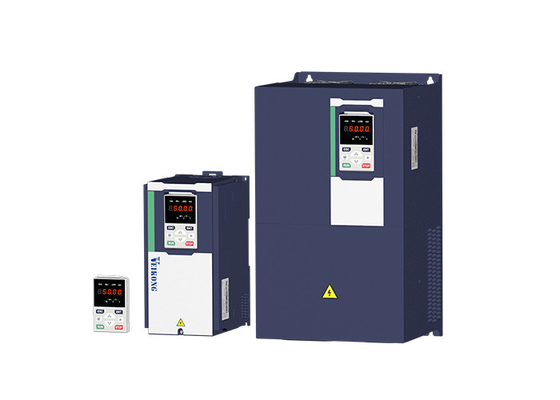

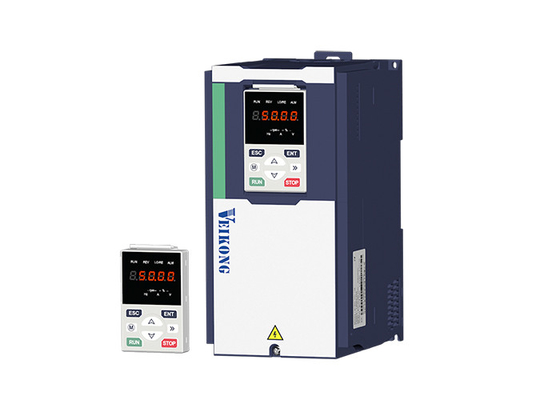

VEIKONG VFD500 Variable Frequency Inverters Converters for Process PID Control and Simple PLC

Item

Specifiation

Input

Inuput Voltage

1phase/3phase 220V:200V～240V

3 phase 380V-480V:380V～480V

Allowed Voltage fluctuation range

-15%～10%

Input frequency

50Hz / 60Hz,fluctuation less than 5%

Output

Output Voltage

3phase:0～input voltage

Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

Control

Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

Operating mode

Speed control,Torque control(SVC and VC)

Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

frequency range

0.00～2000.00Hz(V/f)

0.00～200.00Hz(SVC)

0.00～400.00Hz(VC)

Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)

Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;

Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure

VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency

1kHz～12kHz(Varies depending on the type)

Startup method

Direct start (can be superimposed DC brake); speed tracking start

Stop method

Deceleration stop (can be superimposed DC braking); free to stop

Maincontrol function

Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN

Function

Keypad

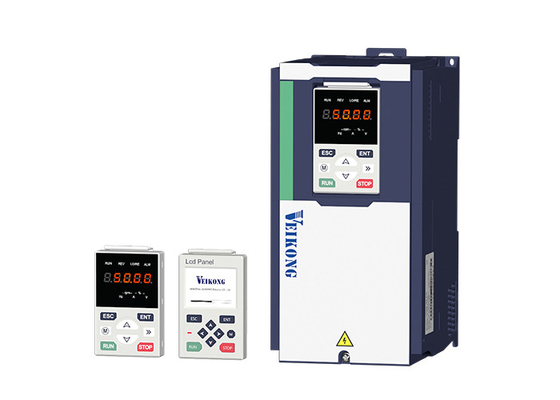

LED Digital keyboard and LCD keypad(option)

Communication

Standard:

MODBUS communication

CAN OPEN AND PROFINET( IN DEVELOPMENT)

PG card

Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card

Input terminal

Standard:

5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;

2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;

Option card:

4 digital input terminals

2 analog input terminals.support-10V-+10V voltage input

Output terminal

standard:

1 digital output terminal;

1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;

1 relay output terminal(second relay is an option )

2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Option card: 4 digital output terminals

Protection

Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function

Environment

Installation location

Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.

Altitude

0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m

Ambient temperature

-10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C

Humidity

Less than 95%RH, without condensing

Vibration

Less than 5.9 m/s² (0.6 g)

Storage temperature

-20°C ~ +60°C

Others

Installation

Wall-mounted, floor-controlled cabinet, transmural

Protection level

IP20

cooling method

Forced air cooling

EMC

CE ROHS

Internal EMC filter

Complies with EN61800-3

Category C3

3^rd Environment
