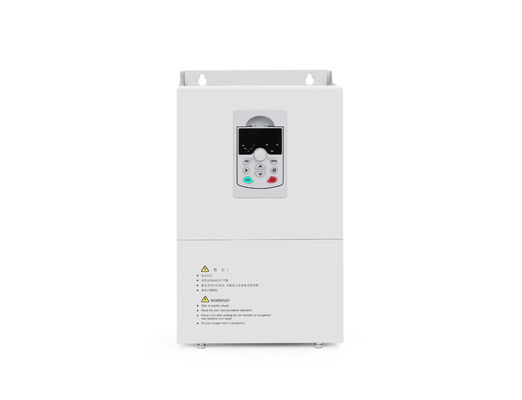

Inverter Input 1 Phase 220v Output 3 Phase 380v
Place of Origin CHINA
Brand Name VEIKONG
Certification CE ROHS
Model Number VFD200A
Minimum Order Quantity 1
Price negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 15000pcs per Month
Product Details
Product Name 220v Input 380v Output AC DRIVE Power 0.75KW-11KW
Frequency 0-3200hz Startup Torque 0.5Hz/150%(SVC);0Hz/180%(FVC)
V/F Separation Complete Separation; Half Separation Warranty 18 Monthes
High Light

11KW Inverter Input 220v Output 380v

,

0.75KW Inverter Input 220v Output 380v

Product Description


0.75KW-11KW VFD 220V input 380v output variable frequency inverter



Technical features
1,Using DSP as the core of control unit to achieve high-speed and high-performance control
2,Motor parameter self-learning,intelligent setting to the optimal control model
3,High performance IPM module,protection function such as under voltage,overcurrent,overtemperaature,over the ground short circuit etc.
4,The unique EMC design minimizing the pollution to power.

Capacity range
Power range:0.75-11kw power range
Frequency range:0.00-400.00HZ
Voltage level:single phase 220V/ three phase 380V

Application industry
Medicine,food,packaging,engraving,washing and other industries Machinery equipment,a variety of small-scale machinery equipment.

Product details

Infineon PIM integrated power module integrated power devices
Integrated all parts and circuits small size, large power
Low loss,more stable

Anti-corrosion paint protection circuit
Anti-corrosion paint processing
Prolong the service life
Superior insulation moisture-proof
Prevent electric leakage shock-proof dust
proof
Corrosion resistance aging corona
resistance,etc

Multiple defensive function
Over-voltage protection,low-voltage protection,over current protection,over-load protection
Over-heating protection,loss of speed protection,olse phase protection
External fault,communication error,PID feedback signal abnormalities,PG failures,current detection fault ,motor self-learning fault,EEPROM operation fault, Such as multiple protection mechanism.

VFD200A technical data:
ItemSpecifications












Standard functions

Maximum frequencyVector control:0~500Hz V/F control: 0~500Hz



Carrier frequency

0.5kHz~16kHz (The carrier frequency is automatically adjusted based on the load features.)

Input frequency

resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.025%



Control mode

Sensor-less flux vector control (SFVC)

Closed-loop vector control (CLVC) (+PG Card) Voltage/Frequency (V/F) control

Startup torque0.5Hz/150%(SVC);0Hz/180%(FVC)
Speed range1:100 (SVC)1:1000 (FVC)
Speed stability accuracy±0.5%(SVC)±0.02%(FVC)
Torque control accuracy±5%(FVC)




Overload capacity

G type: 60s for 150% of the rated current, 3s for 180% of the rated current

P type: 60s for 120% of the rated current, 3s for 150% of

the rated current



Torque boost

Auto boost;

Manual boost: 0.1%~30.0%


Standard functions




V/F curve

Straight-line V/F curve Multi-point V/F curve

N-powerV/F curve (1.2-power, 1.4-power, 1.6-power, 1.8- power, square)

V/F separation2 types: complete separation; half separation




Acceleration/deceleration curve

Straight-line ramp S-curve ramp

Four groups of acceleration/deceleration time with the range of 0.00s~65000s




DC braking



DC braking frequency: 0.00 Hz ~ maximum frequency Braking time: 0.0~100.0s

Braking trigger current value: 0.0%~100.0%



JOG control



JOG frequency range: 0.00Hz~50.00 Hz

JOG acceleration/deceleration time: 0.00s~65000s

Built-in PLC, multiple speeds



It realizes up to 16 speeds via the simple PLC function or combination of DI terminal states

Built-in PIDIt realizes closed loop control system easily.
Auto voltage regulation (AVR)



It can keep constant output voltage automatically when the mains voltage fluctuation.

Overvoltage/ Over current stall control

The current and voltage are limited automatically during the running process so as to avoid frequently tripping due

to overvoltage/over current.

Rapid current limit

function

It can auto limit running current of frequency inverter to avoid frequently tripping.




Torque limit and control

(Excavator characteristics) It can limit the torque automatically and prevent frequently over current tripping during the running process.

Torque control can be implemented in the VC mode.

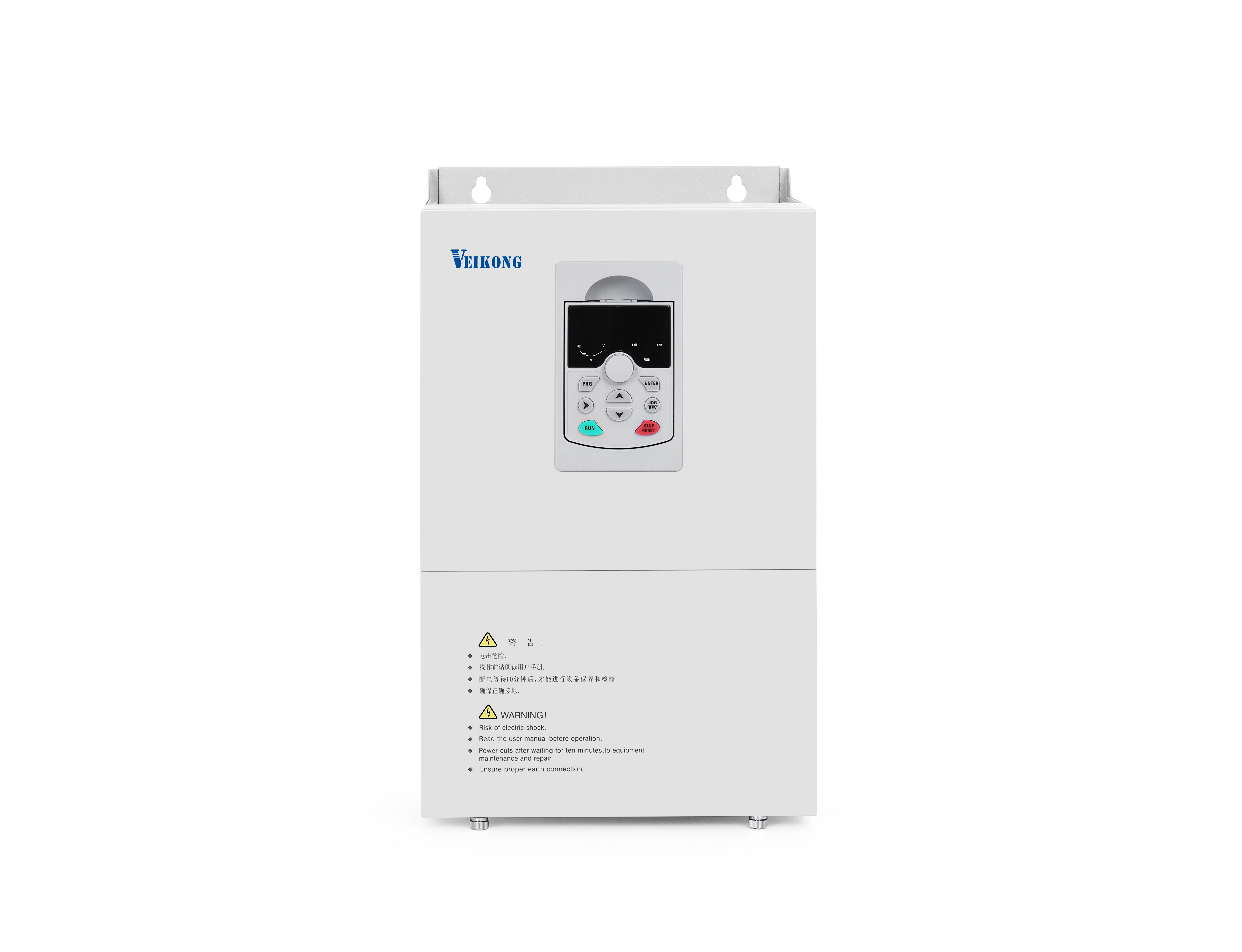

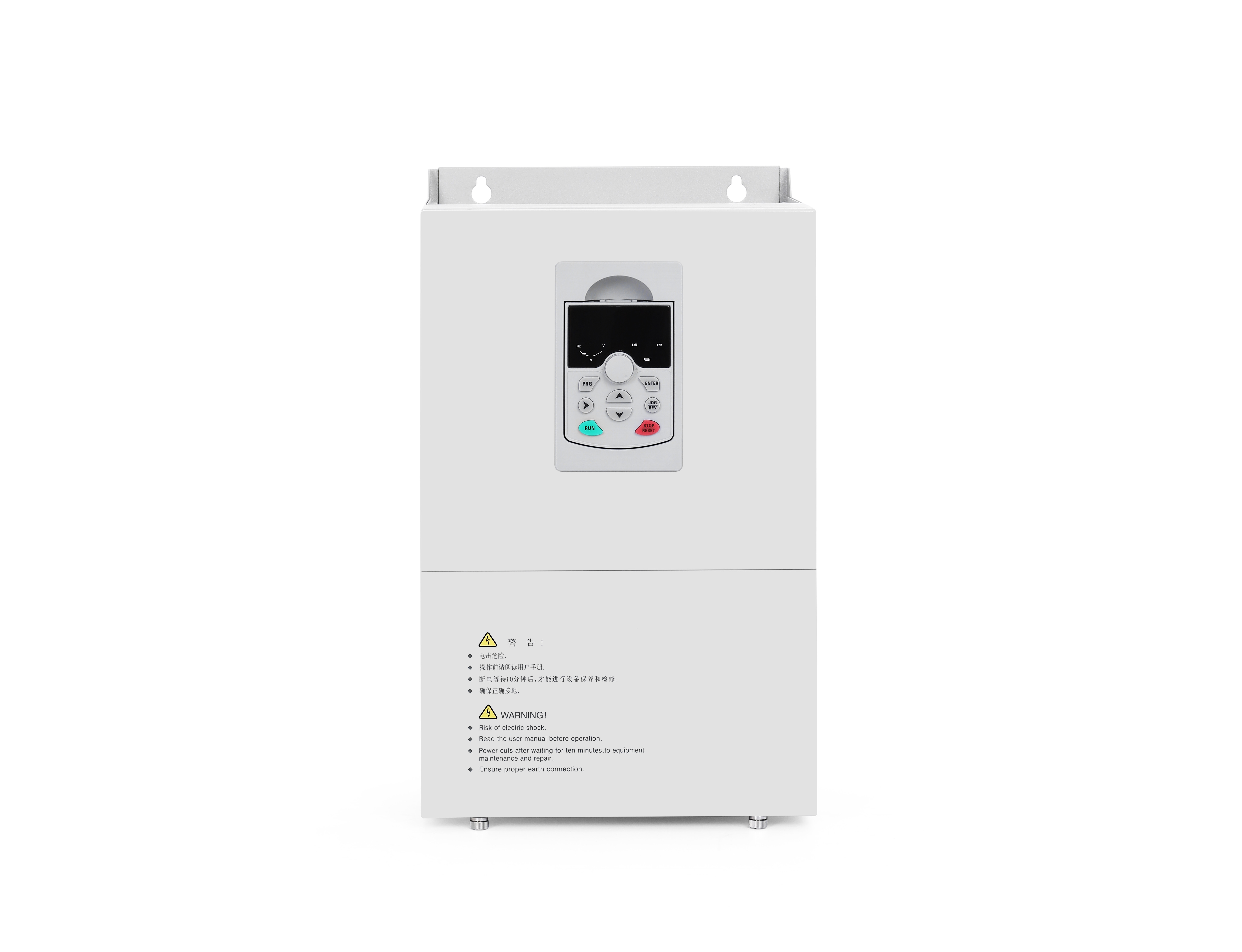

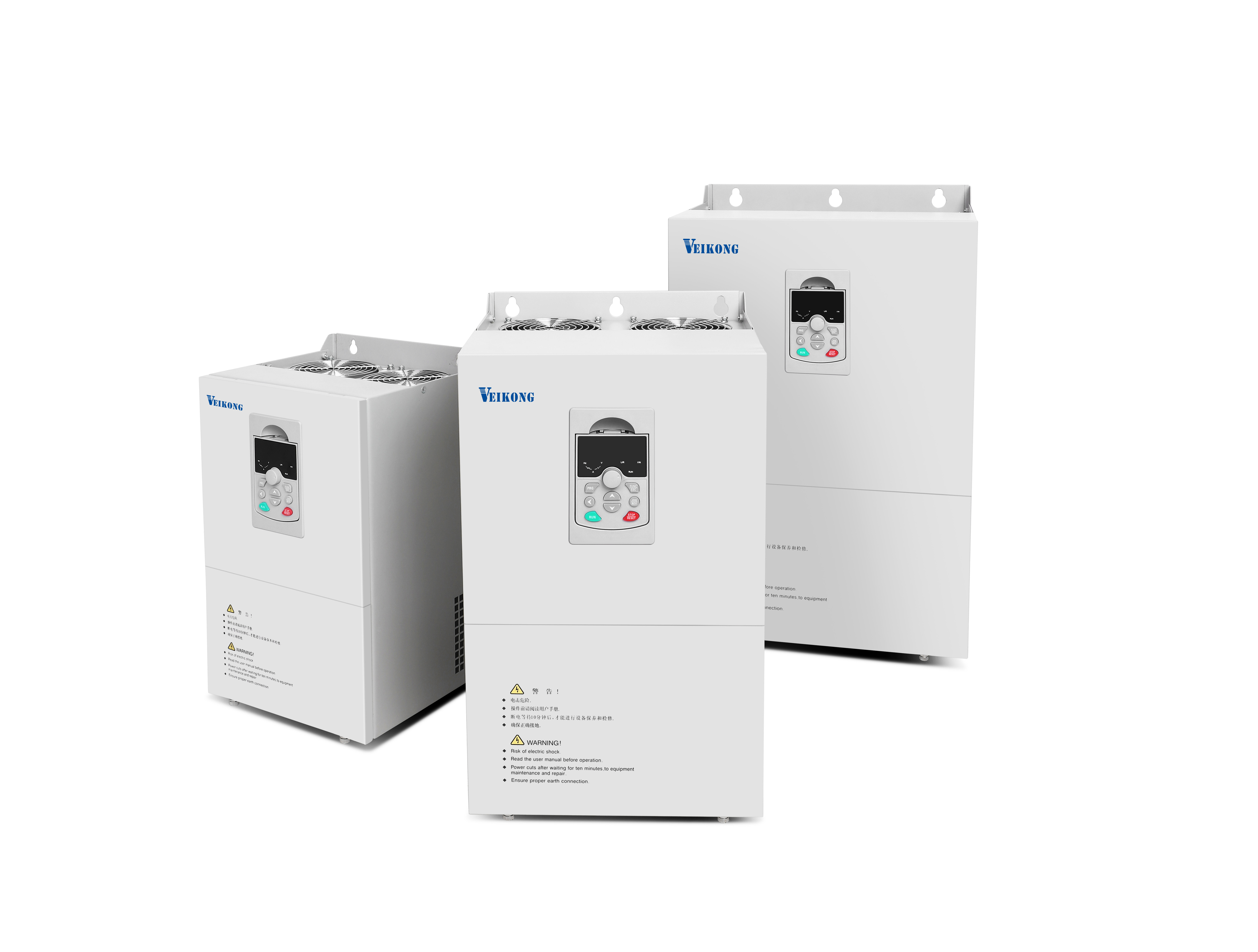

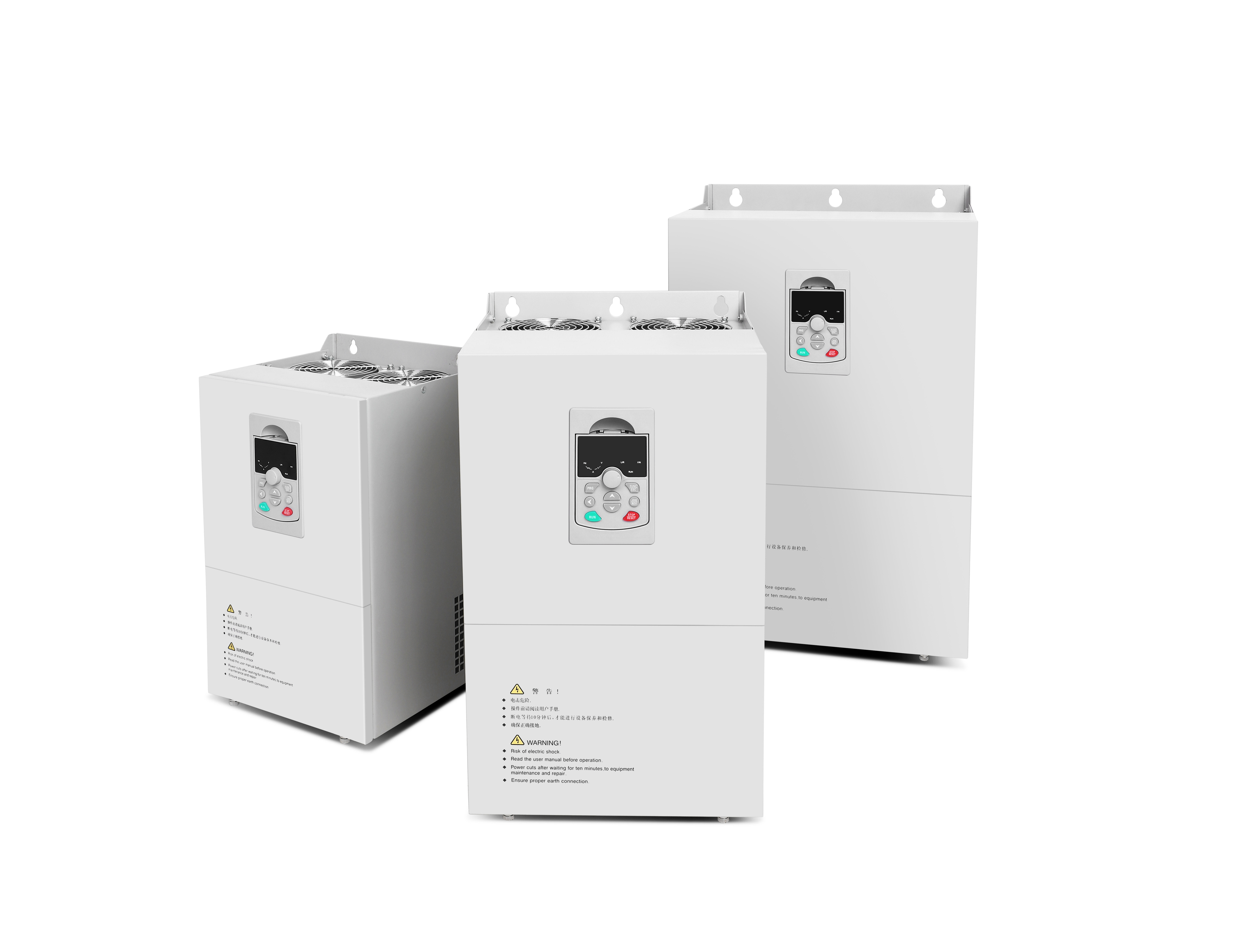

VFD200A picture:
Inverter Input 1 Phase 220v Output 3 Phase 380v 0Inverter Input 1 Phase 220v Output 3 Phase 380v 1Inverter Input 1 Phase 220v Output 3 Phase 380v 2

Connect wire diagram:
Inverter Input 1 Phase 220v Output 3 Phase 380v 3
