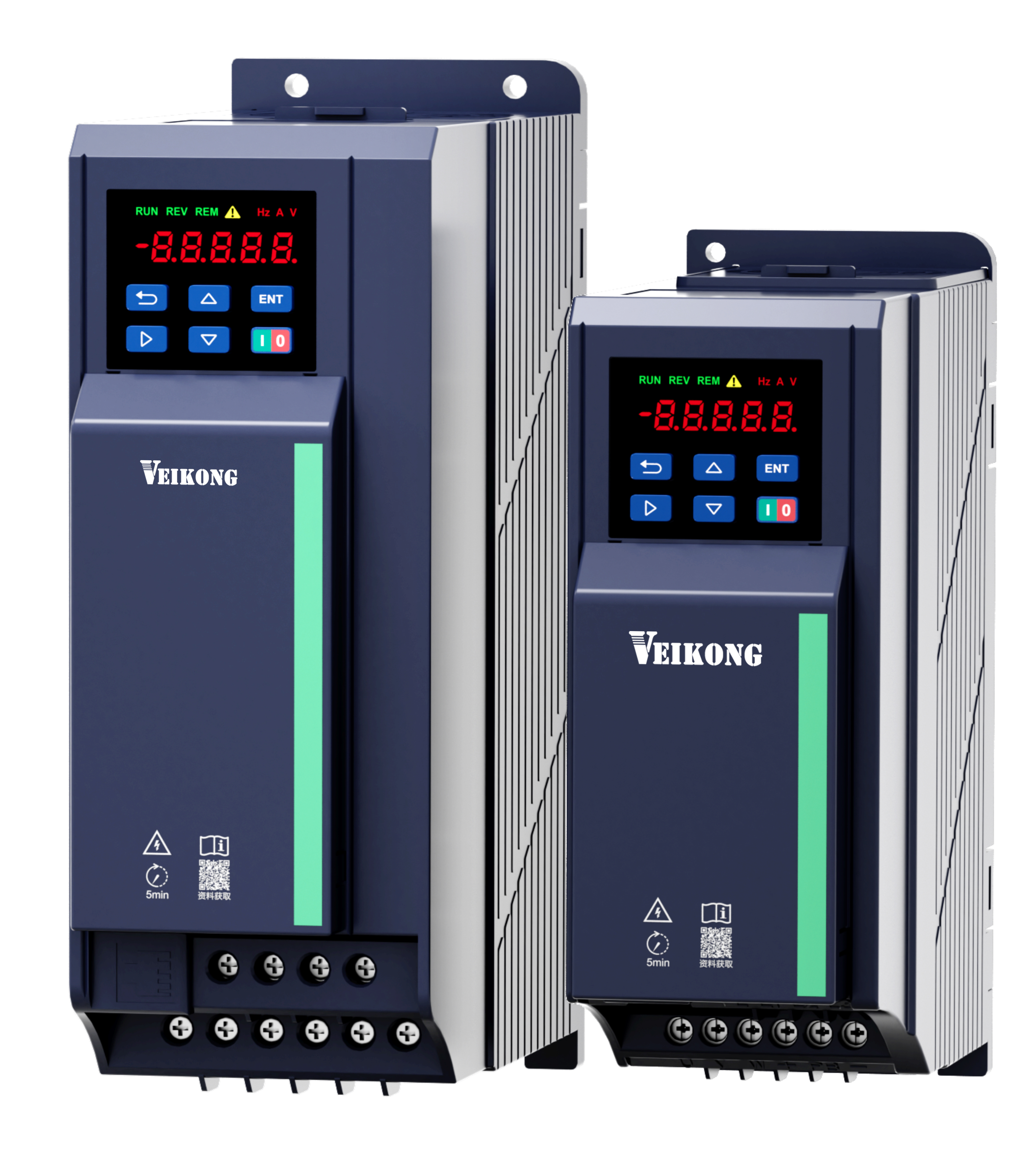

VFD150 Series Compact Frequency Inverter 0.75kw-18kw 380V/220V
  • VFD150 Series Compact Frequency Inverter 0.75kw-18kw 380V/220V
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD150
Minimum Order Quantity 1
Packaging Details Carton and Wooden Box
Delivery Time 7-15 days, depend on the order quantity
Payment Terms L/C,D/A,T/T,D/P,Western Union
Supply Ability 15000pcs per Month
Product Details
Warranty 24 Months Input Voltage 1-phase/3-phase 220V: 200V~240V 3-phase 380V~480V: 380V~480V
Overload Capacity General Application: 150% Rated Current For 60S Light Load Application: 120% Rated Current For 60S Operating Mode Speed Control, Torque Control (SVC)
Input Frequency 50Hz/60Hz, Fluctuation Less Than 5% Speed Range 1:100 (V/f); 1:200 (SVC)
Product Description

1. Company Profile:

Shenzhen VEIKONG Electric Co., Ltd. is a reputable high-tech enterprise, focusing on R&D, manufacturing and trading of medium & low voltage inverters and solar pumping inverters, providing customers with integrated system solutions.
The company owns a professional R&D team and experienced management team with over 20 years of industry experience, ranking among China’s first batch of independent AC drive enterprises.
It adopts cutting-edge technologies including high-efficiency MPPT algorithm, SPWM, sensorless vector control, vector and torque control. Its inverters reach international advanced level, which can directly replace equivalent brands from Europe, America and Japan, offering strong technical support for clients.
The company strictly implements ISO9001 quality management system. All products pass CE, IEC certifications and other technical approvals. It keeps upgrading technology and products to meet market and customer demands.


2. Model Naming Rule

Format: VFD150-Power-Voltage-B
Power: 2R2 = 2.2KWS: Single phase;
T: Three phase 2: 200-240
V; 4: 380-480V
B: With built-in braking unit

3. Environmental & Installation Specification

Installation Location: Away from electromagnetic radiation, no metal powder/corrosive/flammable gas/oil mist/salt

Altitude: 0~3000m; above 1000m, rated current reduces 1% per 100m rise

Ambient Temperature: -10℃~+40℃ (max 50℃); above 40℃, rated current reduces 1.5% per 1℃ rise

Humidity: Less than 95%RH, non-condensing

Vibration: Less than 5.9m/s² (0.6g)

Storage Temperature: -20℃~+60℃

Installation Type: Wall-mounted

Protection Level: IP20

Cooling Method: Forced air cooling


4. Why Choose VEIKONG

  1. Strong Technical Strength
    Over 20 years of R&D and manufacturing experience; core vector control & torque control technologies reach international advanced standard; fully compatible to replace European, American and Japanese mainstream brands.
  2. Complete Product Performance & Cost Advantage
    VFD150 series with compact structure, built-in braking unit, complete protection and rich control functions; reduces additional purchasing cost and wiring difficulty; high cost-performance ratio.
  3. Strict Quality Control
    Follow ISO9001 standard; pass CE/IEC global certifications; stable performance, strong adaptability to harsh working conditions.
  4. Professional Customization & System Solution
    Provide one-stop integrated industrial drive solutions; support model selection, technical parameter matching and on-site application guidance.
  5. Rich Industry Application Experience
    Widely used in textile, printing & packaging, food, plastic, logistics, construction, woodworking, building materials, solar pumping, petroleum, chemical, hoisting, power supply and water supply industries.
  6. Convenient Technical Support & After-sales
    Professional technical hotline support; compatible with dedicated keyboard and PC TOOL software; easy parameter debugging, backup and recovery; perfect fault record and reset function.
Adhering to customer-oriented philosophy, VEIKONG prioritizes customer requirements to exceed expectations. Products are widely applied in multiple industries to create stable value for global users.
