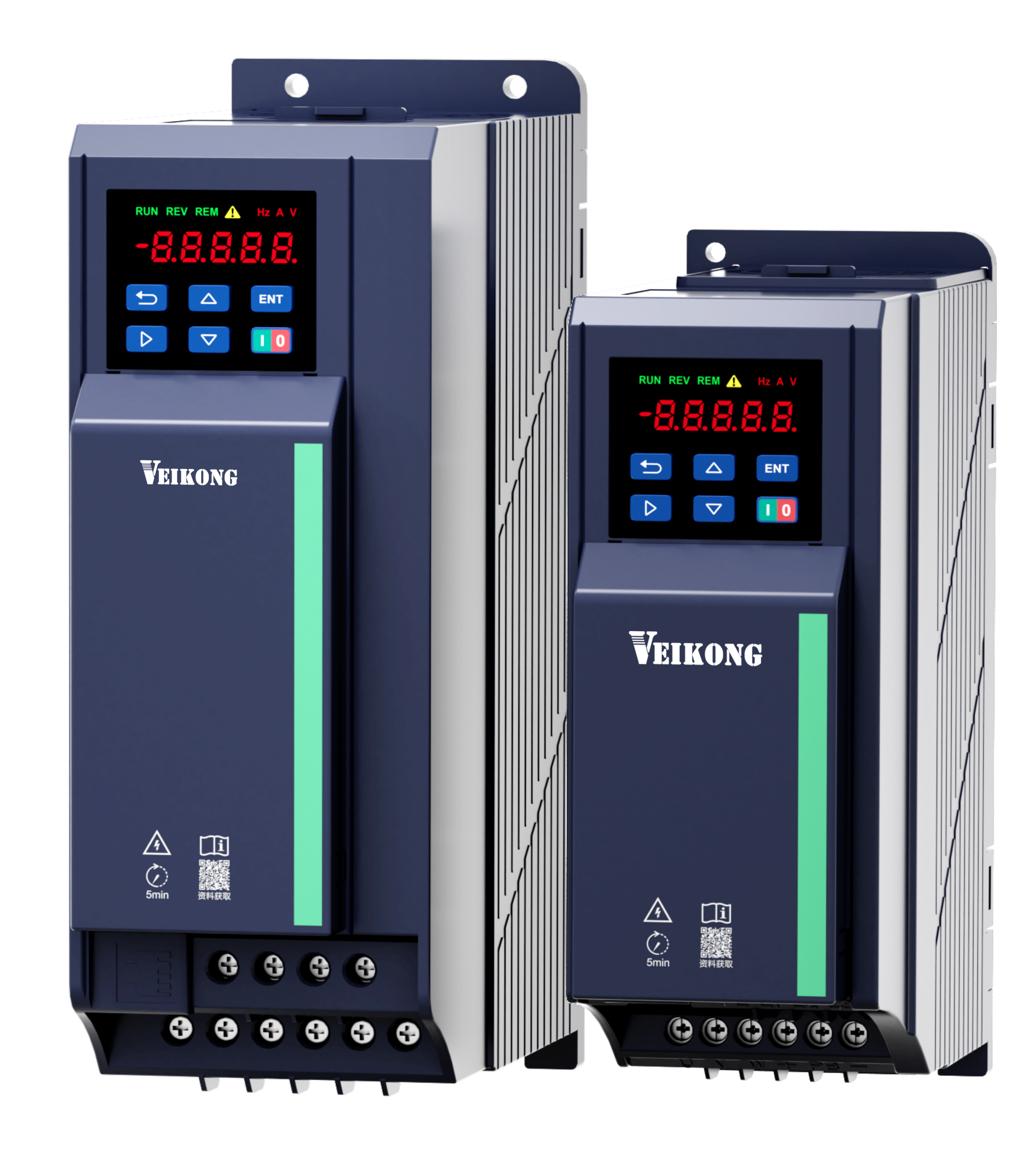

Space‑Saving VFD150 Drive 0.75kW–18kW 220V/380V
Product Details
| Voltage | 1-phase 220V / 3-phase 380–480V | High Starting Torque | 150% At Low Frequency |
|---|---|---|---|
| Power Range | 0.4–7.5kW | Warranty | 24 Months |
| Control Modes | V/F Control & Sensorless Vector Control (SVC) | Speed Range | 1:100 (V/f); 1:200 (SVC) |
Product Description
1. Company Introduction
Shenzhen VEIKONG Electric is a high-tech enterprise with over 20 years of experience in R&D, manufacturing and sales of low-voltage inverters, solar pumping inverters and soft starters. We provide integrated drive solutions with products certified CE, IEC and ISO9001, sold worldwide.
2. VFD150 Product Performance
1.Voltage: 1-phase 220V / 3-phase 380–480V
2.Power range: 0.4–7.5kW
3.Control modes: V/F control & Sensorless Vector Control (SVC)
4.High starting torque: 150% at low frequency
5.Built-in brake unit, RS485 (Modbus-RTU)
6.Complete protection: overcurrent, overvoltage, overload, phase loss, overheating, etc.
7.Compact size, bottom wiring, easy maintenance
3. Key Functions
1.Linear & S-curve acceleration / deceleration
2.Multi-speed operation, PID control, sleep & wake-up
3.Jump frequency (avoid resonance), droop control
4.DC braking, speed tracking restart
5.Parameter backup & fault record
Wide carrier frequency: 1–18kHz
4. Applications
Textile, printing & packaging, food machinery, plastic machinery, logistics equipment, construction machinery, woodworking, building materials, fans, pumps and general small motor drive systems.
5. After-Sales Service
Standard warranty against manufacturing defects
Free lifetime technical support (phone / email / online)
Fast spare parts supply
On-site troubleshooting and commissioning guidance
Timely maintenance and repair service
6. Why Choose VEIKONG
1.Professional R&D team and stable quality system
2.Compact design, easy installation and cost-effective
3.Full series built-in brake unit, saving space and cost
4.Strong technical support and short lead time
5.Global service network and reliable after-sales support
