S6 series spindle-specific servo drive 2.2KW-11KW
  • S6 series spindle-specific servo drive 2.2KW-11KW
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number S6
Minimum Order Quantity 1
Packaging Details Carton and Wooden Box
Delivery Time 7-15 days, depend on the order quantity
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 15000pcs per Month
Product Details
Warranty 24 Months Supported Motor Types Asynchronous Motor,Permanent Magnet,Synchronous Motor
Protection Level IP20 Storage Temperature -20℃—+60℃
Frequency Control Range 0—600.00HZ(S6),0-2000HZ(S6C And S6M) Input Power Frequency 50HZ/60HZ
Keypad Standard LED,Optional LCD
Product Description

1.Key Product Features


  • Strong weak‑magnetic speed‑up: Maximizes motor output in the weak‑magnetic region for high‑speed spindle applications.
  • Wide CNC compatibility: Supports analog pulse, EtherCAT (S6C), and M3 (S6M) bus communication interfaces.
  • Multiple encoder support: TTL differential, Tamagawa absolute, SinCos, SSI/BISS, with optional frequency division output.
  • Powerful self‑learning: Fast and accurate motor parameter identification for high commissioning efficiency and third‑party motor matching.
  • High overload capacity: 150% rated current for 60s; 200% rated current for 8s.
  • Precise position control: Supports semi‑closed loop and full closed loop; positioning accuracy ±1 pulse.
  • Compact structure: 46%–55% smaller than the previous S5 series; separated motor/spindle encoder ports for easy wiring.
  • Independent air duct design: Prevents dust and reduces failure risk; high‑airflow long‑life fan lowers internal temperature.
  • Reliable hardware: Integrated IGBT module, overcurrent / short‑circuit protection, strong anti‑EMI performance.

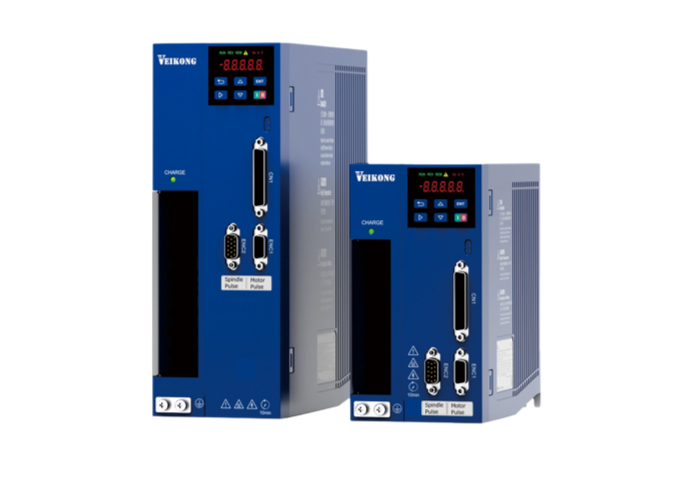

S6 series spindle-specific servo drive 2.2KW-11KW 0

2.Company Profile


Shenzhen VEIKONG Electric Co., Ltd. is a well‑established high‑tech enterprise focusing on R&D, manufacturing, and sales of low‑ and medium‑voltage inverters and solar pumping inverters. With more than 20 years of professional management and a strong R&D team, we are among the earliest independent AC drive manufacturers in China. We integrate high‑efficiency MPPT, SPWM, sensorless vector control, and vector & torque control technologies, reaching international advanced levels and being comparable with top brands from Europe, the United States, and Japan. We strictly follow ISO9001 quality management and our products hold CE and IEC certifications. Committed to customer‑centric solutions, we provide reliable products and full technical support for global industrial customers.

3.Typical Applications
  • CNC lathe, CNC milling machine, machining center
  • CNC vertical lathe, CNC grinding machine, CNC boring machine
  • Turn‑mill composite machine, gantry machine tool

4.Why Choose VEIKONG S6?

  • Stable, reliable, and compact design
  • High compatibility with mainstream CNC systems
  • Easy installation, debugging, and maintenance
  • CE and IEC certified; global quality standard
  • Professional technical support and after‑sales service

5.Technical Specifications


(1)Power Range


  • 220V models: 2.2kW – 5.5kW
  • 380V models: 4.0kW – 11kW

(2)Input Voltage


  • 220V class: 3‐phase 200–240V
  • 380V class: 3‐phase 380–480V
  • Allowable voltage fluctuation: –15% ~ +10%
  • Input frequency: 50/60Hz (±5%)

(3)Control Performance


  • Overload: 150% 60s / 200% 8s
  • Control modes: Speed control, torque control (SVC/VC), position control (VC)
  • Frequency range: 0–600Hz (S6); 0–2000Hz (S6C/S6M)
  • Acceleration/deceleration: Linear & S‑curve; 4 groups, 0.00s–60000s

(4)Main Functions


  • Spindle orientation, full closed‑loop control, parameter backup/restore, complete fault logging
  • Communication: Modbus (S6); EtherCAT (S6C); M3 (S6M)
  • Interface: Dual encoder ports (motor + spindle)

(5)Environment


  • Operating temperature: 0°C–40°C (derate above 40°C)
  • Storage temperature: –20°C–60°C
  • Humidity: <95% RH (non‑condensing)
  • Altitude: 0–3000m
  • Protection: IP20
  • Cooling: Forced air cooling
