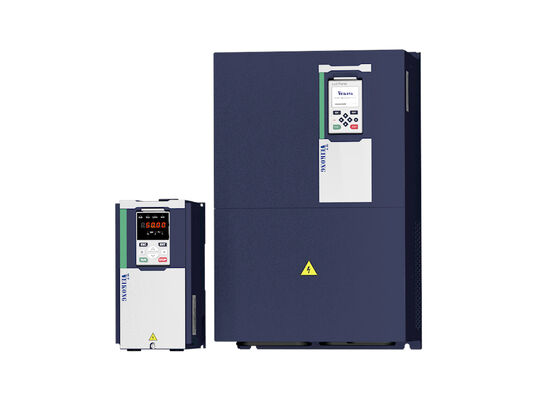

11kw 30kw Solar Pump Inverter with 99% Efficiency and Dry Run Protection for 3-Phase Pumps
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Packaging Details | The power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | Depend on the order quantity |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 11kw 30kw Solar Pump Inverter | Output Frequency | 50/60hz |
|---|---|---|---|
| Protection | IP20 | Dry Run Protection | Support |
| Efficiency | More Than 99% | Special Function | PID |
Product Description
Smarter MPPT, More Power: Unlocking Maximum Solar Efficiency in 3-Phase Pump Inverters
Solar pump inverter 11kw-30kw frequency drive for AC pump PMSM pump
Product Features
- Power range: 220V (0.75 - 75KW), 380V (0.75 - 250KW)
- DC/AC Input Compatible - supports DC and AC input simultaneously
- Multiple protection functions for enhanced system reliability
- Specifically designed for water supply applications with easy operation
- Advanced MPPT technology for maximum solar cell array efficiency
- Dry run protection prevents pump damage when water source is depleted
- Automatic dormancy at weak light (sunset) and reactivation at strong light (sunrise)
- Automatic water level control with dormancy at high reservoir level and restart at low level
- Optional LCD display and GPRS module support
- Supports LED/LCD keypad
VFD500-PV Three Phase Models
| Drive Model | Max DC Input Current (A) | Rated Output Current (A) | Applicable Water Pump (kW) |
|---|---|---|---|
| VFD500M-40T00150-PV | 9 | 3.7 | 1.5 |
| VFD500M-40T00220-PV | 12 | 5 | 2.2 |
| VFD500M-40T00400-PV | 16.5 | 9.4 | 4 |
| VFD500M-40T00550-PV | 23.9 | 13 | 5.5 |
| VFD500M-40T00750-PV | 30.6 | 17 | 7.5 |
| VFD500-40T00150-PV | 9 | 4.2 | 1.5 |
| VFD500-40T00220-PV | 12 | 5.6 | 2.2 |
| VFD500-40T00400-PV | 16.5 | 9.4 | 4 |
| VFD500-40T00550-PV | 23.9 | 13 | 5.5 |
| VFD500-40T00750-PV | 30.6 | 17 | 7.5 |
| VFD50040T01100-PV | 39.2 | 25 | 11 |
| VFD500-40T01500-PV | 49.0 | 32 | 15 |
| VFD500-40T01850-PV | 50 | 37 | 18.5 |
| VFD500-40T02200-PV | 60 | 45 | 22 |
| VFD500-40T03000-PV | 81 | 60 | 30 |
| VFD500-40T03700-PV | 90 | 75 | 37 |
| VFD500-40T04500-PV | 130 | 90 | 45 |
| VFD500-40T05500-PV | 150 | 112 | 55 |
| VFD500-40T07500-PV | 200 | 152 | 75 |
| VFD500-40T09000-PV | 250 | 176 | 90 |
| VFD500-40T11000-PV | 300 | 210 | 110 |
| VFD500-40T13200-PV | 360 | 253 | 132 |
| VFD500-40T16000-PV | 430 | 304 | 160 |
| VFD500-40T18500-PV | 500 | 360 | 185 |
| VFD500-40T20000-PV | 550 | 380 | 200 |
| VFD500-40T22000-PV | 620 | 426 | 220 |
| VFD500-40T25000-PV | 680 | 465 | 250 |
Product Reference
Optional Accessories
1. GPRS Module (supports 2G/3G/4G internet)
Enables water volume monitoring and inverter operation from anywhere at any time. Access real-time and historical data via web or Android APP for convenient remote monitoring. This easy-to-use platform simplifies solar pump system monitoring while reducing operation time and monitoring costs.

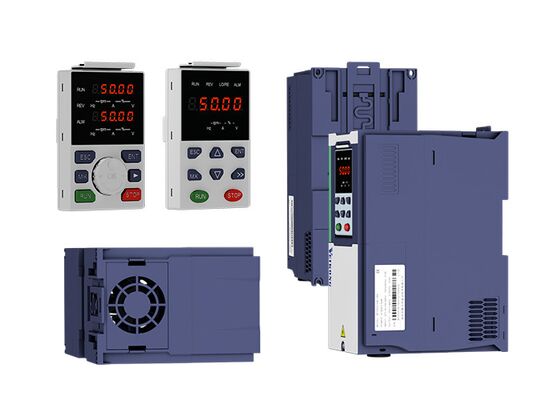

2. LCD Keypad
Standard inverters include LED keypads, with LCD keypads available as an optional upgrade. LCD keypads can monitor 4 parameters simultaneously (vs. single parameter display on LED keypads). Features detailed parameter explanations for user-friendly operation without manuals. Includes copy, update, and download functions - ideal for government projects and large farms.
