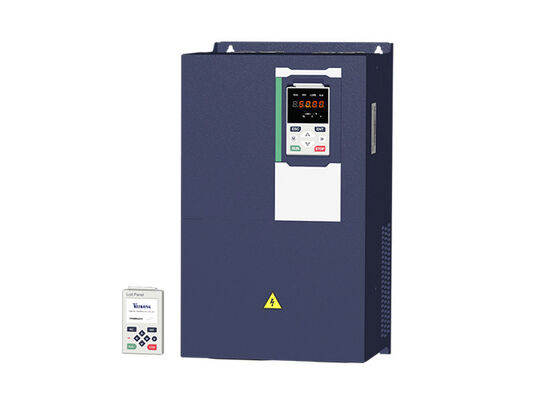

VFD500 Variable Frequency Drives for Automation Machine ,support OEM service
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD500 |
| Minimum Order Quantity | 1 |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 3-8 working days |
| Payment Terms | MoneyGram,Western Union,T/T,D/P,D/A,L/C |
| Supply Ability | 15000 per/ month |
Product Details
| Voltage | 380V-480V | Frequency | 50HZ-60HZ |
|---|---|---|---|
| Brand | VEIKONG | Packaging Details | Paper Carton Under 45kw, Starting From 45kw Wooden Case For Packing |
| Control Mode | VF SVC And VC | OEM Service | Support |
Product Description

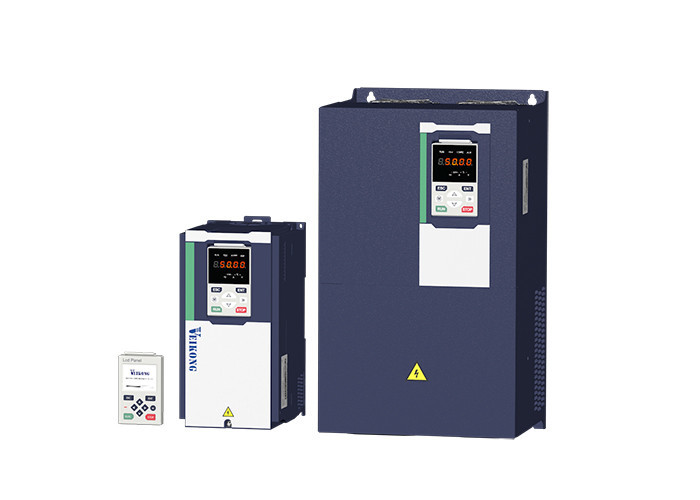

75KW 90KW 110KW 132KW Variable Frequency Drive VFD For Automation Machine
Variable Frequency Inverter 75KW 90KW 110KW 132KW VFD For Automation Machine
1. VFD500 product feautures
1) High performance general purpose VFD for a rich variety of industry applications.
2) Excellect speed tracking function for faster respond.
3) GPRS function and PC tool.
4) PID function which can support working on pumps.
5) Big turque in low frequency and GPRS function
6) Different IO board for options
7) 18 months warranty promise we will be responsible for any problem during this period.
8) Rigorous temperature testing and other steps testing can make sure high quality products for you.

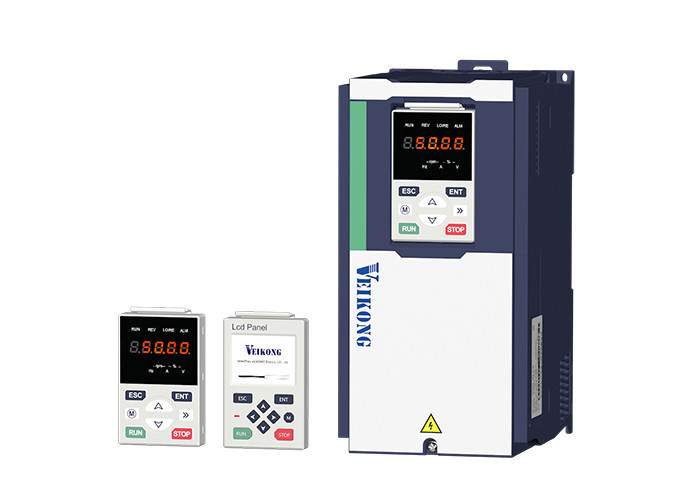

9) LCD, LED, shuttle display and new model LCD for options.
10) Can be used in a variety of applications like conveyor belt, CNC machine and air compressor etc.
VFD500 series frequency inverter is a powerful high-performance current vector inverter, which can realize the
control of the asynchronous motor, V/F control mode, one machine with multiple functions, can realize
multiple frequency switching, and can be used for textile, Drives for automated production equipment
such as papermaking, wIre drawing, machine tools, packaging, and food.
control of the asynchronous motor, V/F control mode, one machine with multiple functions, can realize
multiple frequency switching, and can be used for textile, Drives for automated production equipment
such as papermaking, wIre drawing, machine tools, packaging, and food.
2.VFD500 high performance vector control inverter
3.Product Specification
| Item | Specification | |
| Input | Input Voltage |
1phase/3phase 220V:200V～240V 3 phase 380V-480V:380V～480V |
| Allowed Voltage fluctuation range | -15%～10% | |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
| Output | Output Voltage | 3phase:0～input voltage |
| Overload capacity |
General purpose application:60S for 150% of the rated current Light load application:60S for 120% of the rated current |
|
| Control | Control mode |
V/f control Sensorless flux vector control without PG card(SVC) Sensor speed flux vector control with PG card (VC) |
| Operating mode | Speed control,Torque control(SVC and VC) | |
| Speed range |
1:100 (V/f) 1:200( SVC) 1:1000 (VC) |
|
| Speed control accuracy |
±0.5% (V/f) ±0.2% (SVC) ±0.02% (VC) |
|
| Speed response |
5Hz(V/f) 20Hz(SVC) 50Hz(VC) |
|
| Frequency range |
0.00～600.00Hz(V/f) 0.00～200.00Hz(SVC) 0.00～400.00Hz(VC) |
|
| Input frequency resolution |
Digital setting: 0.01 Hz Analog setting: maximum frequency x 0.1% |
|
| Startup torque |
150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 200%/0Hz(VC) |
|
| Torque control accuracy |
SVC:within 5Hz10%,above 5Hz5% VC:3.0% |
|
| V/f curve |
V / f curve type: straight line, multi point, power function, V / f separation; Torque boost support: Automatic torque boost (factory setting), manual torque boost |
|
| Frequency giving ramp |
Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s |
|
| DC bus voltage control |
Over-voltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault; Under-voltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip; Vdc Min control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump under-voltage fault |
|
| Carrier frequency | 1kHz～12kHz(Varies depending on the type) | |
| Startup method | Direct start (can be superimposed DC brake); speed tracking start | |
| Stop method | Deceleration stop (can be superimposed DC braking); free to stop | |
| Main control function | Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN | |
| Function | Keypad | LED Digital keyboard and LCD keypad(option) |
| Communication |
Standard: MODBUS communication CAN OPEN AND PROFINET( IN DEVELOPMENT) |
|
| PG card | Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card | |
| Input terminal |
Standard: 5 digital input terminals, one of which supports high-speed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input |
|
| Output terminal |
standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal(second relay is an option ) 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminals |
|
| Protection | Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function | |
| Environment | Installation location | Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
| Altitude | 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m | |
| Ambient temperature | -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C | |
| Humidity | Less than 95%RH, without condensing | |
| Vibration | Less than 5.9 m/s2 (0.6 g) | |
| Storage temperature | -20°C ~ +60°C | |
| Others | Installation | Wall-mounted, floor-controlled cabinet, transmural |
| Protection level | IP20 | |
| cooling method | Forced air cooling | |
| EMC | CE ROHS |
Internal EMC filter Complies with EN61800-3 Category C3 3rd Environment |
4.Product Application
5. Common question when using VFD500 series
1. What issues should be paid attention to when selecting inverters for equipment?
When choosing a frequency converter, the following aspects are mainly considered:
1. Whether the inverter has been used in the equipment before, whether it is often fault protection during the previous use, if there are frequent over current and overload faults,
In the follow-up selection, it is necessary to choose a larger power inverter
2. The voltage, current, power, speed of the motor, equipment reduction ratio, control requirements and other issues must be matched;
3. Load characteristics: Whether the equipment is an impact type load or a lifting type load, when selecting an inverter for these two types of loads, it is necessary to choose a larger level power inverter
4. When installing on-site, choose the wire way of inverter input, high ambient temperature, and high altitude to choose a higher level power inverter, whether install the cabinets, install transformers for incoming and outgoing lines, etc.
