VFD580 132kw Variable frequency drive equipped with built-in DC reactor
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD580
Minimum Order Quantity 2 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15490 per/ month
Product Details
Power 132KW Frequency 50/60hz
Color Light Blue And White Voltage 380V/220V
Warranty 18months OEM Yes
Material Plastic And Mental
Product Description

VFD580 132kw Variable frequency drive equipped with built-in DC reactor


1. Main features of VEIKONG VFD580

1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo    position control mode.

2. 15kw and above equipped with built-in DC reactor as standard.

3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.

4. 90kw and below equipped with brake circuit short-circuit protection function.

5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.

6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.

7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.

8. Support Spanish LCD keypad, it is easy to monitor and operator.

9. Support optional STO function.


2. VFD580 series control circuit terminals


Type Terminal symbol Terminal name Terminal function description
Analog input VREF

Analog input

reference voltage

VREF can choose 10V or 15V, switch between 10V and 15V of VREF throughthe "VREF" toggle switch, the factory default is 10V 10V3%,
The maximum output current is 30mA, that is, the recommended external
potentiometer resistance range: 1K~51K
GND Analog input ground Internally isolated from COM. 0V
AI 1 Analog input 1 Only input voltage:-10V~10V :Impedance 20K



3. The factory environment and manufacturing and testing process here

Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!

VFD580 132kw Variable frequency drive equipped with built-in DC reactor 0

VFD580 132kw Variable frequency drive equipped with built-in DC reactor 1

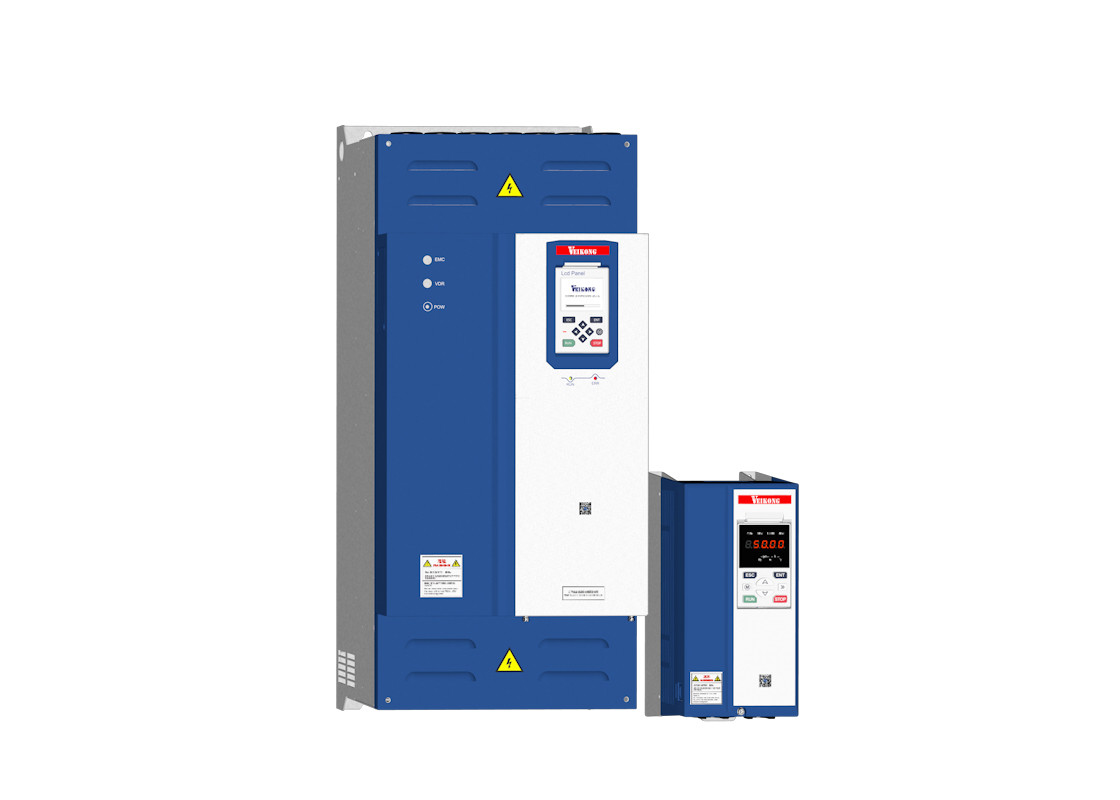

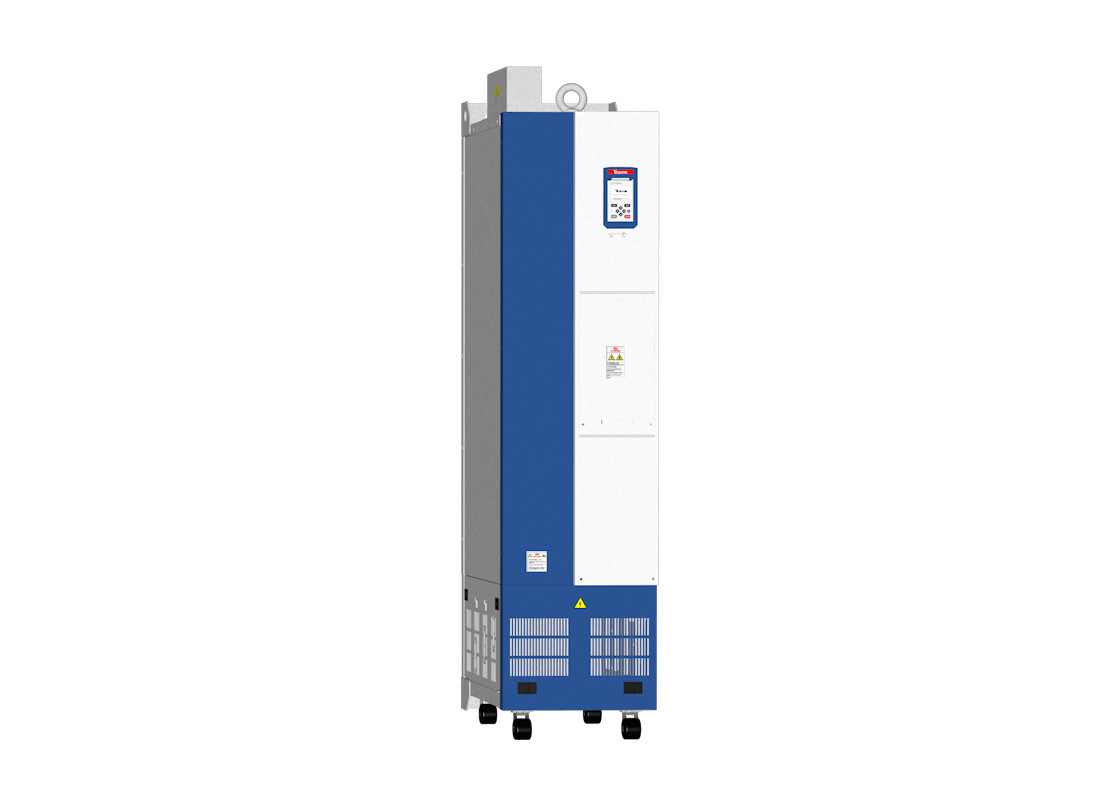

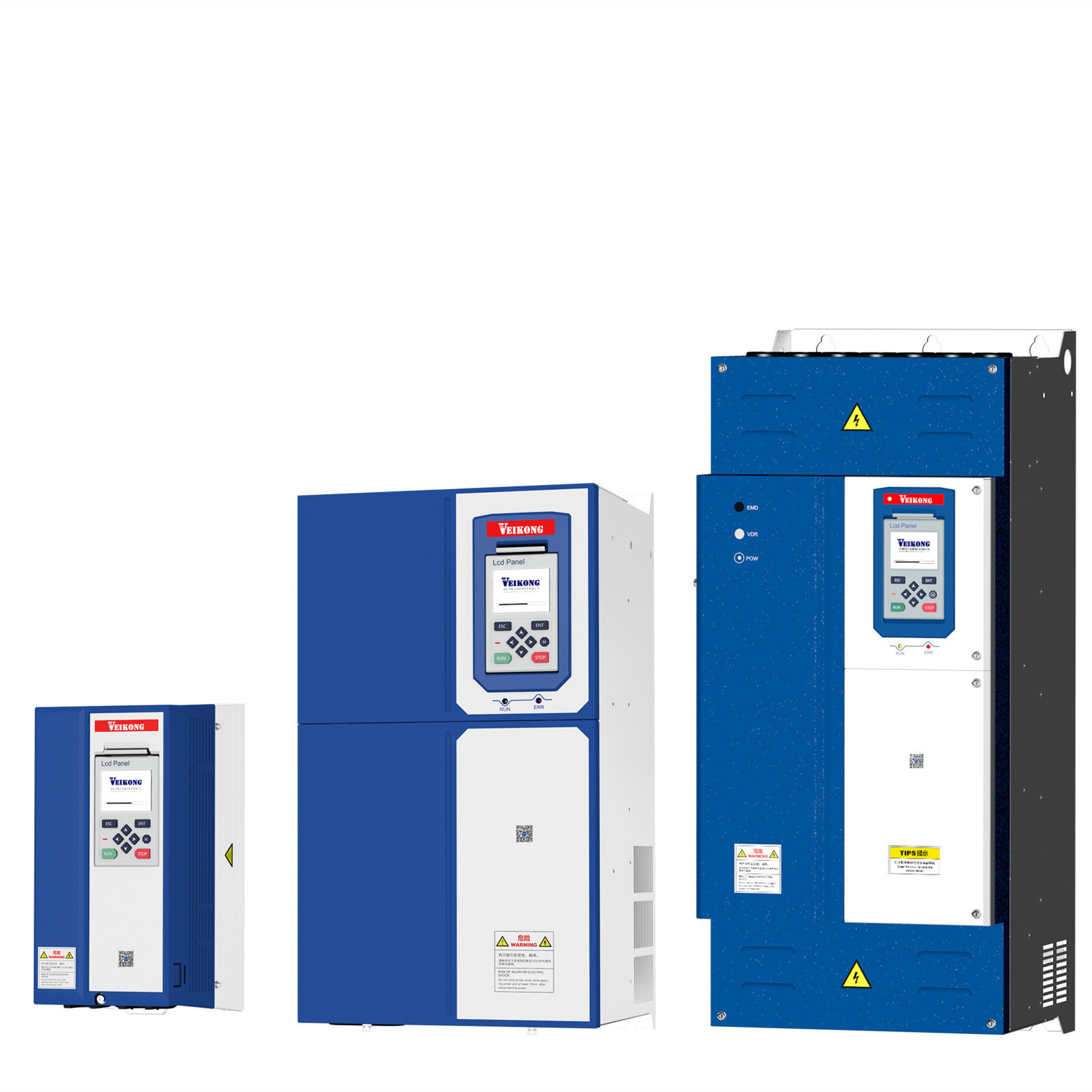

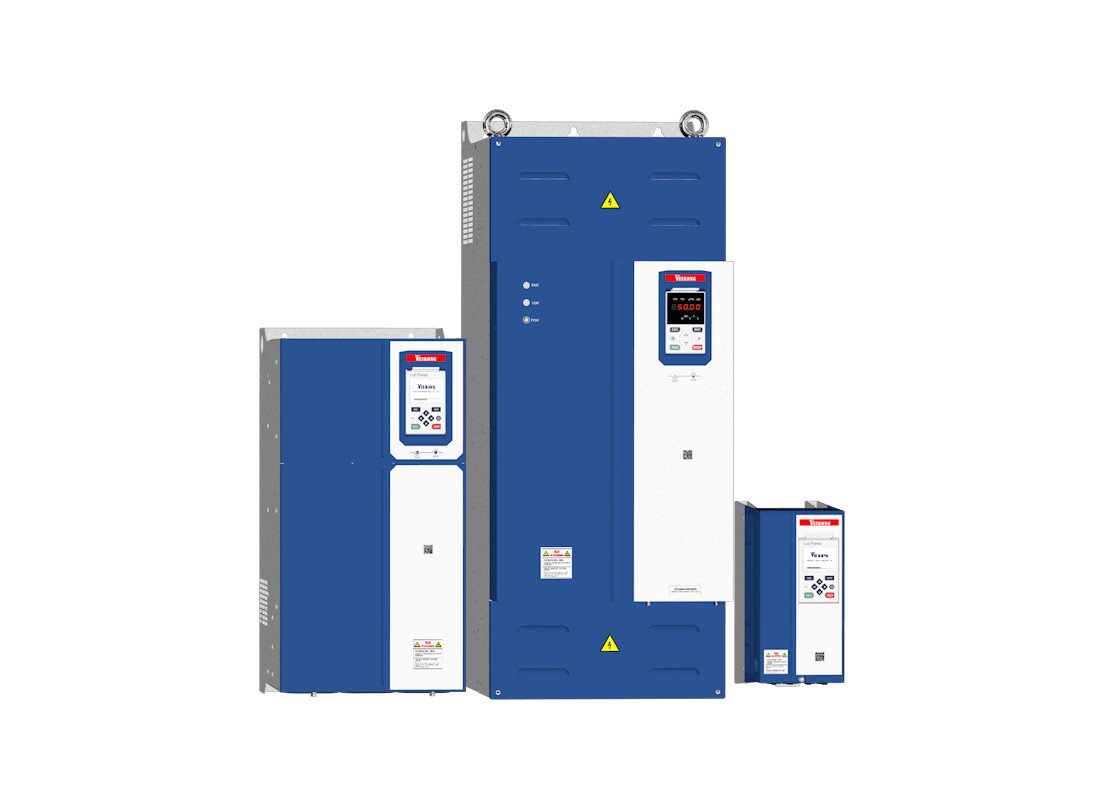

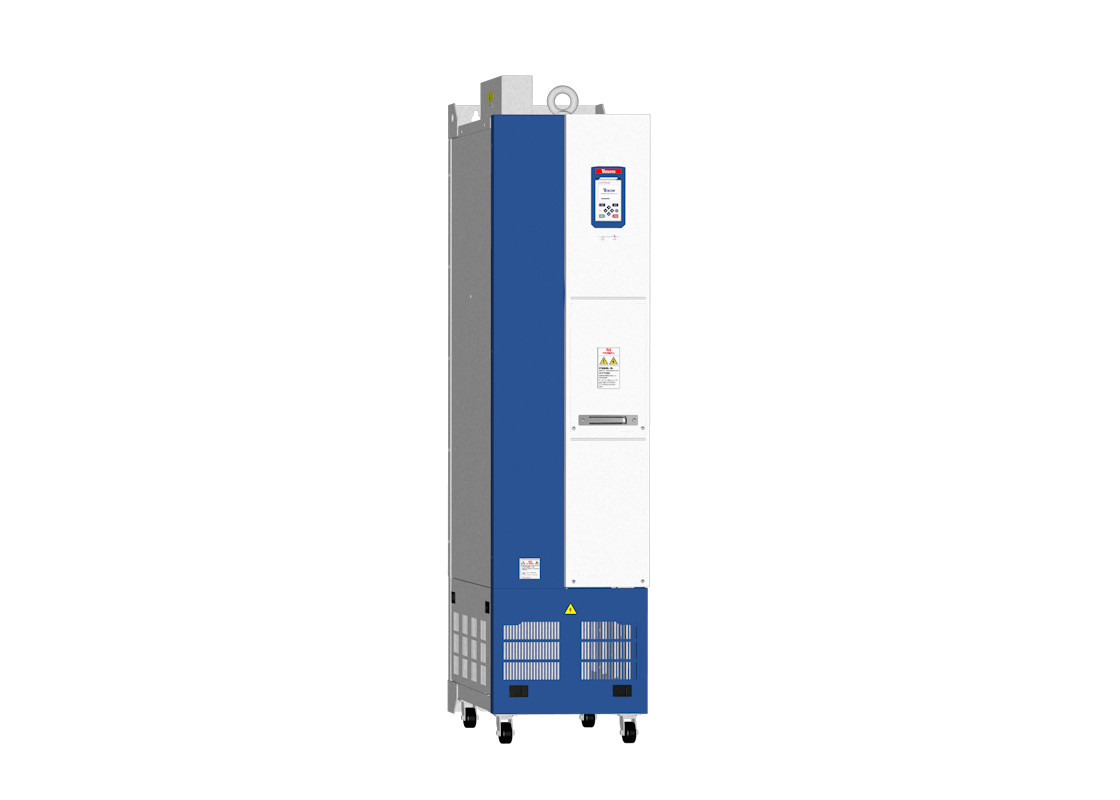

4. VFD580 product images

VFD580 132kw Variable frequency drive equipped with built-in DC reactor 2VFD580 132kw Variable frequency drive equipped with built-in DC reactor 3

5. FAQ

1. who are we?
We are based in Shenzhen, China, start from 2012, sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar pump inverter and Variable frequency inverter (VFD, VSD,AC motor drive)

4. why should you buy from us not from other suppliers?
Company info. & Advantages OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
