VFD580 90KW 380V Variable frequency drive Sensor speed flux vector control with PG card
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD580 |
| Minimum Order Quantity | 2 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 7-8 working days based on quantity |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15490 per/ month |
Product Details
| Power | 90KW | Profinet | Supported |
|---|---|---|---|
| Standard Keypad | LCD Keypad | Software OEM | Supported |
| Input Voltage | 220V/380V | PG Card | Optional |
Product Description
VFD580 90KW 380V Variable frequency drive Sensor speed flux vector control with PG card
1. VFD580 features
1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo position control mode.
2. 15kw and above equipped with built-in DC reactor as standard.
3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.
4. 90kw and below equipped with brake circuit short-circuit protection function.
5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.
6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.
7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.
8. Support Spanish LCD keypad, it is easy to monitor and operator.
9. Support optional STO function
2. Series description
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Three phase :400V | ||||
| VFD580/586-2R2-T4B | 5.6A | 2.2KW |
SIZE A |
Standard built-in |
| VFD580/586-4R0-T4B | 9.4A | 4.0KW | ||
| VFD580/586-5R5-T4B | 13.0A | 5.5KW | ||
| VFD580/586-7R5-T4B | 17.0A | 7.5KW | SIZE B | |
| VFD580/586-011-T4B | 25.0A | 11KW | ||
| VFD580/586-015-T4B | 32.0A | 15KW |
SIZE C |
|
| VFD580/586-018-T4B | 37.0A | 18.5KW | ||
| VFD580/586-022-T4B | 45.0A | 22KW | ||
| VFD580/586-030-T4B | 60.0A | 30KW | SIZE D | |
| VFD580/586-037-T4B | 75.0A | 37KW | ||
| VFD580/586-045-T4 (B) | 90.0A | 45KW | SIZE E |
Optional built-in |
| VFD580/586-055-T4 (B) | 110.0A | 55KW | ||
| VFD580/586-075-T4 (B) | 152.0A | 75KW | SIZE F |
Optional built-in |
| VFD580/586-090-T4 (B) | 176.0A | 90KW | ||
| VFD580/586-110-T4 | 210.0A | 110KW |
SIZE G |
Circumscribed |
| VFD580/586-132-T4 | 253.0A | 132KW | ||
| VFD580/586-160-T4 | 304.0A | 160KW | SIZE H | |
| VFD580/586-200-T4 | 380.0A | 200KW |
SIZE I |
|
| VFD580/586-220-T4 | 426.0A | 220KW | ||
| VFD580/586-250-T4 | 465.0A | 250KW | ||
| VFD580/586-280-T4 | 520.0A | 280KW | SIZE J | |
| VFD580/586-315-T4 | 585.0A | 315KW | ||
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Single phase/Three phase :220V | ||||
| VFD580/586-0R7-S2B (T2B) | 5.6A | 0.75KW |
SIZE A |
Standard built-in |
| VFD580/586-1R5-S2B (T2B) | 8.0A | 1.5KW | ||
| VFD580/586-2R2-S2B (T2B) | 10.6A | 2.2KW | ||
| VFD580/586-4R0-S2B (T2B) | 17.0A | 4.0KW | SIZE B | |
| VFD580/586-5R5-S2B (T2B) | 25.0A | 5.5KW | ||
| VFD580/586-7R5-S2B (T2B) | 32.0A | 7.5KW | SIZE C | |
| VFD580/586-011-S2B (T2B) | 45.0A | 11KW | ||
| VFD580/586-015-S2B (T2B) | 60.0A | 15KW | SIZE D | |
| VFD580/586-018-S2B (T2B) | 75.0A | 18.5KW | ||

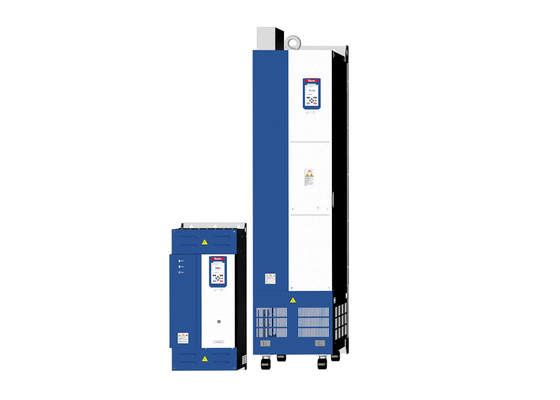

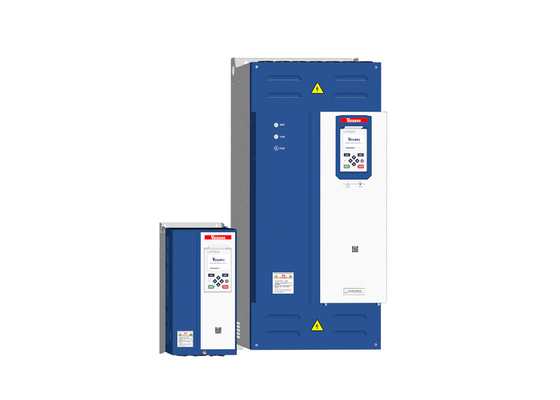

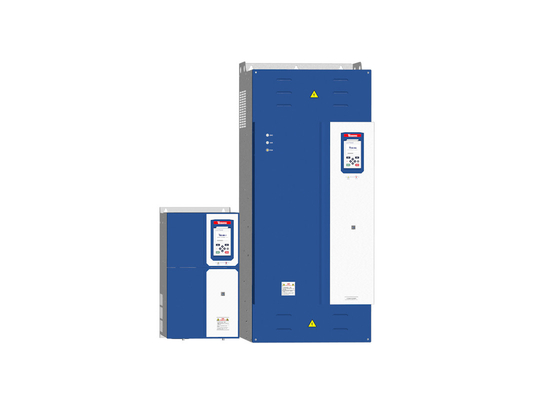

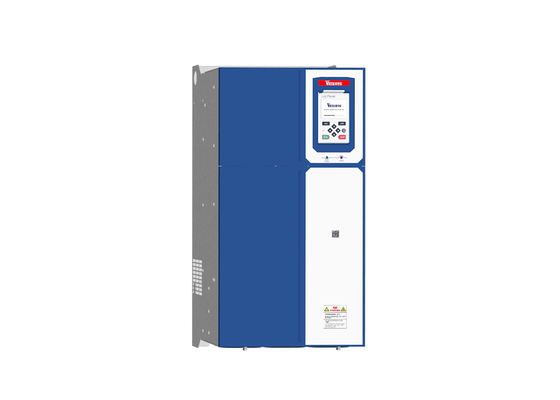

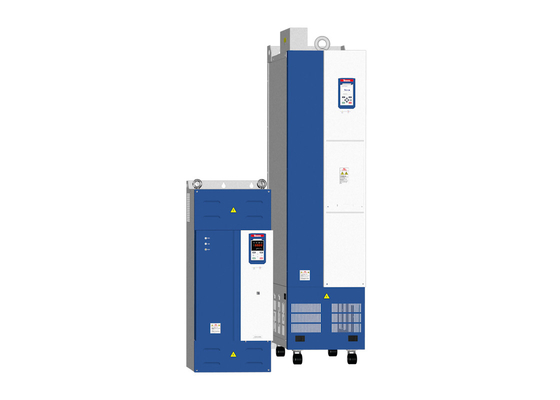

3. VFD580 product images
4. The factory environment and manufacturing and testing process here
Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!
Veikong is a professional solar pump inverter in China with the experience of more than 20 years. During these years, we put many fund and energy into researching and developing department for improving our products and gaining more market. We are trying to send our products to every corner of the world where needing inverters!
