VFD580 45KW 380V Powerful Performance Variable frequency Inverter in higher applications
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD580 |
| Minimum Order Quantity | 2 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 7-8 working days based on quantity |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15490 per/ month |
Product Details
| Power | 45KW | Frequency | 50/60hz |
|---|---|---|---|
| Keypad | Support LCD And LED Keypad Optional | STO Function | Support |
| Current | 25A | Software OEM | Support |
| High Light | 45KW VFD580 Variable frequency Inverter,380V VFD580 Variable frequency Inverter,VFD580 Variable frequency Inverter |
||
Product Description
VFD580 45KW 380V Powerful Performance Variable frequency Inverter in higher applications
1. Main features of VEIKONG VFD580
1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo position control mode.
2. 15kw and above equipped with built-in DC reactor as standard.
3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.
4. 90kw and below equipped with brake circuit short-circuit protection function.
5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.
6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.
7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.
8. Support Spanish LCD keypad, it is easy to monitor and operator.
9. Support optional STO function.
2. VFD580 series control circuit terminals
| Type | Terminal symbol | Terminal name | Terminal function description |
| Analog input | VREF |
Analog input reference voltage |
VREF can choose 10V or 15V, switch between 10V and 15V of VREF throughthe "VREF" toggle switch, the factory default is 10V 10V3%, |
| 10V+3%,15V+3% | |||
| The maximum output current is 30mA, that is, the recommended external potentiometer resistance range: 1K~51K |
|||
| GND | Analog input ground | Internally isolated from COM. 0V | |
| AI 1 | Analog input 1 | Only input voltage:-10V~10V :Impedance 20K |
3. Series description
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Three phase :400V | ||||
| VFD580/586-2R2-T4B | 5.6A | 2.2KW |
SIZE A |
Standard built-in |
| VFD580/586-4R0-T4B | 9.4A | 4.0KW | ||
| VFD580/586-5R5-T4B | 13.0A | 5.5KW | ||
| VFD580/586-7R5-T4B | 17.0A | 7.5KW | SIZE B | |
| VFD580/586-011-T4B | 25.0A | 11KW | ||
| VFD580/586-015-T4B | 32.0A | 15KW |
SIZE C |
|
| VFD580/586-018-T4B | 37.0A | 18.5KW | ||
| VFD580/586-022-T4B | 45.0A | 22KW | ||
| VFD580/586-030-T4B | 60.0A | 30KW | SIZE D | |
| VFD580/586-037-T4B | 75.0A | 37KW | ||
| VFD580/586-045-T4 (B) | 90.0A | 45KW | SIZE E |
Optional built-in |
| VFD580/586-055-T4 (B) | 110.0A | 55KW | ||
| VFD580/586-075-T4 (B) | 152.0A | 75KW | SIZE F |
Optional built-in |
| VFD580/586-090-T4 (B) | 176.0A | 90KW | ||
| VFD580/586-110-T4 | 210.0A | 110KW |
SIZE G |
Circumscribed |
| VFD580/586-132-T4 | 253.0A | 132KW | ||
| VFD580/586-160-T4 | 304.0A | 160KW | SIZE H | |
| VFD580/586-200-T4 | 380.0A | 200KW |
SIZE I |
|
| VFD580/586-220-T4 | 426.0A | 220KW | ||
| VFD580/586-250-T4 | 465.0A | 250KW | ||
| VFD580/586-280-T4 | 520.0A | 280KW | SIZE J | |
| VFD580/586-315-T4 | 585.0A | 315KW | ||
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Single phase/Three phase :220V | ||||
| VFD580/586-0R7-S2B (T2B) | 5.6A | 0.75KW |
SIZE A |
Standard built-in |
| VFD580/586-1R5-S2B (T2B) | 8.0A | 1.5KW | ||
| VFD580/586-2R2-S2B (T2B) | 10.6A | 2.2KW | ||
| VFD580/586-4R0-S2B (T2B) | 17.0A | 4.0KW | SIZE B | |
| VFD580/586-5R5-S2B (T2B) | 25.0A | 5.5KW | ||
| VFD580/586-7R5-S2B (T2B) | 32.0A | 7.5KW | SIZE C | |
| VFD580/586-011-S2B (T2B) | 45.0A | 11KW | ||
| VFD580/586-015-S2B (T2B) | 60.0A | 15KW | SIZE D | |
| VFD580/586-018-S2B (T2B) | 75.0A | 18.5KW | ||

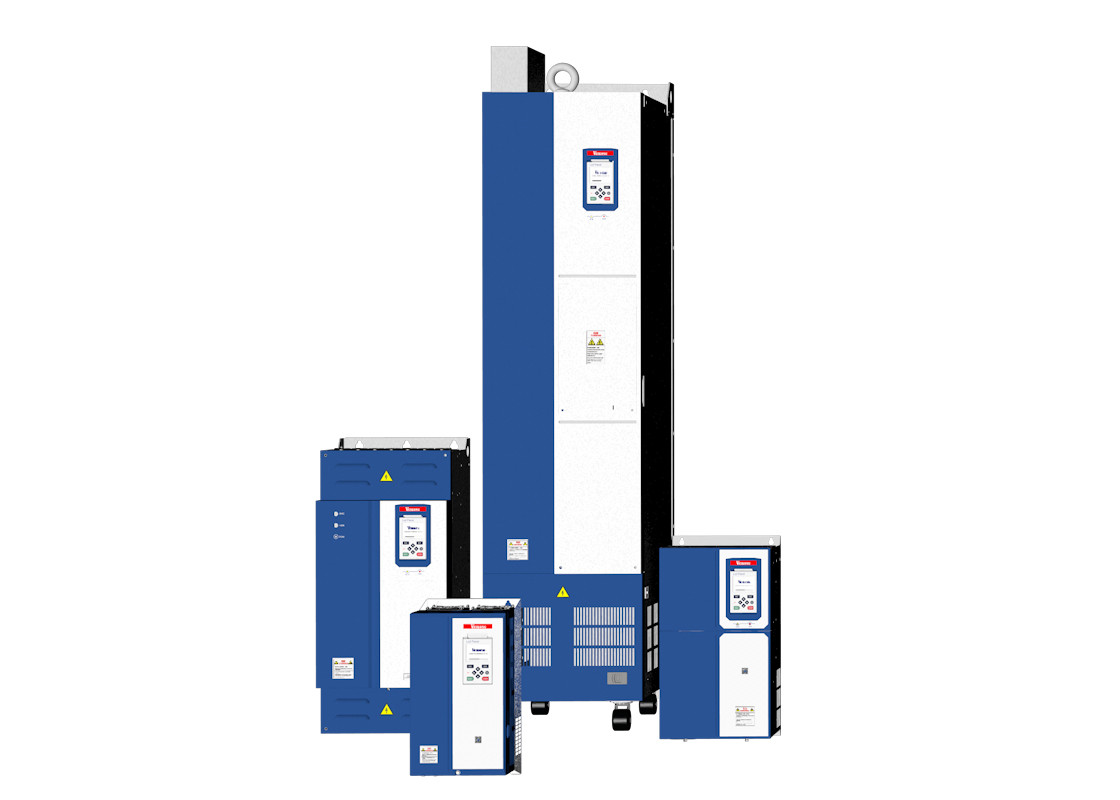

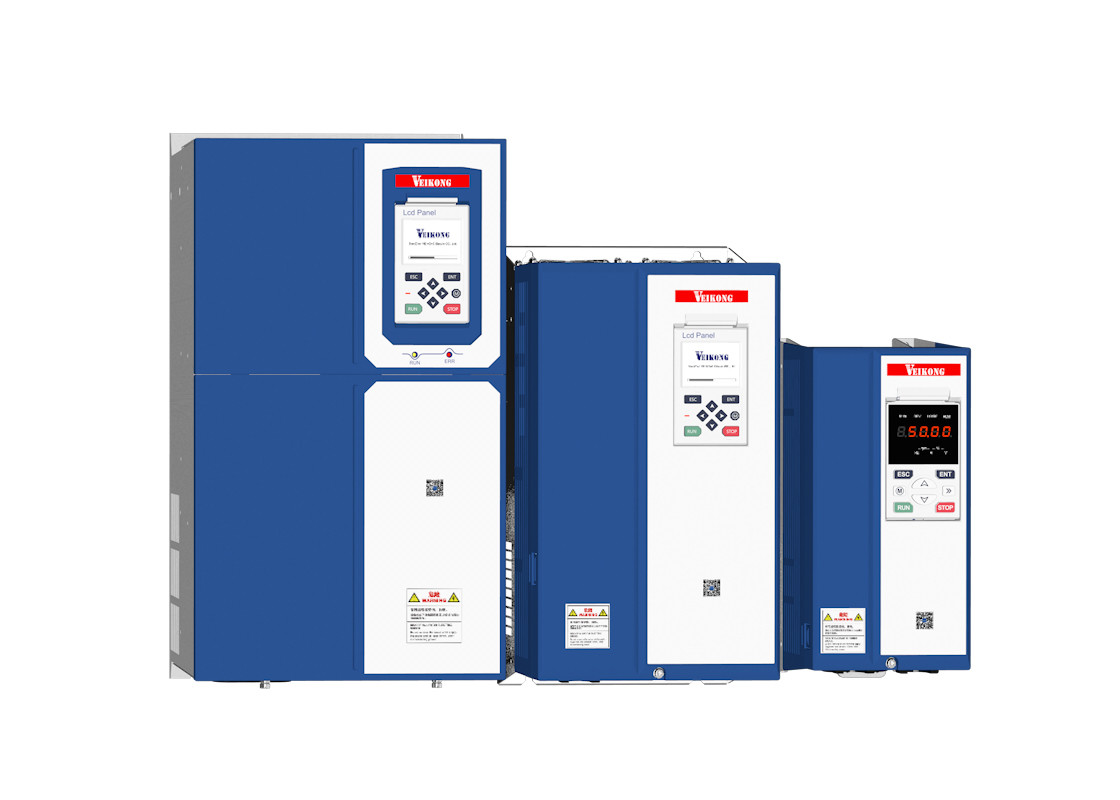

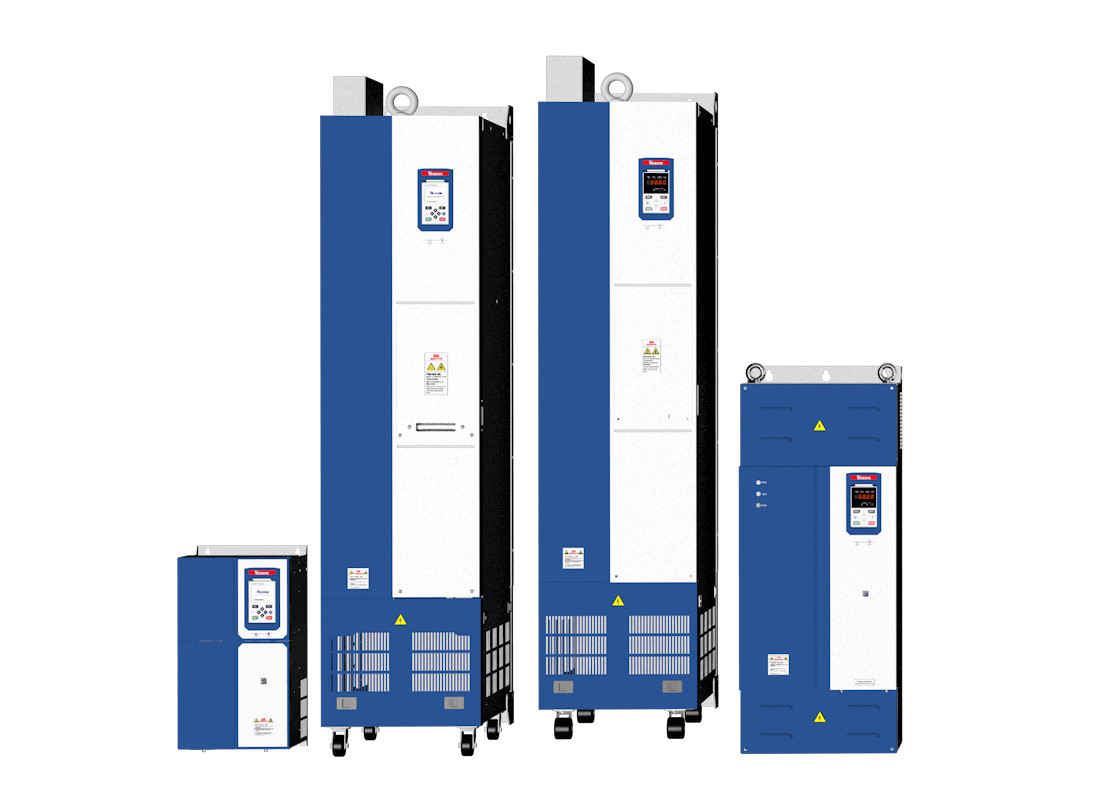

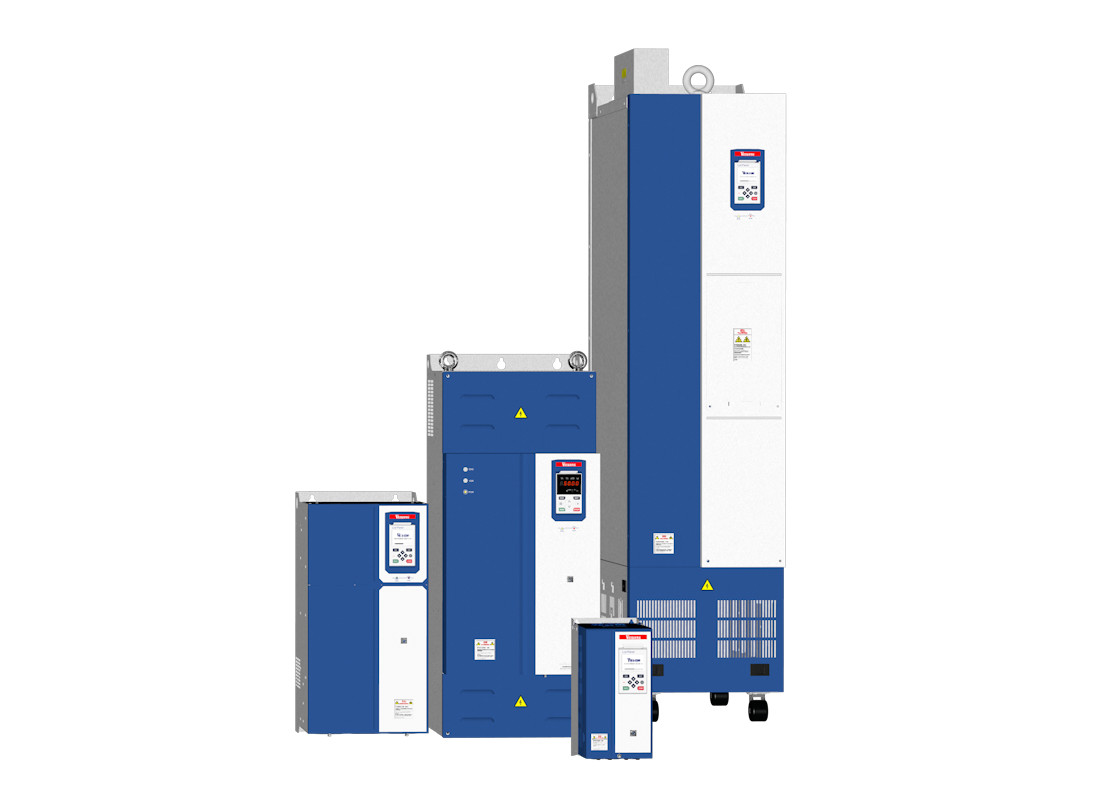

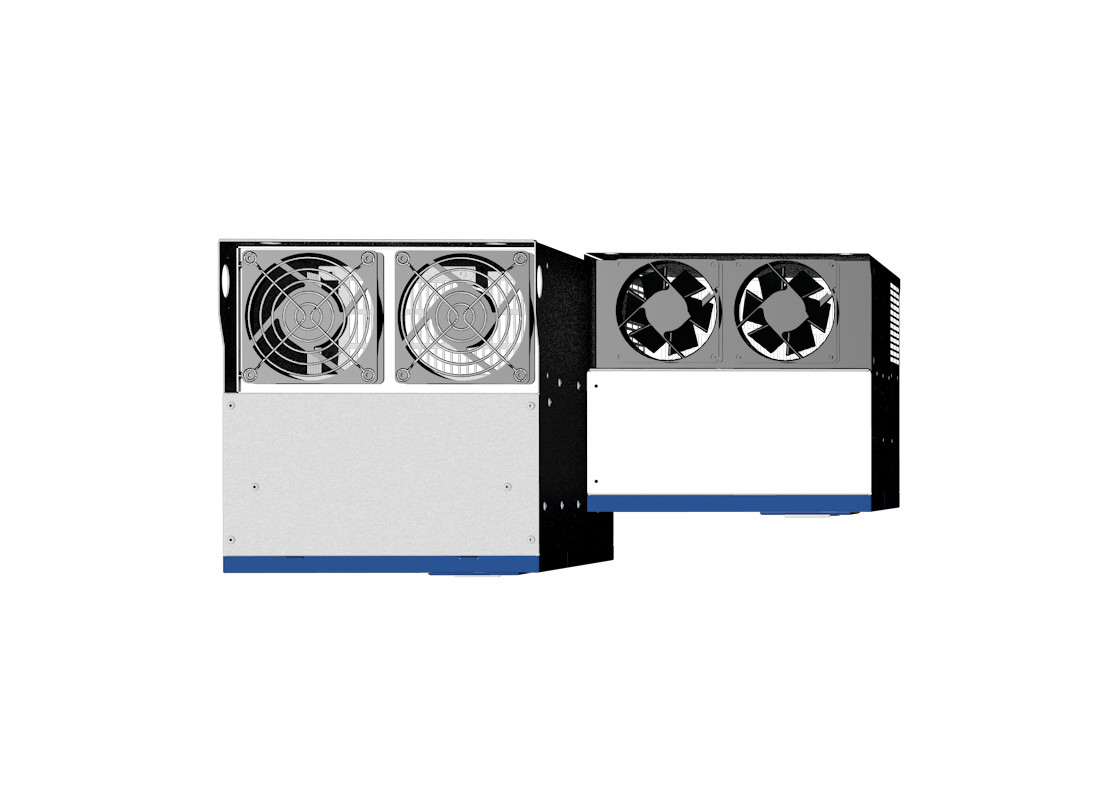

4. VFD580 product images
5. FAQ
1. Can you accept to use our logo?
we accept OEM production.
2. How can i get the after-service?
Our R&D team with more than 20 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
3. How about your products quality inspection?
We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.
