VFD580 37KW 380V VFD Compatible With Multiple Motors Hardware Configuration
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD580 |
| Minimum Order Quantity | 2 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 7-8 working days based on quantity |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15490 per/ month |
Product Details
| Power | 37KW | Warranty | 18months |
|---|---|---|---|
| Positional Control | Support | Keypad Language | Russian/Turkish/Spanish/Arabic |
| GPRS Function | Optional | Input DC Reactor | Yes |
| High Light | 380V VFD580,hardware configuration VFD580,37KW VFD580 |
||
Product Description
VFD580 37KW 380V VFD compatible with multiple motors hardware configuration
1.Product Description:
Veikong releases VFD580 series with all-round functions
The newly released VFD580 series from Veikong is a one-stop solution for motor control. Developed to be compatible with both IM and PMSM motors, this series is equipped with all-round functions for better performance. It offers excellent safety features with the inclusion of the STO function for providing protection to the operator and equipment.
The VFD580 series offers a great deal of flexibility in terms of communication with the addition of communication options such as RS485, Canopen, and Profinet. It is suitable for different special applications, for example, the fly shear. This feature further adds to the versatility of the device.
In conclusion, the VFD580 series is an optimal choice for industrial applications that require reliability, safety, and ease-of-use. The multiple features packed into this series ensure maximum efficiency when it comes to motor control.
2. Definition of VFD580 control circuit terminals:
| Type | Terminal symbol | Terminal Name | Terminal function description |
|
Analog input |
VREF |
Analog input reference voltage |
VREF can choose 10V or 15V, switch between 10V and 15V of VREF through the "VREF" toggle switch, the factory default is 10V 10V±3%, |
| 10V±3% , 15V±3% | |||
| The maximum output current is 30mA, that is, the recommended external potentiometer resistance range: 1kΩ ~51kΩ | |||
| GND | Analog input ground | Internally isolated from COM, 0V | |
| AI1 | Analog input 1 | Only input voltage:-10V~10V:lmpedance 20kΩ | |
|
AI2 |
Analog input 2 |
Input voltage:0~10V :lmpedance 20kΩ , Maximum input voltage | |
| I Input current:0~20mA:lmpedance 500Ω , Maximum input current | |||
| Through the jumper switch AI2 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input. | |||
|
AI3 |
Analog input 3 |
Input voltage:0~10V :lmpedance 20kΩ , Maximum input voltage | |
| Input current:0~20mA:lmpedance 500Ω , Maximum input current | |||
| Through the jumper switch AI3 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input. | |||
|
Analog output |
AO1 | Analog output 1 | Output 0 ~10v: lmpedance >10kΩ |
|
AO2 |
Analog output 2 |
Output voltage:0~10V :lmpedance >10kΩ | |
| Output current:0~20mA:lmpedance 200Ω~500Ω | |||
| Through the jumper switch AO2 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output. | |||
| GND | Analog ground | Internal isolation from COM and 0V | |
|
Switch input |
+24V |
+24V current |
24V ± 10%, internally isolated from GND and 0V |
| Maximum output current :200mA | |||
| To provide 24V power supply, generally used as a digital input and output terminal power supply and external sensor power. | |||
| When the "24V/PLC" toggle switch is ON, +24V and PLC are connected | |||
|
PLC |
Digital input terminal common |
The factory default setting is connected PLC with +24V terminal for on-off input high and low level switch | |
| When using the external power input, it will disconnect the connector slip of PLC with the +24V | |||
| COM | +24V ground | Internal isolation from GND and 0V | |
|
DI1 ~DI4 /DI6 ~DI7 |
Digital input terminal 1-4 or 6-7 |
Optocoupler isolation, compatible with bipolar input | |
| Frequency range:0~200Hz | |||
| Voltage range:10V~30V | |||
|
HDI |
Digital input terminal /High-speed pulse input |
igital input terminal :same as DI1~DI4 and DI6-DI7 | |
| Pulse input frequency input :0~50KHz | |||
| Voltage range:15V~30V | |||
|
Switch output |
DO1 |
Open collector output |
Optocoupler isolation |
| Voltage range:0V~28V | |||
| Current range:0mA ~50mA | |||
| YCOM | DO1 Ground | Internally isolated from GND, 0V, COM | |
|
HDO |
Open collector output /High-speed pulse output |
Open collector output :same as DO1 | |
| High-speed pulse output :0~50KHz | |||
| COM Reference ground is COM | |||
| Relay 1 | T1A/T1B/T1C | Relay 1 output | T1A-T1B :normal close |
| T1A-T1C:normal open | |||
| Relay 2 | T2A/T2B/T2C | Relay 2 output | T2A-T2B :normal close |
| T2A-T2C:normal open |
3.VFD580 series control circuit terminals
| Type | Terminal symbol | Terminal name | Terminal function description |
| Analog input | VREF |
Analog input reference voltage |
VREF can choose 10V or 15V, switch between 10V and 15V of VREF throughthe "VREF" toggle switch, the factory default is 10V 10V3%, |
| 10V+3%,15V+3% | |||
| The maximum output current is 30mA, that is, the recommended external potentiometer resistance range: 1K~51K |
|||
| GND | Analog input ground | Internally isolated from COM. 0V | |
| AI 1 | Analog input 1 | Only input voltage:-10V~10V :Impedance 20K |
4. The factory environment and manufacturing and testing process here
Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!

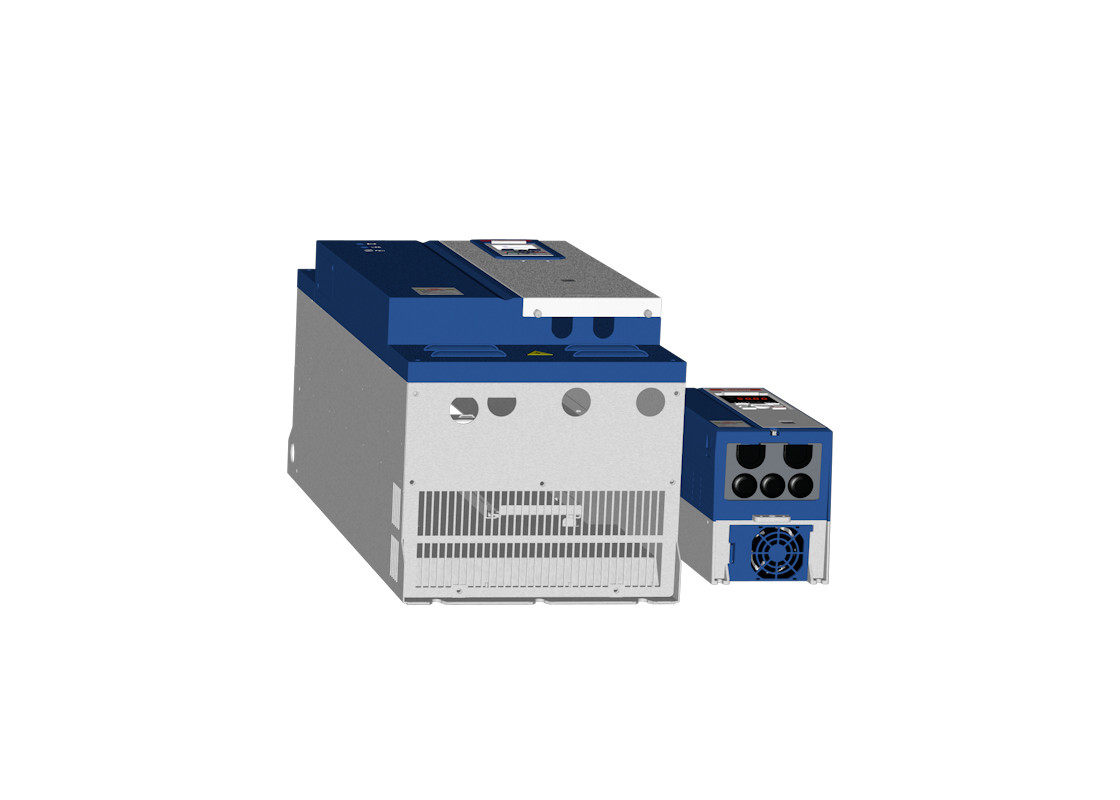

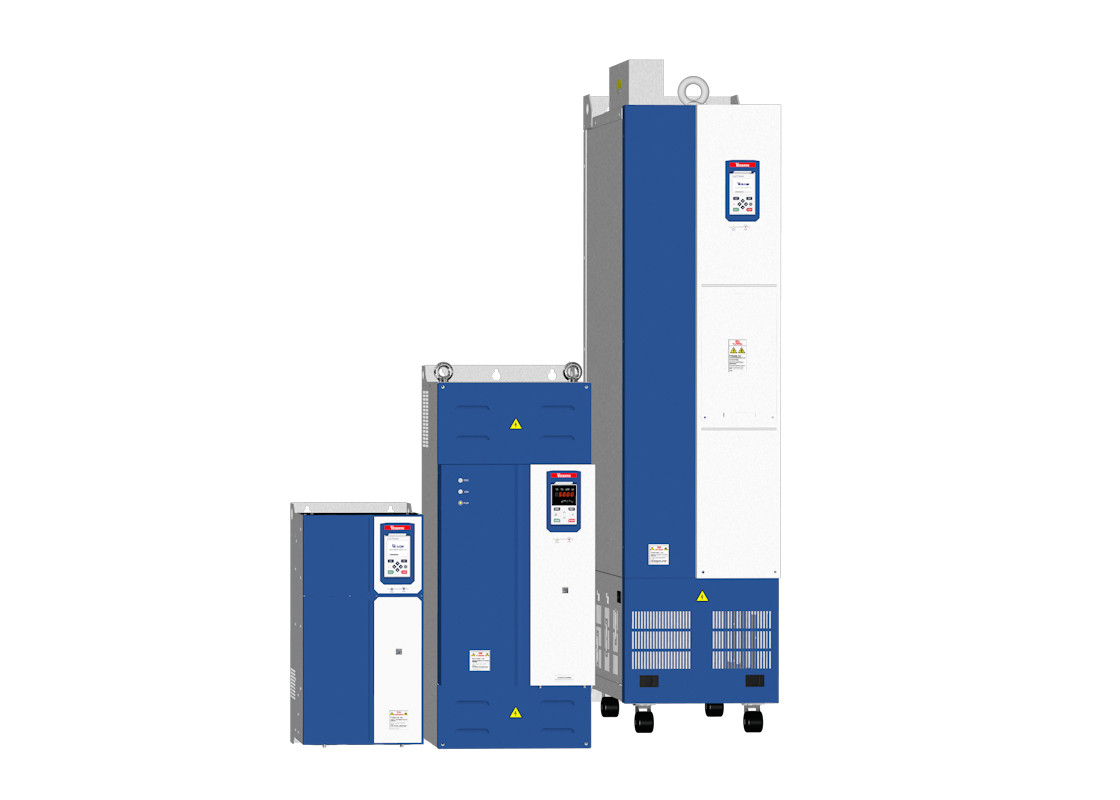

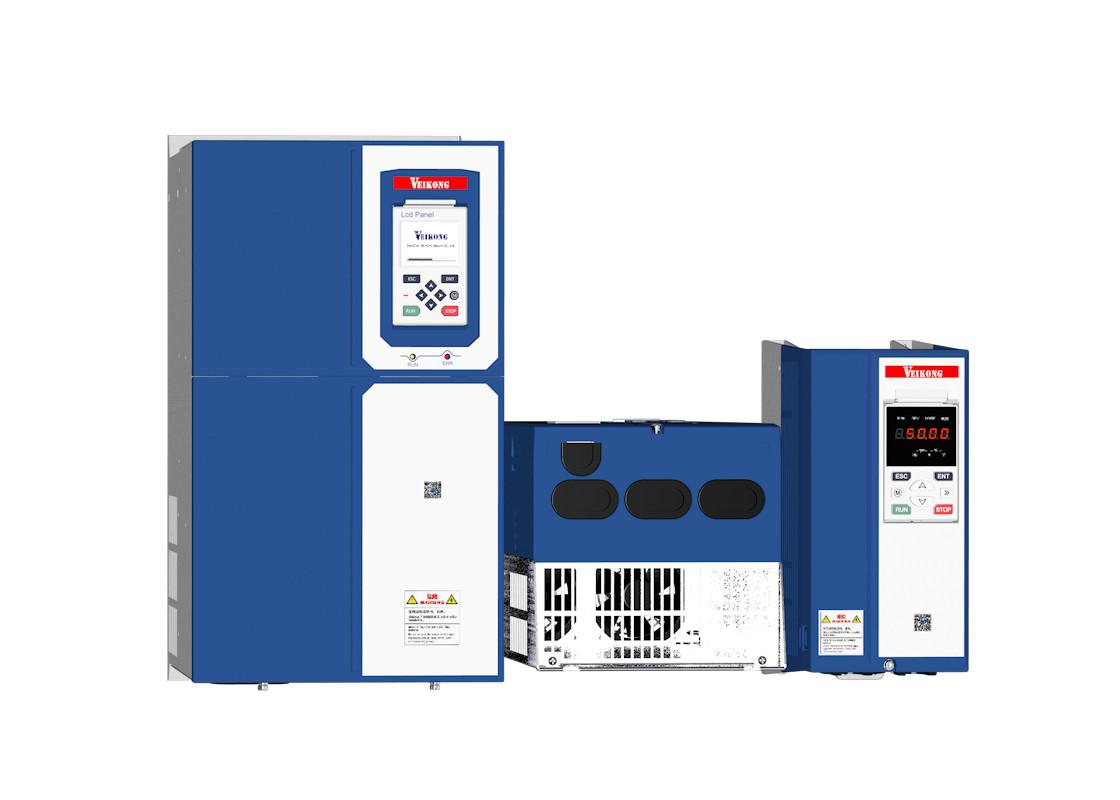

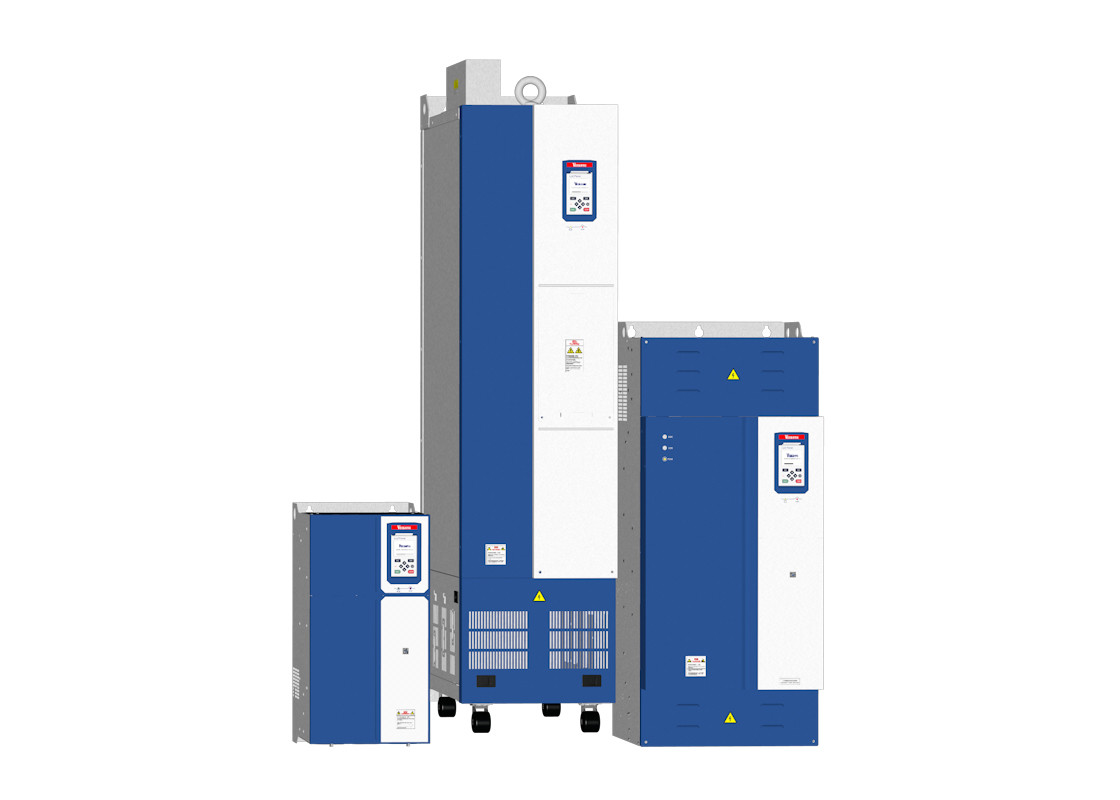

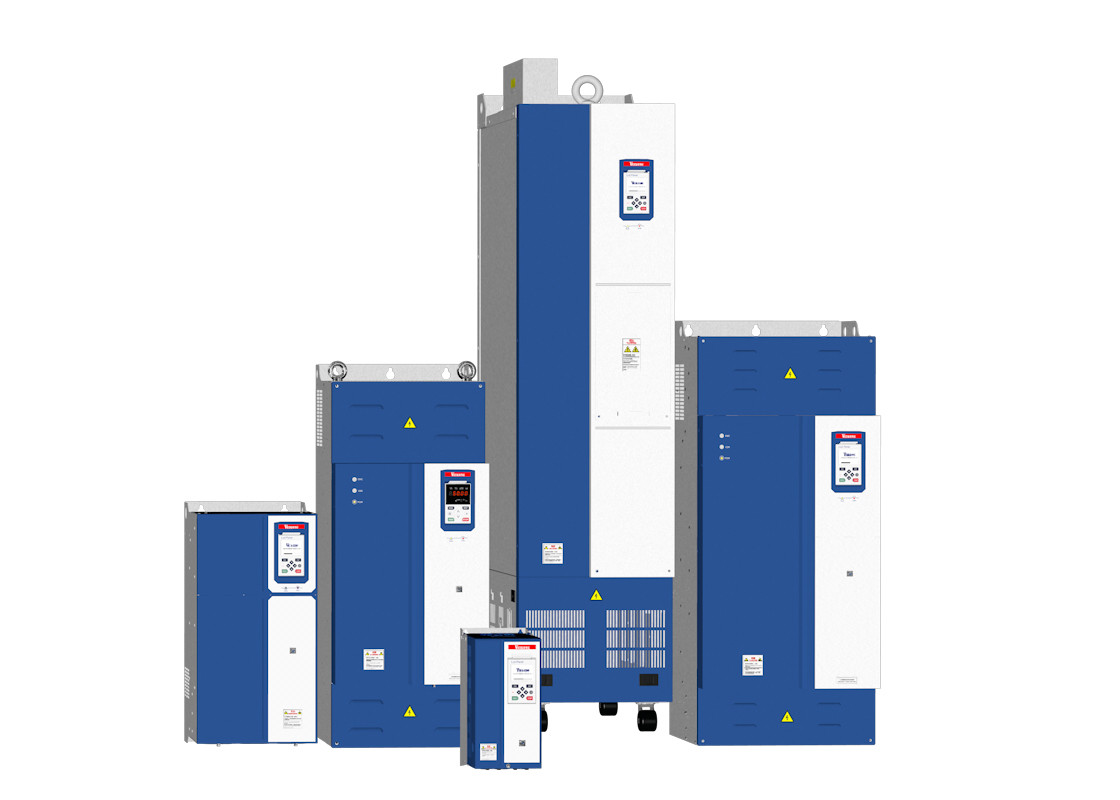

5. VFD580 product images
