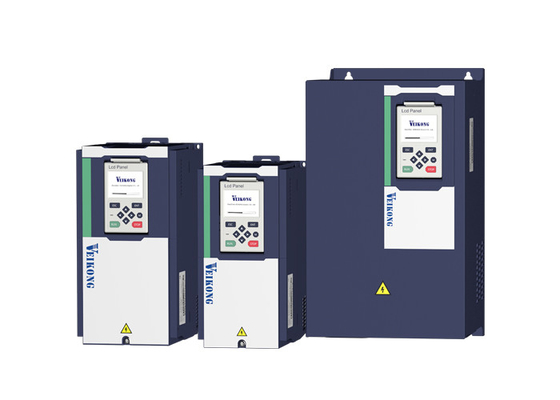

220v 1HP 2HP 3HP 5HP 10HP Single Phase VEIKONG Solar Pump Inverter Hybrid Inverter
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 5 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | Single Phase Inverter | Output Type | Single Phase Or Three Phase |
|---|---|---|---|
| Pump | Ac Pump | Efficiency | 99% |
| Voltage | 220v | Display | LED And LCD |
| Highlight | 5HP VEIKONG Solar Pump inverter,3HP VEIKONG Solar Pump inverter,2HP VEIKONG Solar Pump inverter |
||
Product Description
220v 1HP 2HP 3HP 5HP 10HP Single Phase VEIKONG Solar Pump Inverter hybrid inverter
VEIKONG SOLAR PUMP INVERTER Special feature:
1. Maximizing power generation efficiency of solar modules with the use of advanced MPPT
control technology and automatic MPPT voltage tracking
2. Adjust water outflow of pumps quickly on basis of sunlight intensity change
2. Adjust water outflow of pumps quickly on basis of sunlight intensity change
3. Automatic hibernation and wake up
(1) Hibernate at high water level and wake up at low water lever
(2) Hibernate at sunrise and sunset and wake up at strong sunlight
4. Built-in C3 EMC filter and DSP technology and Infineon PIM design,with functions of light
weak protection,dry run and low voltage,full water warning, overvoltage and overtemperature
protection
5. Advanced calculation for Pump flow and LCD monitoring display
6. Automatic running without any commisioning in keypad control and GPRS monitoring
option(as option)
7. Dual supply capability with change over switch - solar and grid compatible
Electrical Specifications and Power degree
| 220V | 380V | |
| Max input DC voltage | 450V | 810V |
| DC voltage range | 150~450VDC | 300~810VDC |
| Normal working DC voltage | 260V-400V | 400V-650V |
| Recommended input mppt voltage | 330V | 550V |
| MPPT efficiency | >99% | |
| Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
| Output frequency range | 50/60Hz | |
| Max efficiency of the machine | 99% | |
| Power range | 220v 0.75kw to 75kw, 380v 1.5kw-160kw | |
| Cooling method | Air cooling | |
| Protection degree | IP20/IP65 | |
| Altitude | Below 1000m; above 1% for every additional 100m. | |
| Standard | CE/ROHS | |
Product Application
Why chose VEIKONG?
1. Infineon brand IGBT/Fuji IGBT, enduree temperature 175°C
2. Two-lines LED keypad/LCD kaypad
3. Fan: 70 000 hours using life
4. Capacitor: 50 000 hours using life
5. Input phase lacking protection
6. Output short circuit protection
7. Overvoltage protection
9. 10 000-15 000pcs per month production ability
10. 500pcs stock below 90KW
11. CE ISO certification, TUV SGS authority
12. Strong RD department, can update software
