VFD580 18.5KW 380V VFD Variable Frequency Drive Multifunctional And User-Friendly
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD580
Minimum Order Quantity 2 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15490 per/ month
Product Details
Power 18.5KW Voltage Support 220V And 380V
Package Carton And Wooden Case Position Control Support
Protection Level IP20 Upper Computor Supported
High Light

18.5KW VFD Variable Frequency Drive


Multifunctional VFD Variable Frequency Drive

Product Description

VFD580 18.5KW 380V high end Variable frequency multifunctional and user-friendly


1. Main features of VEIKONG VFD580

1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo position control mode.

2. 15kw and above equipped with built-in DC reactor as standard.

3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.

4. 90kw and below equipped with brake circuit short-circuit protection function.

5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.

6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.

7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.

8. Support Spanish LCD keypad, it is easy to monitor and operator.

9. Support optional STO function


2. VFD580 Series description


Model Rated output current Applicable motor Size Brake unit
Three phase :400V
VFD580/586-2R2-T4B 5.6A 2.2KW










VFD580/586-4R0-T4B 9.4A 4.0KW
VFD580/586-5R5-T4B 13.0A 5.5KW
VFD580/586-7R5-T4B 17.0A 7.5KW SIZE B
VFD580/586-011-T4B 25.0A 11KW
VFD580/586-015-T4B 32.0A 15KW



VFD580/586-018-T4B 37.0A 18.5KW
VFD580/586-022-T4B 45.0A 22KW
VFD580/586-030-T4B 60.0A 30KW SIZE D
VFD580/586-037-T4B 75.0A 37KW
VFD580/586-045-T4 (B) 90.0A 45KW SIZE E



VFD580/586-055-T4 (B) 110.0A 55KW
VFD580/586-075-T4 (B) 152.0A 75KW SIZE F



VFD580/586-090-T4 (B) 176.0A 90KW
VFD580/586-110-T4 210.0A 110KW








VFD580/586-132-T4 253.0A 132KW
VFD580/586-160-T4 304.0A 160KW SIZE H
VFD580/586-200-T4 380.0A 200KW



VFD580/586-220-T4 426.0A 220KW
VFD580/586-250-T4 465.0A 250KW
VFD580/586-280-T4 520.0A 280KW SIZE J
VFD580/586-315-T4 585.0A 315KW


Model Rated output current Applicable motor Size Brake unit
Single phase/Three phase :220V
VFD580/586-0R7-S2B (T2B) 5.6A 0.75KW










VFD580/586-1R5-S2B (T2B) 8.0A 1.5KW
VFD580/586-2R2-S2B (T2B) 10.6A 2.2KW
VFD580/586-4R0-S2B (T2B) 17.0A 4.0KW SIZE B
VFD580/586-5R5-S2B (T2B) 25.0A 5.5KW
VFD580/586-7R5-S2B (T2B) 32.0A 7.5KW SIZE C
VFD580/586-011-S2B (T2B) 45.0A 11KW
VFD580/586-015-S2B (T2B) 60.0A 15KW SIZE D
VFD580/586-018-S2B (T2B) 75.0A 18.5KW


3. The introduction of our company Veikong

      Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.


Veikong, your trusted supplier!

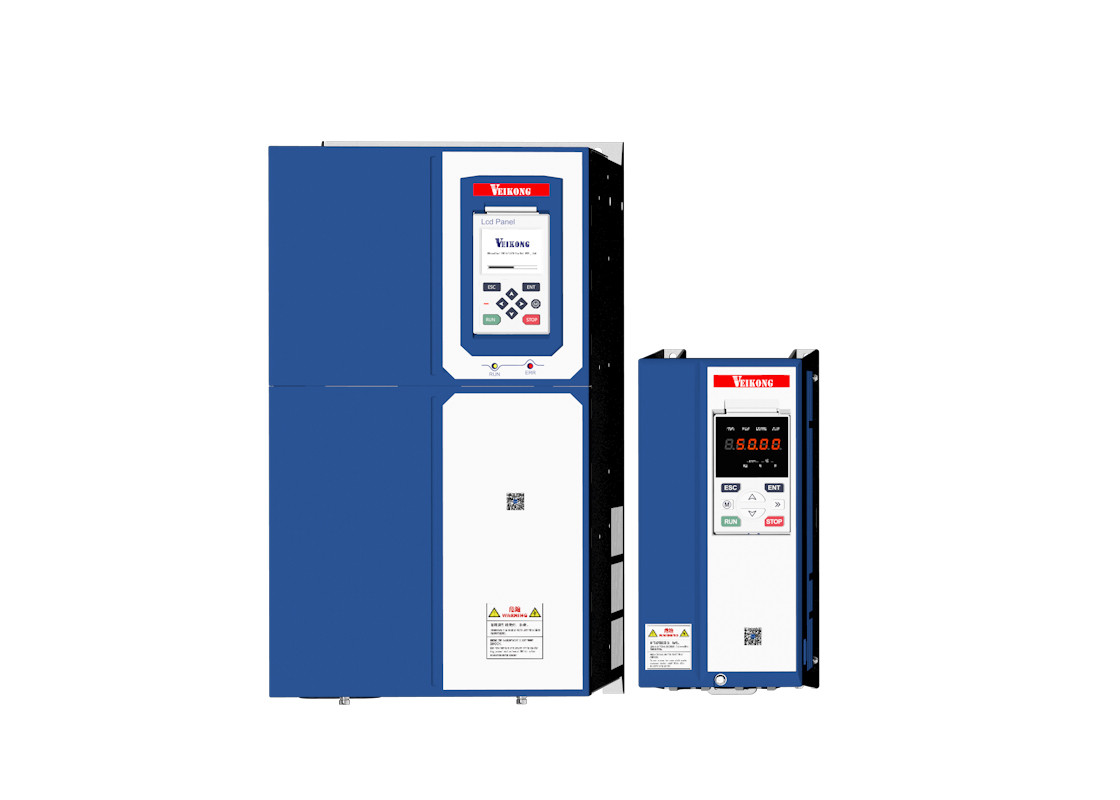

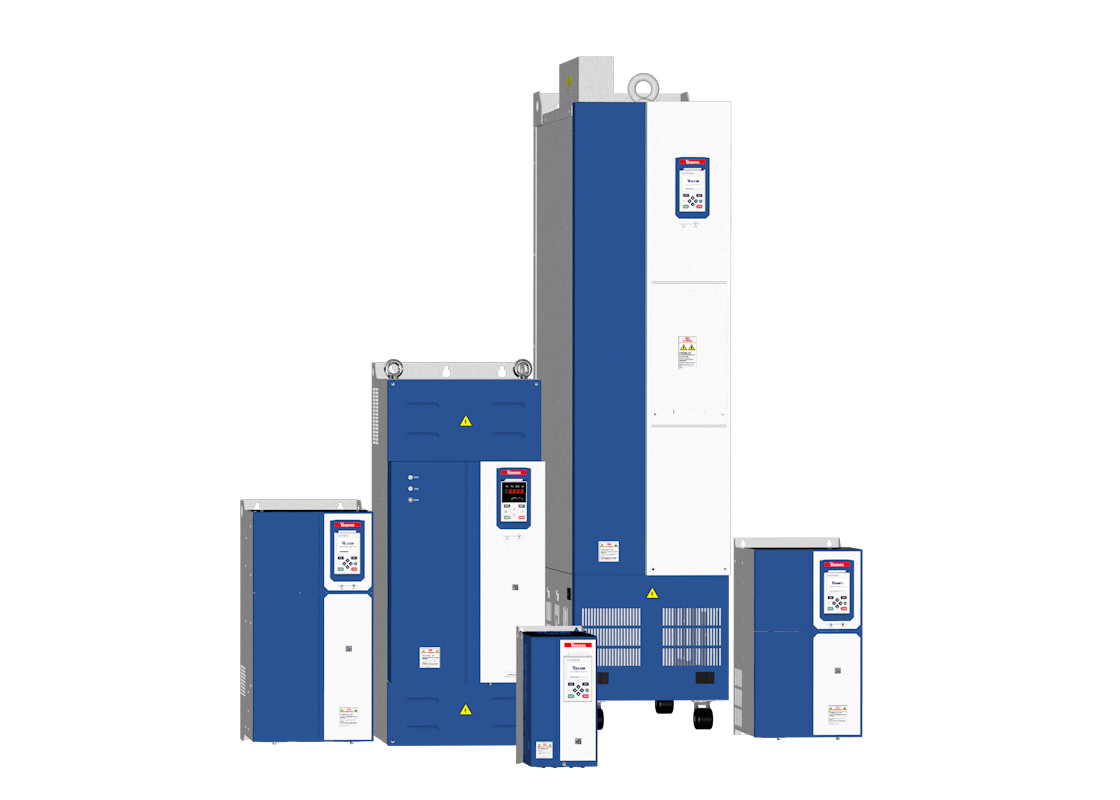

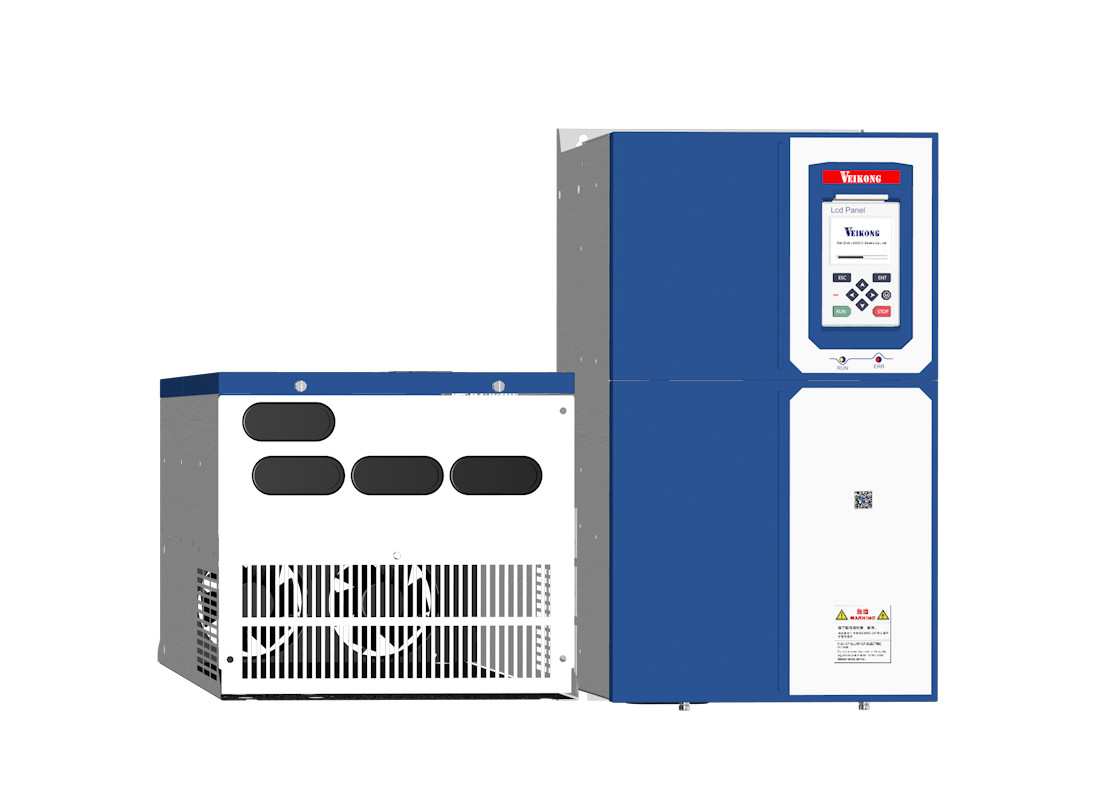

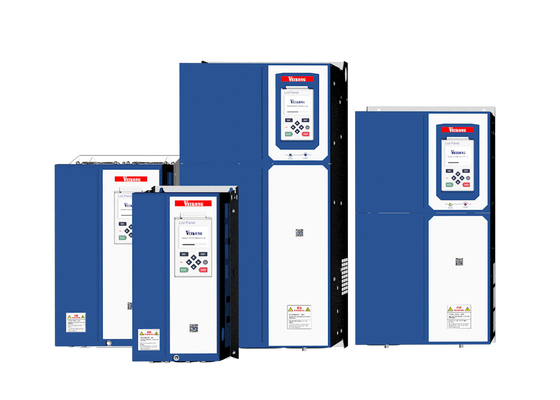

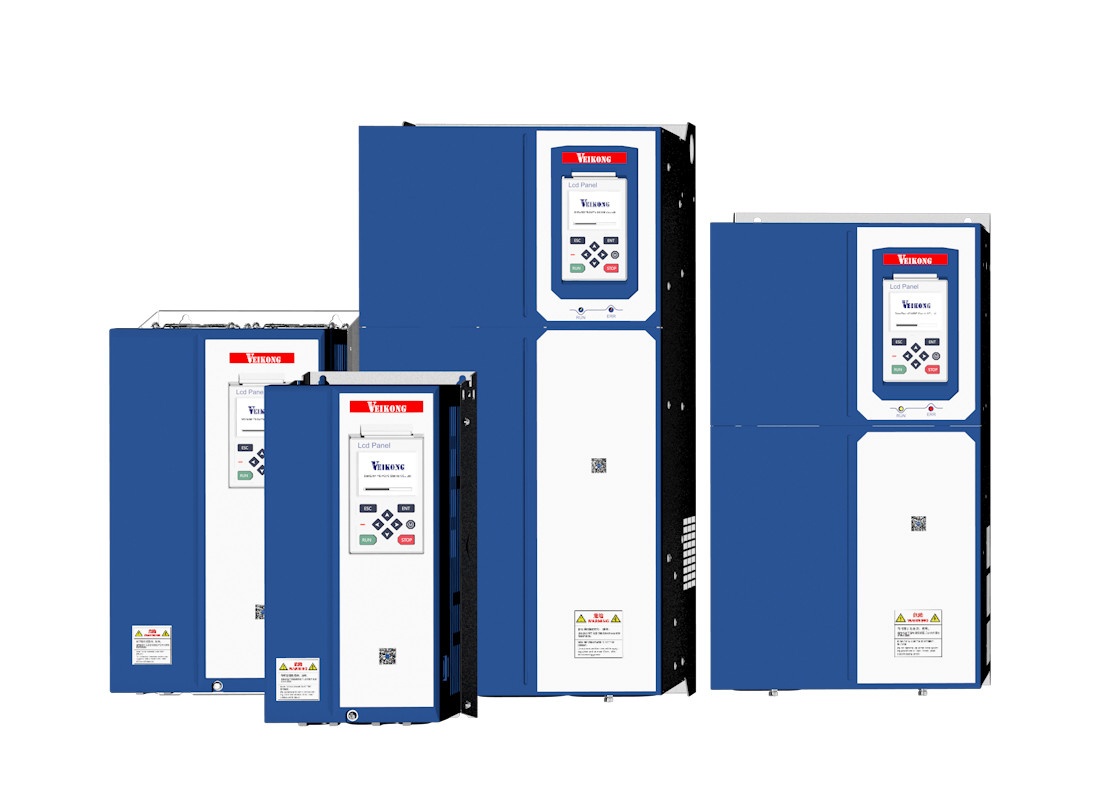

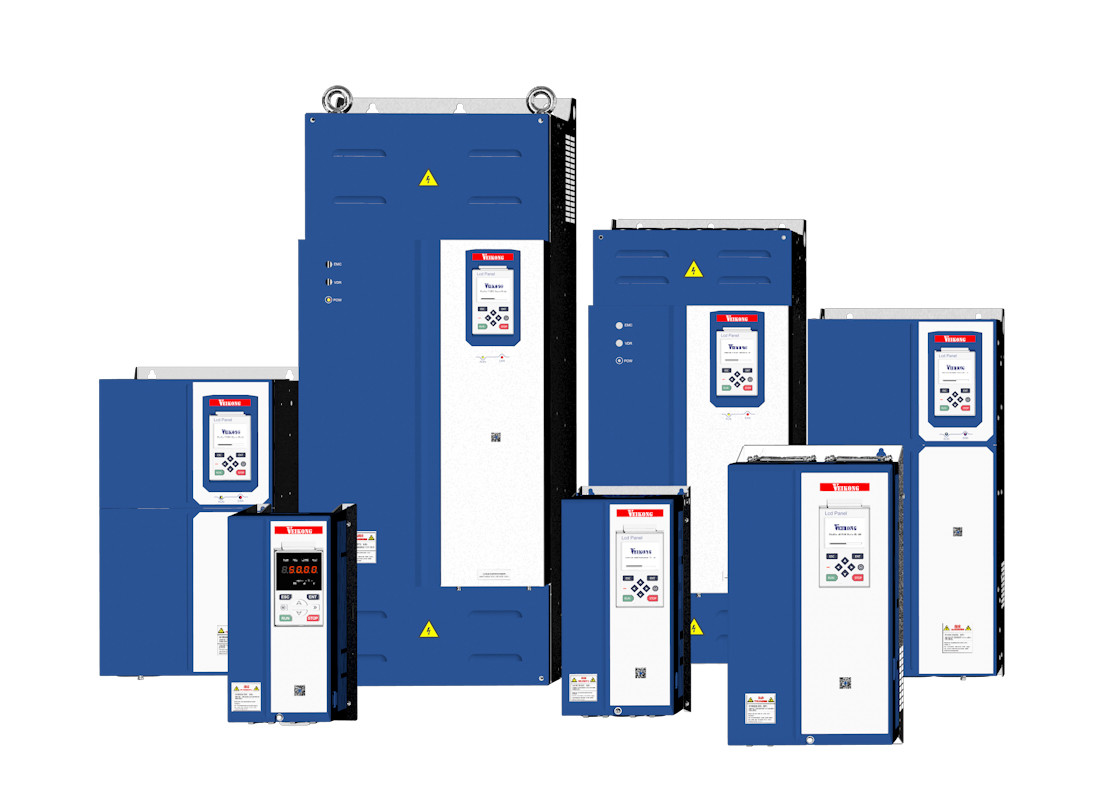

4. VFD580 product images

VFD580 18.5KW 380V VFD Variable Frequency Drive Multifunctional And User-Friendly 0VFD580 18.5KW 380V VFD Variable Frequency Drive Multifunctional And User-Friendly 1
