VFD580 15KW 380V Variable Speed Drive With Position Control For Spindle Machine
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD580
Minimum Order Quantity 2 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15490 per/ month
Product Details
Power 7.5KW Frequency 50/60hz
Voltage Support 220V And 380V Language Support Spanish, Russian, Turkish
Package Carton And Wooden Case Keypad Standard Newest LCD Keypad
Position Control Support
High Light

15KW Variable Speed Drive


Variable Speed Drive For Spindle Machine

Product Description

VFD580 15KW 380V Variable speed drive with position control which can be used for spindle machine


1. Main features of VEIKONG VFD580

1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo position control mode.

2. 15kw and above equipped with built-in DC reactor as standard.

3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.

4. 90kw and below equipped with brake circuit short-circuit protection function.

5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.

6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.

7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.

8. Support Spanish LCD keypad, it is easy to monitor and operator.

9. Support optional STO function


2. VFD580 Technical Speficiation:

Item Specification




Input Voltage

1 phase/3phase 220V:200V ~240V

3 phase 380V-480V:380V ~480V

Allowed Voltage

fluctuation range

-15% ~ 10%
Input frequency 50Hz / 60Hz ,fluctuation less than 5%
Input filter SIZE C and above built-in DC reactor



Output Voltage 3phase :0 ~input voltage
Overload capacity 150% rated output current for 60 seconds; 180% rated output current for 10 seconds; 200% rated output current for 2.0 seconds















Control mode

V/f control

Sensorless flux vector control without PG card(SVC )

Sensor speed flux vector control with PG card (VC)

Operating mode Speed control, torque control (SVC and VC), position servo


Speed range

1:100 (V/f )

1:200 (SVC )

1:1000 (VC )


Speed control accuracy

±0.5% (V/f )

±0.2% (SVC )

±0.01% (VC )

Frequency range

Standard :0.00 ~600.00Hz

High frequency :0.0 ~ 1200.0Hz(MT580),0.0 ~2500.0Hz(MT586)

Input frequency


Digital setting: 0.01 Hz or 0.01%

Analog setting: maximum frequency x 0.025%


Startup torque

150%/0.5Hz (V/f )

180%/0.25Hz (SVC )

180%/0Hz (VC )

Torque control accuracy

SVC: 8% within 5Hz, 5% above 5Hz

VC: 3.0%

Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

Position control

Position command supports internal position, pulse position input, CANopen position

command, EtherCAT position command (VFD586); supports position fully closed loop mode


DC bus voltage control

VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency 1kHz ~ 16kHz(Varies depending on the type)
Startup method Direct start (can be superimposed DC brake); speed tracking start
Stop method Deceleration stop (can be superimposed DC braking); free to stop


Featured functions

Built-in delay unit, comparator unit and logic unit, etc., two groups of motor parameter switching, software switching output phase sequence, spindle orientation, online

identification of motor parameters

3. The introduction of our company Veikong

      Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.


Veikong, your trusted supplier!

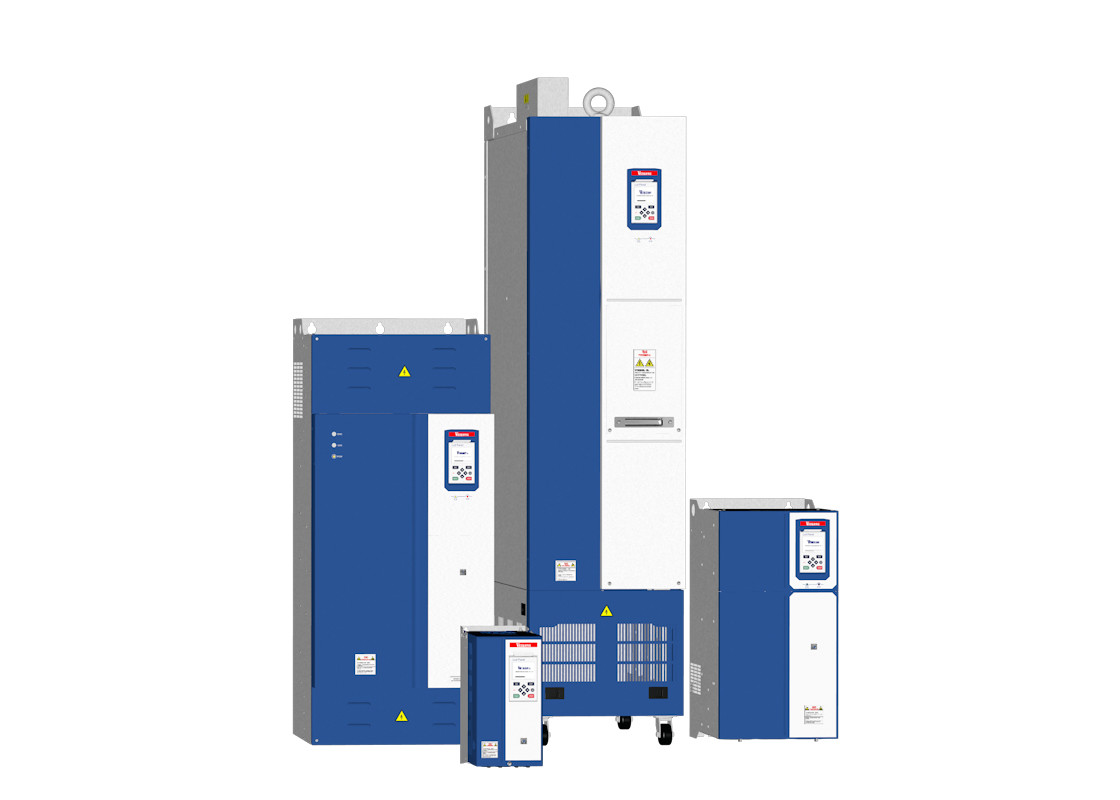

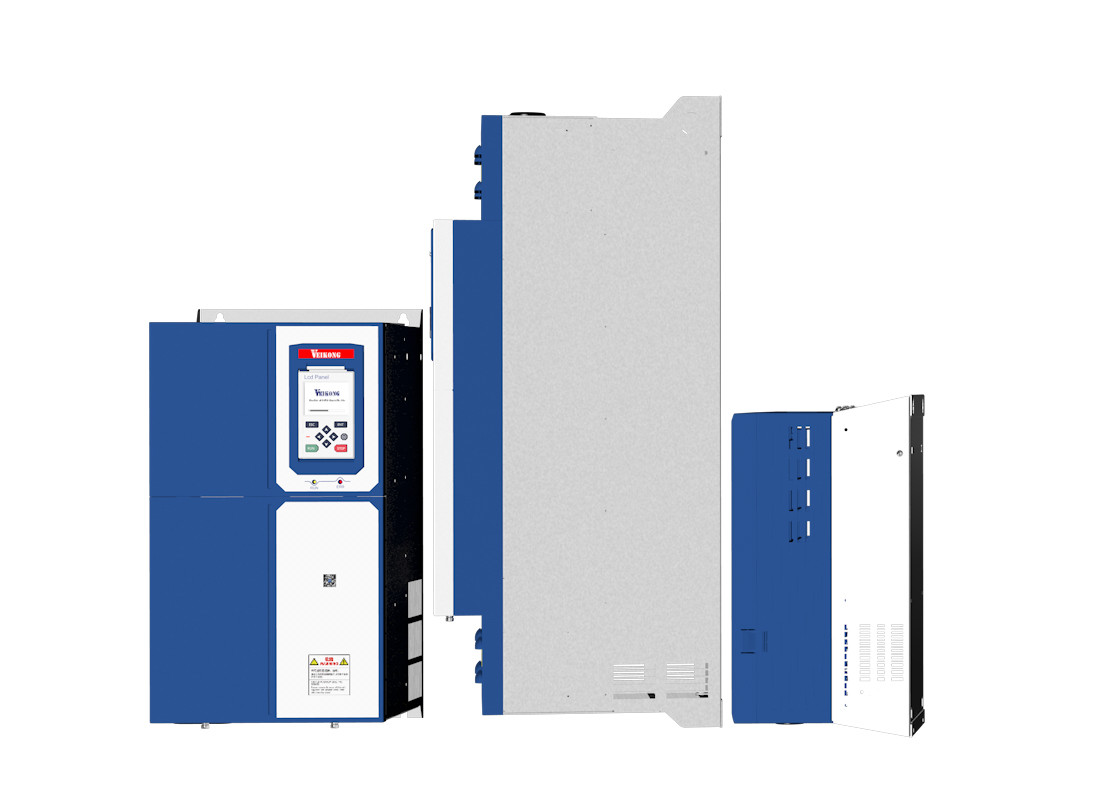

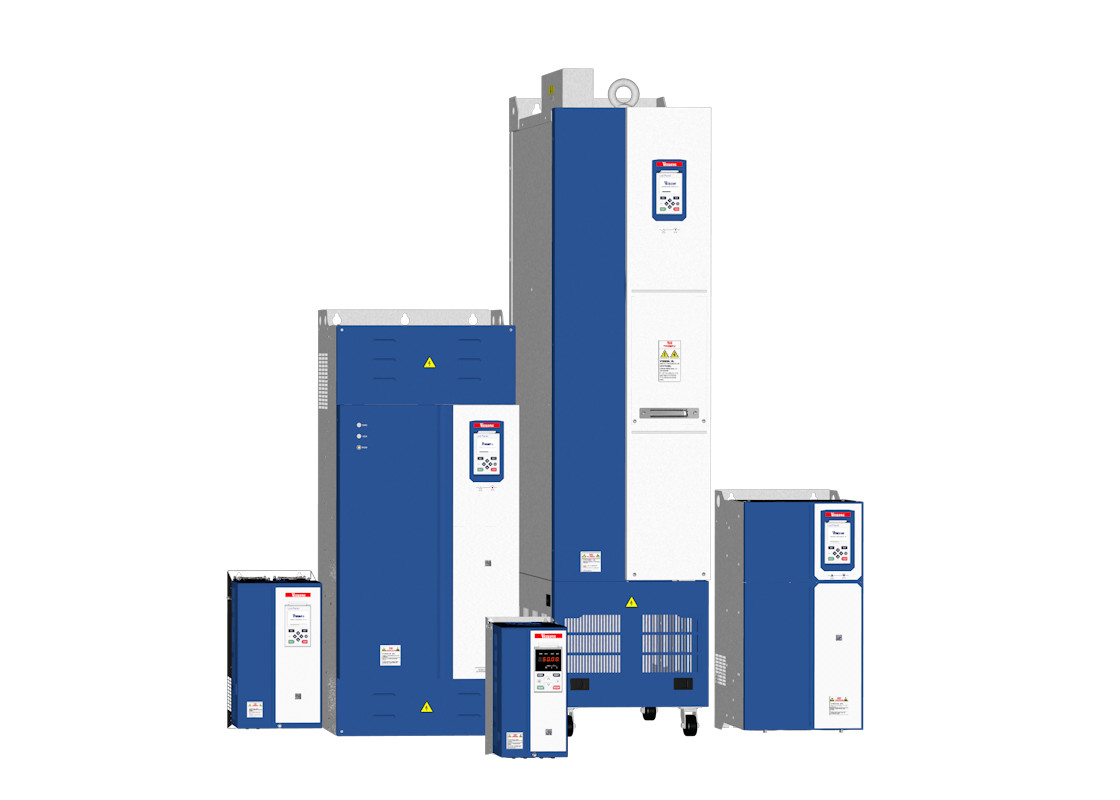

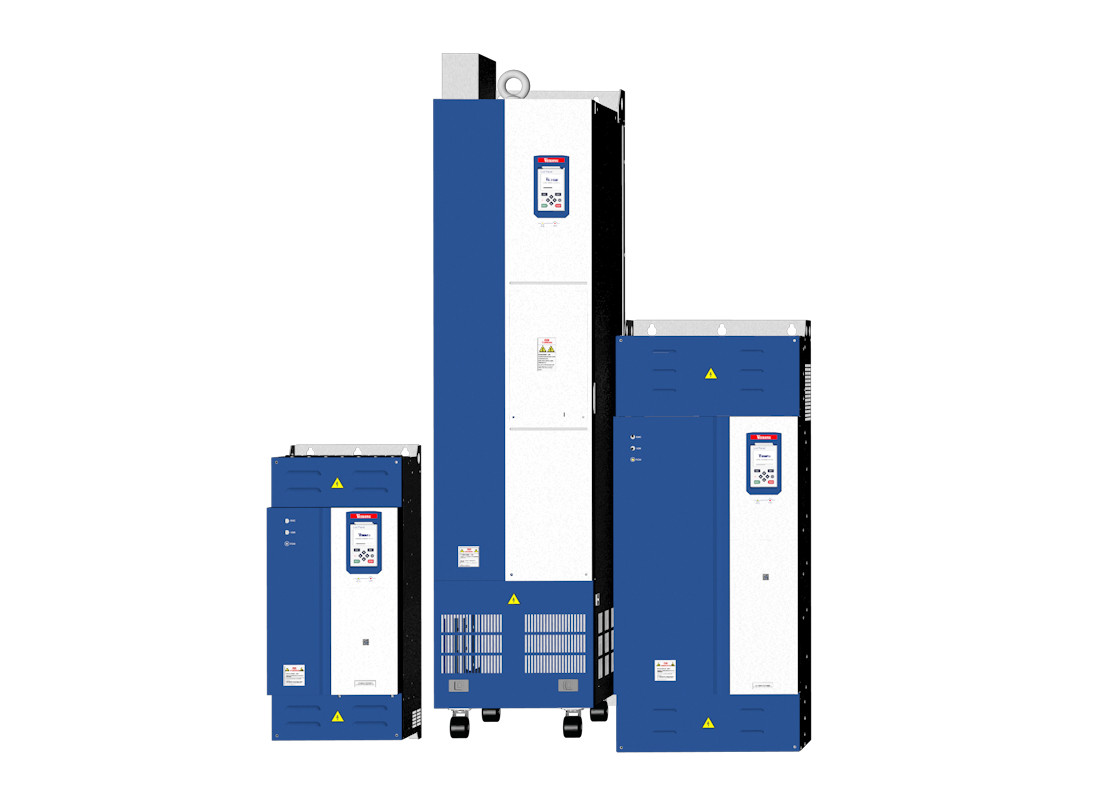

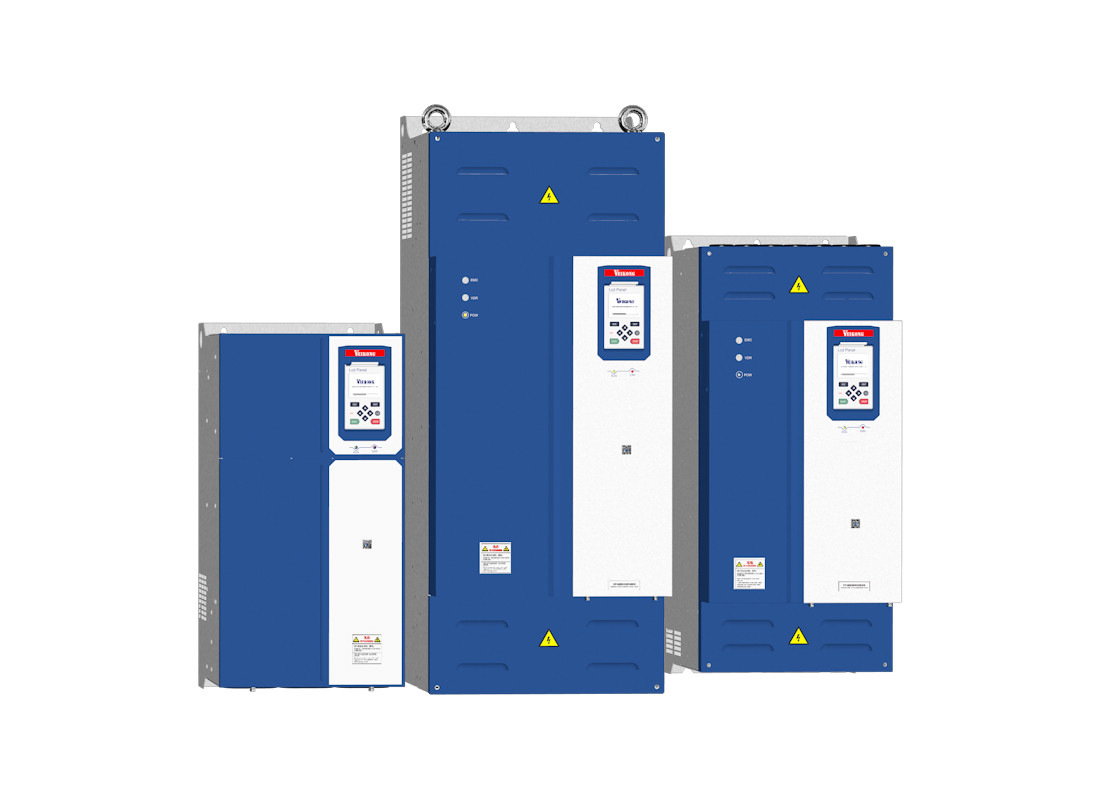

4. VFD580 product images

VFD580 15KW 380V Variable Speed Drive With Position Control For Spindle Machine 0VFD580 15KW 380V Variable Speed Drive With Position Control For Spindle Machine 1
