VEIKONG VFD580 VFD AC Drive Support Ethercat Communication Frequency Inverter
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD580 |
| Minimum Order Quantity | 5 |
| Price | Negotiable |
| Packaging Details | Carton and wooden box |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | VFD580 Ac Drive | Display | LCD And LED |
|---|---|---|---|
| Frequency | 0-3000hz | Voltage | 220v 380v |
| Motor | Servo Motor, Ac Motor, PMSM Motor | Warranty | 18 Months |
| High Light | VFD AC Drive Support Ethercat,3000hz VFD AC Drive |
||
Product Description
VEIKONG VFD580 VFD ac drive support Ethercat communication frequency inverter
Company introduction
Shenzhen Veikong Electric Co,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter as well as bypass contactor soft starter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management. Veikong is also one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support
Features
Product features:
01 Drive three-phase AC asynchronous motor and permanent magnet synchronous motor, and
supports three control modes of speed, torque and servo position.
02 Excellent asynchronous and synchronous motor SVC algorithm can control the speed and torque of the motor with high precision even without encoder feedback, and the low-frequency torque control accuracy is better than that of imported brands.
High preformation:
03 15KW and above models are equipped with built-in DC reactor as standard.
04 37KW and below are equipped with built-in braking unit as standard, and models below 90KW are equipped with brake circuit
short circuit protection function.
05 The whole series is equipped with buffer relay (contactor) abnormality protection circuit as standard. High reliability
06 All weak current circuit terminals adopt plug-in terminals with humanized identification, which is convenient for wiring and maintenance.
07 Standard one-line incremental encoder
interface (with Z input) No need to purchase PG card separately in common speed closed-loop occasions
08 Standard motor temperature sensor interface, support PT100PT1000, KTY84, without optional temperature detection card.
Product specification
| Item | Specification | |
|
Input |
Input voltage |
1phase/3phase 220V:200V-240V 3phase 400V:380V-480V |
| Allowed Voltage fluctuation range | -15%～10% | |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
| Input filter | SIZE C and above with built in DC reactor | |
|
Output |
Output voltage | 3phase:0～input voltage |
| Overload capacity | 150% rated output current for 60s；180% rated output current for 10s；200% rated output current for 2.0s | |
|
Control |
Control mode |
V/f control Sensorless vector control (SVC) Vector control with speed sensor (VC) |
| Operating mode | Speed control,torque control(SVC ;VC),position servo | |
|
Speed range |
1:100(V/f) 1:200(SVC) 1:1000(VC) |
|
|
Speed control accuracy |
±0.5%(V/f) ±0.2%(SVC) ±0.01%(VC) |
|
| Frequency range |
0.00～600.00Hz(standard) 0.0～2000.0Hz(higher standard) |
|
|
Input frequency resolution |
Digital input:0.01Hz or 0.01% Analog input:The maximum frequency is 0.025% |
|
|
Startup torque |
150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 180%/0Hz(VC) |
|
|
Torque control accuracy |
SVC:5Hz within 8%,5Hz above 5% VC:3.0% | |
| Frequency giving ramp |
Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s |
|
|
Position control |
The position command supports internal position, pulse position input, CAN open position command, Ether CAT position command (VFD586). Support position full closed loop mode | |
|
DC bus voltage control |
Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault; Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid skipping the voltage fault； |
|
|
Carrier frequency |
1kHz～16kHz(Varies depending on the type) | |
| Startup method | Direct start (can be superimposed DC brake); speed tracking start | |
| Stop method | Deceleration stop (can be superimposed DC braking); free to stop | |
| Special functions | Built-in delay unit, comparison unit and logic unit, etc., two groups of motor parameter switching, software switching output phase sequence, spindle orientation, online identification of motor parameters | |

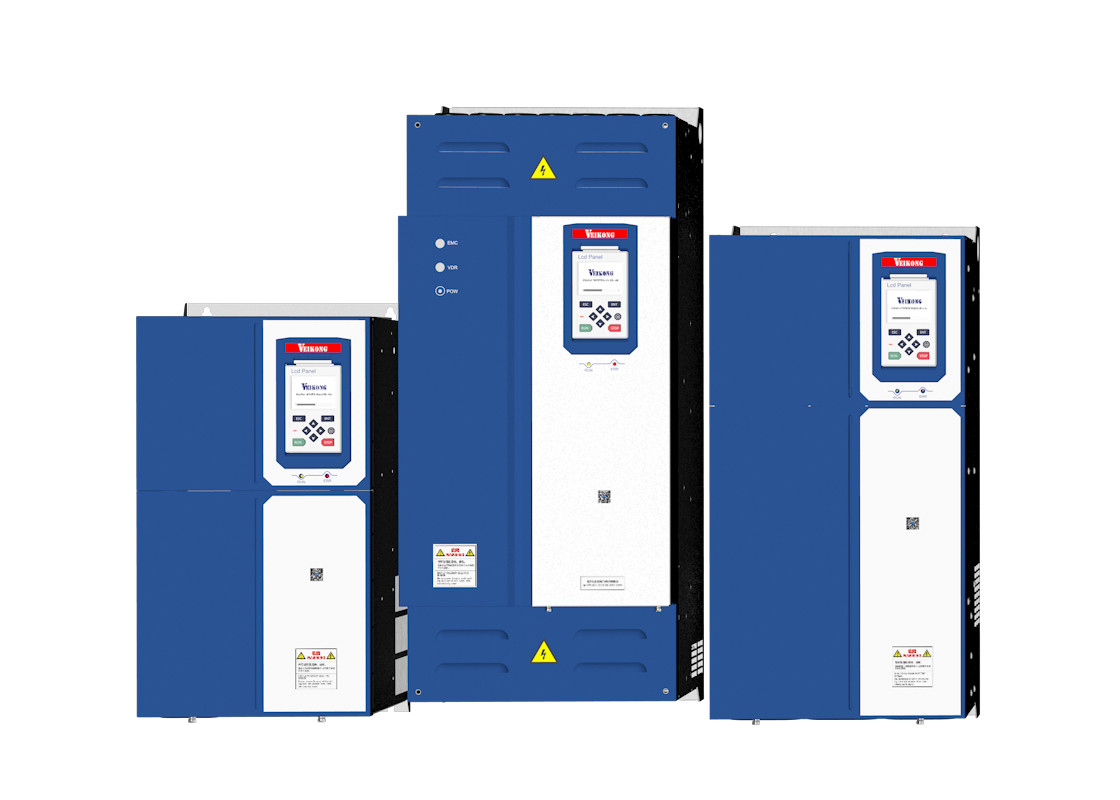

Product picture
FAQ:
- Q: What is the brand name of the Variable Frequency Inverters?
- A: The brand name is Veikong.
- Q: What is the model number of the Variable Frequency Inverters?
- A: The model number is VFD580.
- Q: Where is the Variable Frequency Inverters produced?
- A: It is produced in China.
- Q: What are the specifications of the Variable Frequency Inverters?
- A: Please refer to the product specifications on our website.
- Q: What are the advantages of using Variable Frequency Inverters?
- A: Variable Frequency Inverters have many advantages, such as energy saving, noise reduction, stable operation, flexible speed control and long service life.
