VFD580 11KW 380V High Level Variable Speed Drive For Spindle Industry
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD580
Minimum Order Quantity 2 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15490 per/ month
Product Details
Power 7.5KW Frequency 50/60hz
Warranty 18 Months Standard CE
Package Carton And Wooden Case Keypad Support LCD And LED Keypad Optional
STO Function Support Current 25A
High Light



Variable Speed Drive For Spindle Industry


11KW Variable Speed Drive

Product Description

VFD580 11KW 380V High Level Variable Speed Drive Can Be Used in Spindle Industry


1. Main features of VEIKONG VFD580

1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo    position control mode.

2. 15kw and above equipped with built-in DC reactor as standard.

3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.

4. 90kw and below equipped with brake circuit short-circuit protection function.

5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.

6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.

7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.

8. Support Spanish LCD keypad, it is easy to monitor and operator.

9. Support optional STO function.


2. VFD580 series control circuit terminals


Type Terminal symbol Terminal name Terminal function description
Analog input VREF

Analog input

reference voltage

VREF can choose 10V or 15V, switch between 10V and 15V of VREF throughthe "VREF" toggle switch, the factory default is 10V 10V3%,
The maximum output current is 30mA, that is, the recommended external
potentiometer resistance range: 1K~51K
GND Analog input ground Internally isolated from COM. 0V
AI 1 Analog input 1 Only input voltage:-10V~10V :Impedance 20K




3. The introduction of our company Veikong

      Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.


Veikong, your trusted supplier!

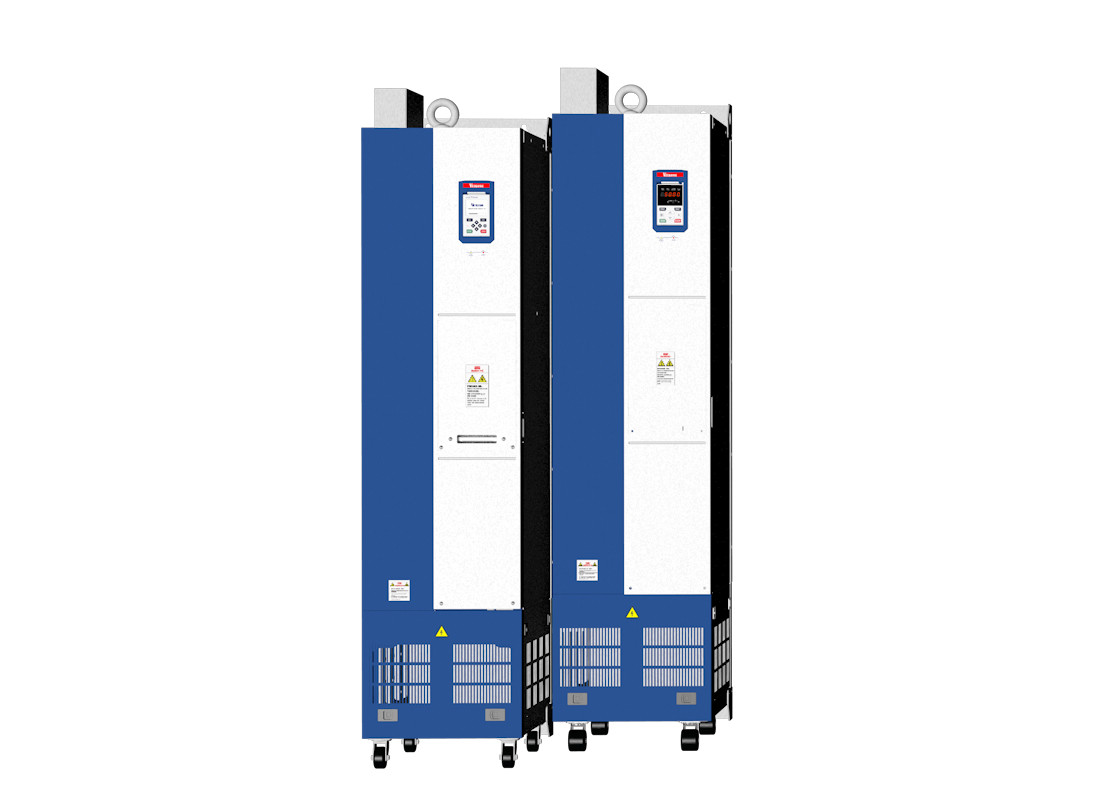

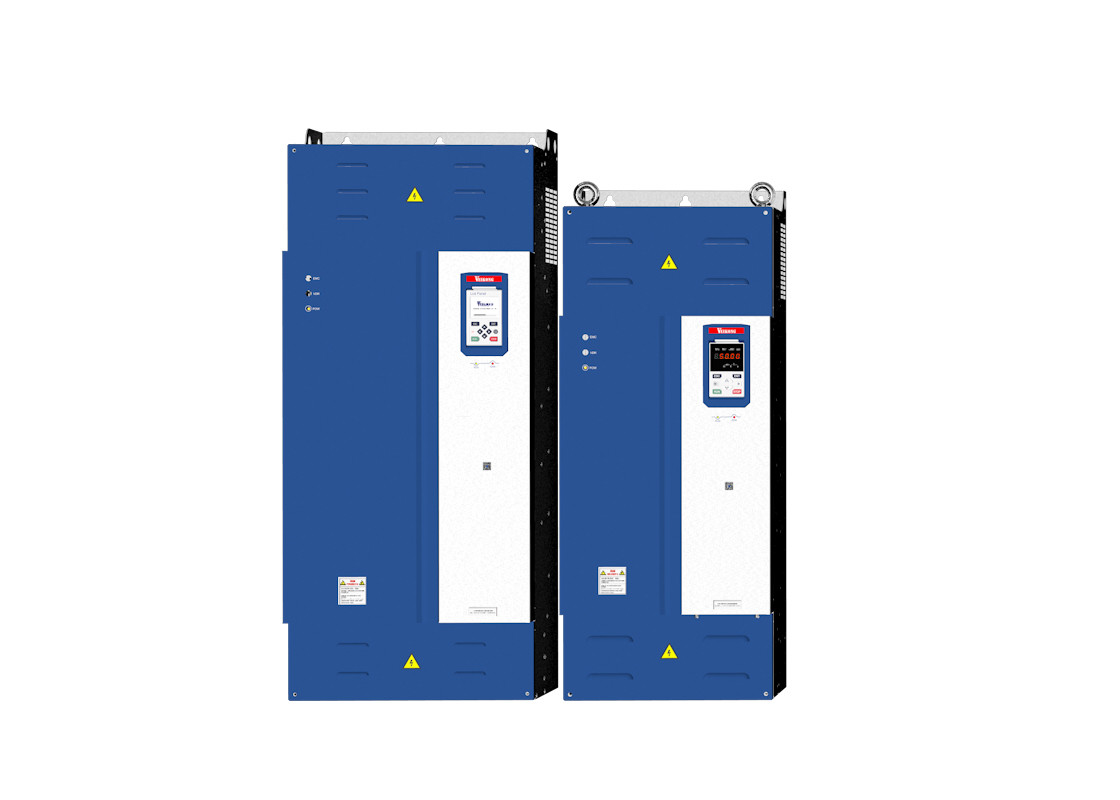

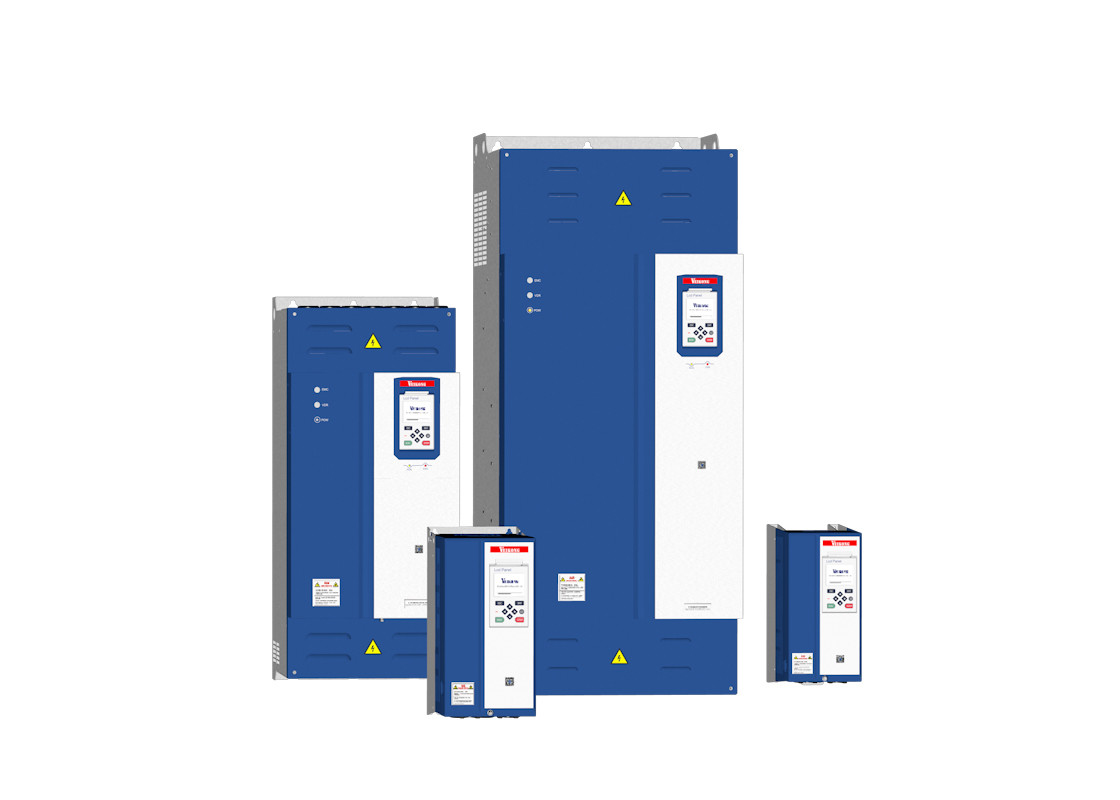

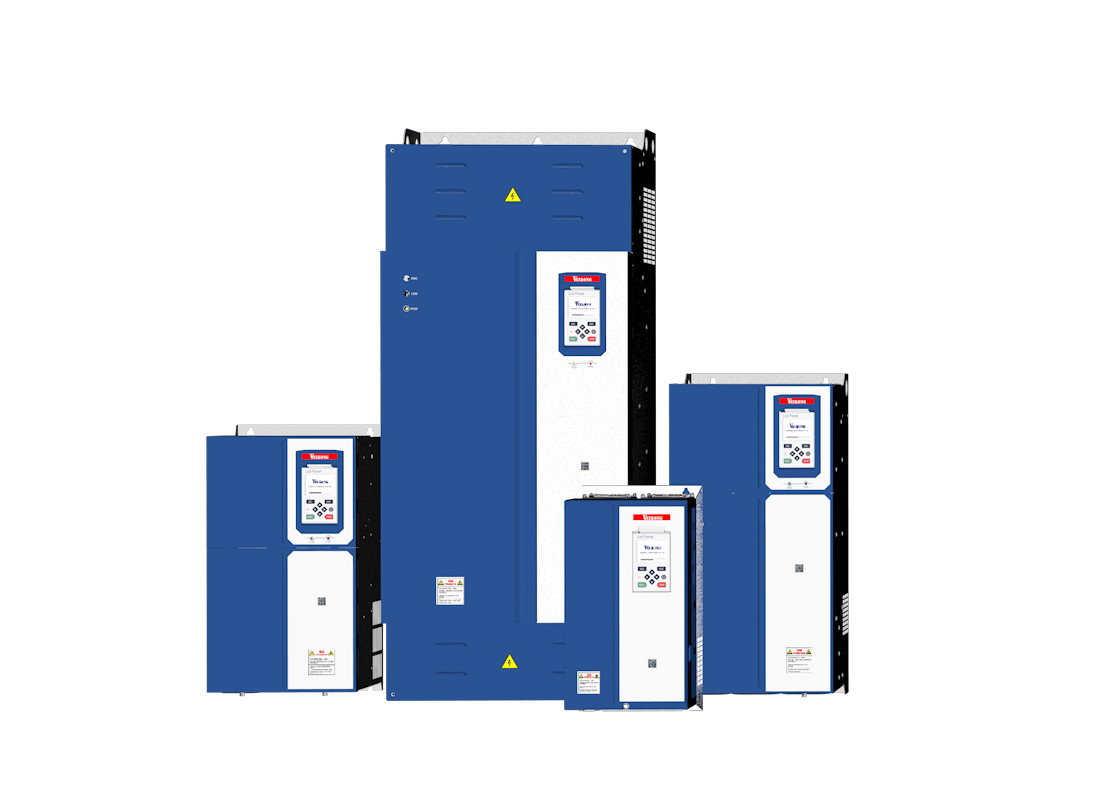

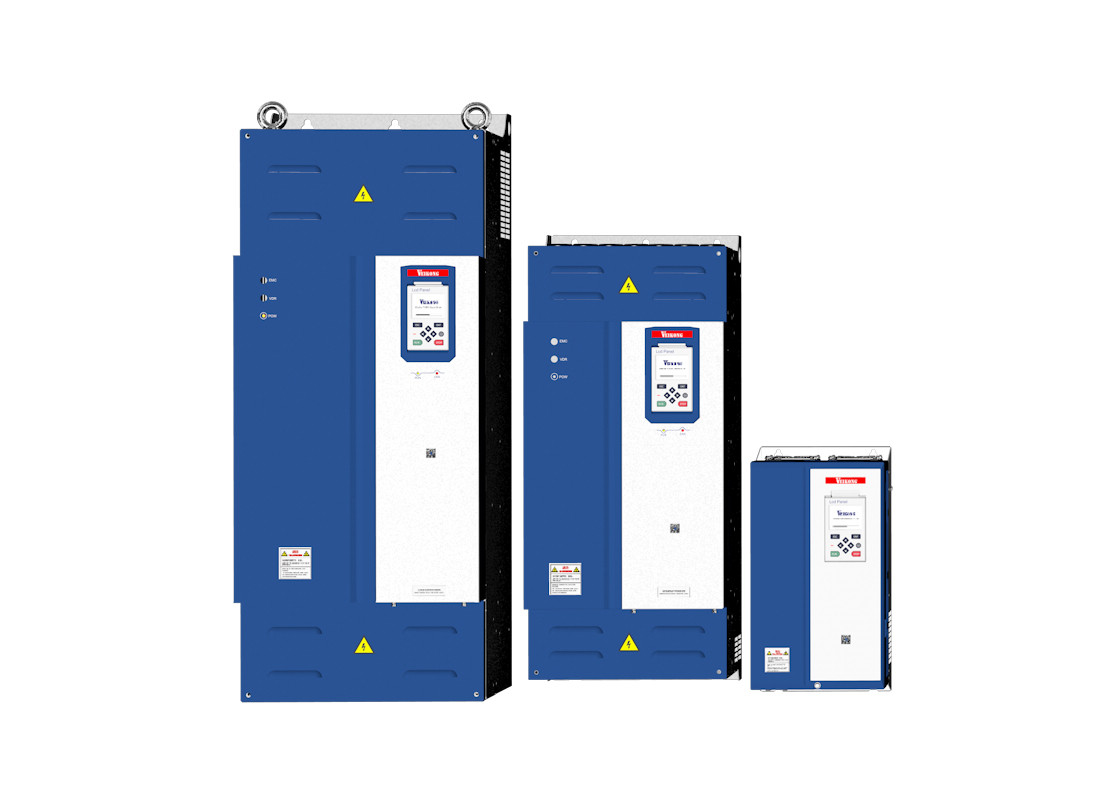

4. VFD580 product images

VFD580 11KW 380V High Level Variable Speed Drive For Spindle Industry 0VFD580 11KW 380V High Level Variable Speed Drive For Spindle Industry 1

5. FAQ

1. Can you accept to use our logo?

we accept OEM production.


2. How can i get the after-service?

Our R&D team with more than 20 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.


3. How about your products quality inspection?

We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.
