VFD580 High End VFD Frequency Inverter With DC Reactor For Injection Machine
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD580 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton and wooden box |
| Delivery Time | 3 days, depend on the order quantity |
| Payment Terms | Western Union, T/T, L/C, D/A, D/P, PayPal |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | VFD580 High End Frequency Inverter | Display | LCD And LED |
|---|---|---|---|
| Output Type | Three Phase | Voltage | 380V-480V |
| OEM | Acceptable | Warranty | 18 Months |
| High Light | High End VFD Frequency Inverter,VFD Frequency Inverter For Injection Machine |
||
Product Description
VFD580 High End Frequency Inverter With DC Reactor For Injection Machine
VFD580 is a high-standard vector inverter. The product adopts a leading design method, and has
excellent performance in terms of performance, scalability, reliability, electromagnetic compatibility,
etc. It's mainly oriented to occasions that have high requirements for the comprehensive performance
of the product.
High performance
- Drive three phase AC asynchronous motor and permanent synchronous motor, and supports three control modes of speed, torque and servo position.
- Excellent asynchronous and synchronous motor SVC algorithm can control the speed and torque of the motor with high precision even without encoder feedback, and the low-frequency torque control accuracy is better than that of imported brands.
Product specification
| Item | Specification | |
|
Input |
Input voltage |
1phase/3phase 220V:200V-240V 3phase 400V:380V-480V |
| Allowed Voltage fluctuation range | -15%～10% | |
| Input frequency | 50Hz / 60Hz,fluctuation less than 5% | |
| Input filter | SIZE C and above with built in DC reactor | |
|
Output |
Output voltage | 3phase:0～input voltage |
| Overload capacity | 150% rated output current for 60s；180% rated output current for 10s；200% rated output current for 2.0s | |
|
Control |
Control mode |
V/f control Sensorless vector control (SVC) Vector control with speed sensor (VC) |
| Operating mode | Speed control,torque control(SVC ;VC),position servo | |
|
Speed range |
1:100(V/f) 1:200(SVC) 1:1000(VC) |
|
|
Speed control accuracy |
±0.5%(V/f) ±0.2%(SVC) ±0.01%(VC) |
|
| Frequency range |
0.00～600.00Hz(standard) 0.0～2000.0Hz(higher standard) |
|
|
Input frequency resolution |
Digital input:0.01Hz or 0.01% Analog input:The maximum frequency is 0.025% |
|
|
Startup torque |
150%/0.5Hz(V/f) 180%/0.25Hz(SVC) 180%/0Hz(VC) |
|
|
Torque control accuracy |
SVC:5Hz within 8%,5Hz above 5% VC:3.0% | |
| Frequency giving ramp |
Support linear and S curve acceleration and deceleration; 4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s |
|
|
Position control |
The position command supports internal position, pulse position input, CAN open position command, Ether CAT position command (VFD586). Support position full closed loop mode | |
|
DC bus voltage control |
Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault; Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid skipping the voltage fault； |
|
|
Carrier frequency |
1kHz～16kHz(Varies depending on the type) | |
| Startup method | Direct start (can be superimposed DC brake); speed tracking start | |
| Stop method | Deceleration stop (can be superimposed DC braking); free to stop | |
| Special functions | Built-in delay unit, comparison unit and logic unit, etc., two groups of motor parameter switching, software switching output phase sequence, spindle orientation, online identification of motor parameters | |
| Item | Specification | |
|
Function |
Keypad |
The following three control panels can be configured: LED display(MTBOP1)； Shuttle display(MTBOP2)； LCD display(MTSOP1) |
|
Communication |
SLOT2 expansion: MODBUS-RTU Communication； CAN open Communication； ProfiNet Communication； EtherCAT Communication(VFD586) |
|
|
Encoder interface |
Standard: Incremental encoder interface, differential or open collector signal input; differential maximum input 500KHz, open collector maximum input 100KHz; SLOT1 extension: Incremental encoder; Resolver; Sine-cosine encoder; Tamagawa Protocol Absolute Encoder |
|
|
Input terminal |
Standard: 7 digital input terminals and one of which supports high-speed pulse input up to 50kHz; 3 analog input terminals,1 support 0 ~ 10V voltage input and 2 support 0 ~ 10V voltage input or 0 ~ 20mA current input 1 motor temperature detection, support PT100, PT1000, KTY84-130 three kinds of thermistor input; SLOT2 extension: 1DI digital terminal input(VFD580-IOEX1) |
|
|
Output terminal |
Standard: 2 digital output terminals；1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output； 2 relay output terminals； 2 analog output terminals,1 support 0～10V voltage output,1 support 0～20mA current output or 0～10V voltage output； SLOT2 extension: 2 digital output terminals(VFD580-IOEX1) |
|
| Protection | Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function | |
|
Environment |
Installation location | Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
| Altitude | 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m | |
| Ambient temperature | -10°C~ +40°C, maximum 50°C (derated if the ambient temperature is between 40°C and 50°C) Rated output current decrease by 1.5% if temperature increase by 1°C | |
| Humidity | Less than 95%RH, without condensing | |
| Vibration | Less than 5.9 m/s2 (0.5 g) | |
| Storage temperature | -20°C ~ +60°C | |
|
Other |
Installation |
Wall-mounted, floor-controlled cabinet, transmural |
| Through-the-wall (requires optional accessories, see "7.2 Optional accessories for through-wall installation") | ||
| Protection level | IP21 | |
| Cooling method | Forced air cooling | |
| Grid system | TT/TN/IT (VDR and EMC screws must be removed for disconnection to earth for IT grid systems) | |

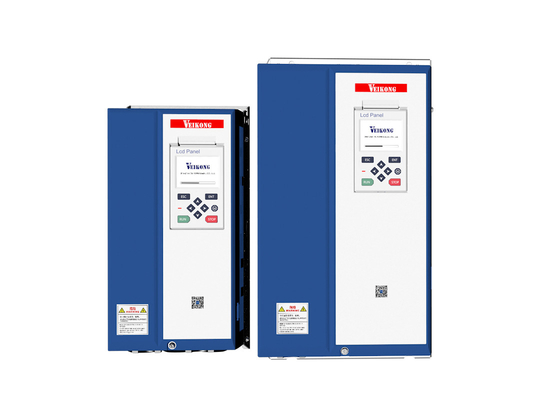

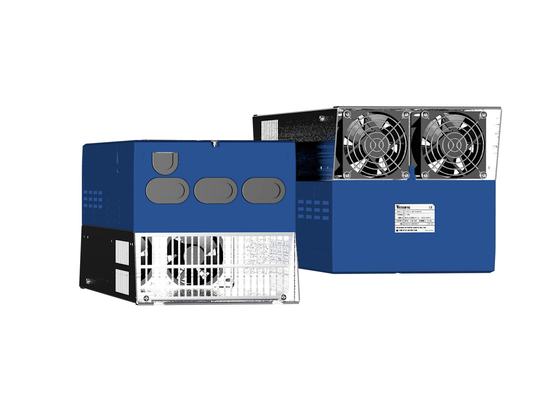

Product picture
FAQ
1. What voltage range can you support?
Single-phase 220v input, single-phase 220v output;
Single-phase 220v input, three-phase 220v output;
Three-phase 220v input, three-phase 220v output;
Single-phase 220v input, three-phase 380v output;
2. What is the standard of package?
Below 37kw, it's carton package; 45kw and above, it's wooden package.
3. Do you accept OEM business?
We accept OEM and ODM with your autherization.
