VFD580 5.5KW 380V VEIKONG VFD High Level With Positional Control
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD580
Minimum Order Quantity 2 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15490 per/ month
Product Details
Power 5.5KW Frequency 50/60hz
Color Light Blue And White Material Palstic And Mental
Package Carton And Wooden Case Keypad LCD And LED Optional
Positional Control Support
Highlight

5.5KW VEIKONG VFD

,

VEIKONG VFD With Positional Control

Product Description

VFD580 5.5KW 380V VFD used in high level applications which need Positional control



1. Main features of VEIKONG VFD580

1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo    position control mode.

2. 15kw and above equipped with built-in DC reactor as standard.

3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.

4. 90kw and below equipped with brake circuit short-circuit protection function.

5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.

6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.

7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.

8. Support Spanish LCD keypad, it is easy to monitor and operator.

9. Support optional STO function.



2. VFD580 Technical Speficiation:

Item Specification
Input terminals Standard:
7 digital input terminals, one of which supports high-speed pulse input up to 50kHz;3 analog input terminals, one supports -10V - 10V input, two supports 0 - 10V voltage input or 0 - 20mACurent input; (VFD586 2 analog inputs, One channel supports -10-10V, and one channel supports 0-10or 0-20mA options)
. 1 motor temperature detection, support PT100, PT1000, KTY84-130 three kinds of thermistor input;SLOT2 expansion:
2 DI digital input terminals (MT580-IOEX1)
Output terminals Standard:
. 2 digital output terminals; 1 of which is a high-speed pulse output terminal (open collector type).supporting square wave signal output from 0 to 50kHz:
2 relay output terminals;2 analog output terminals, 1 0nly supports 0 - 10V voltage output, one supports 0 - 20mA current outputor 0~ 10V voltage output; (VFD586 1 analog output ,Supports 0-10V or 0-20mA options)SLOT2 expansion:
2 digital output terminals (MT580-IOEX1)
Installation location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude 0 to 3000 meters. Above 1000 meters, reduction in use is required, with a decrease in rated outputcurrent of 1% for every 100 meters increase in altitude.
Humidity Less than 95%RH, without condensing





3. The introduction of our company Veikong

      Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.



Veikong, your trusted supplier!

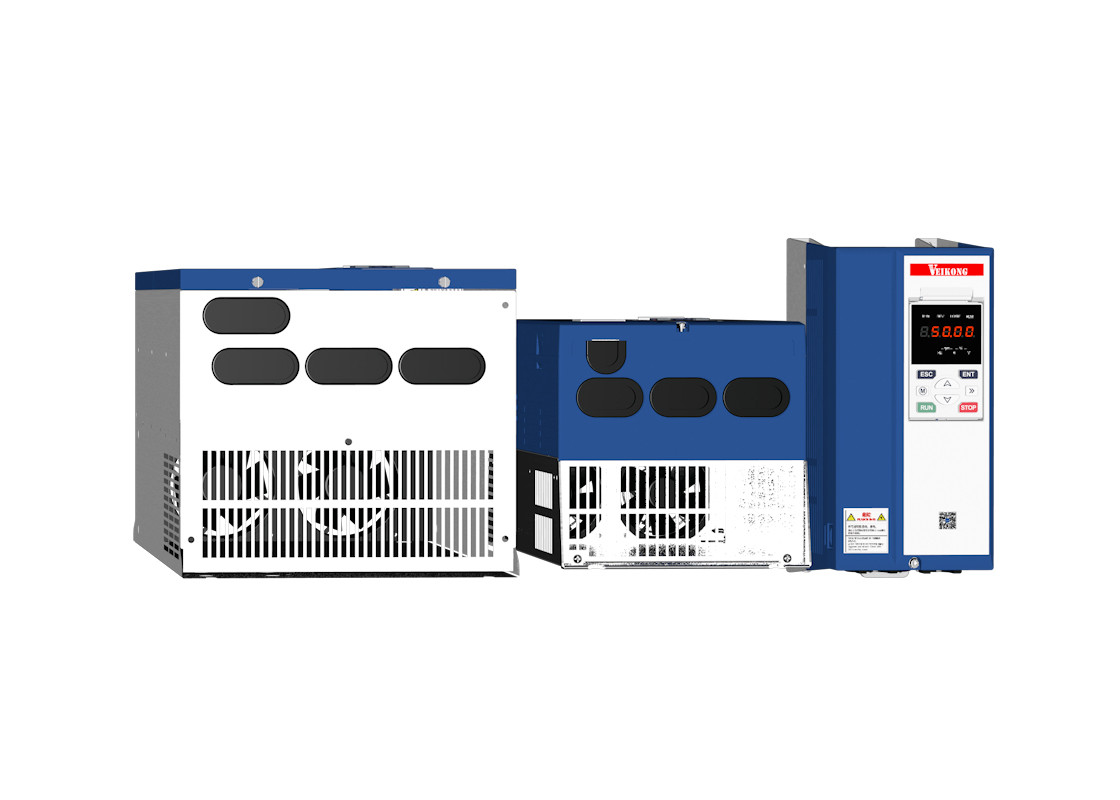

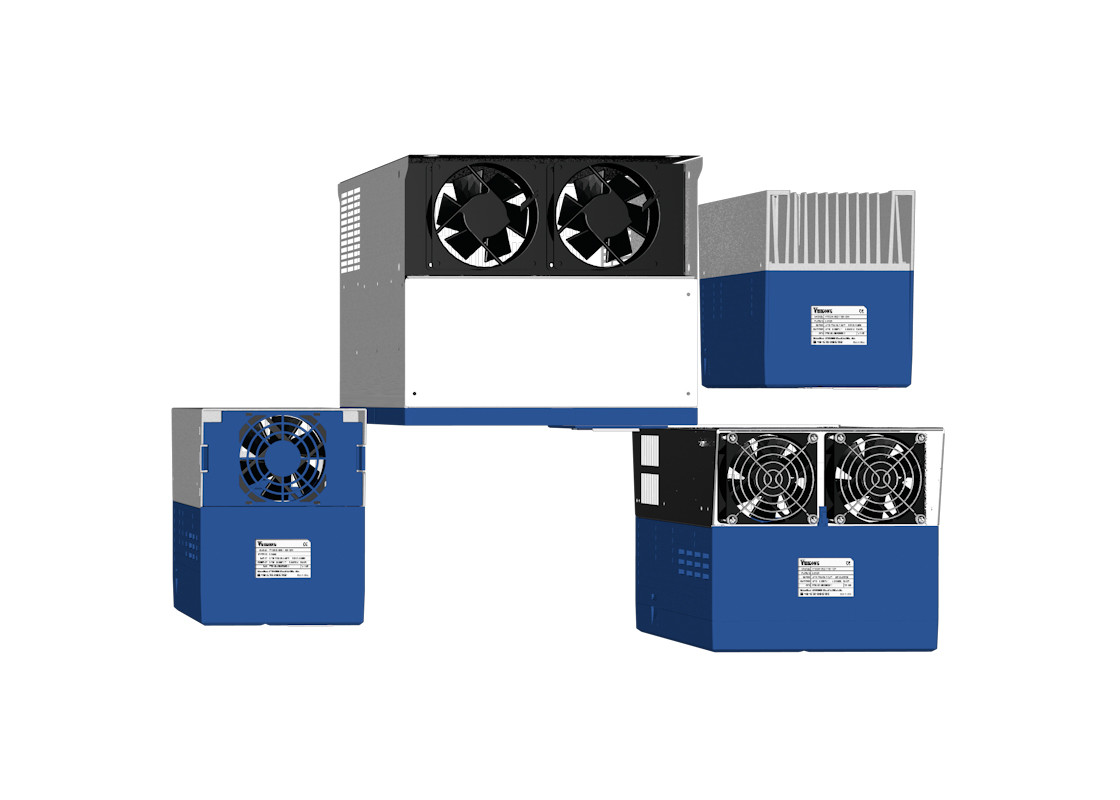

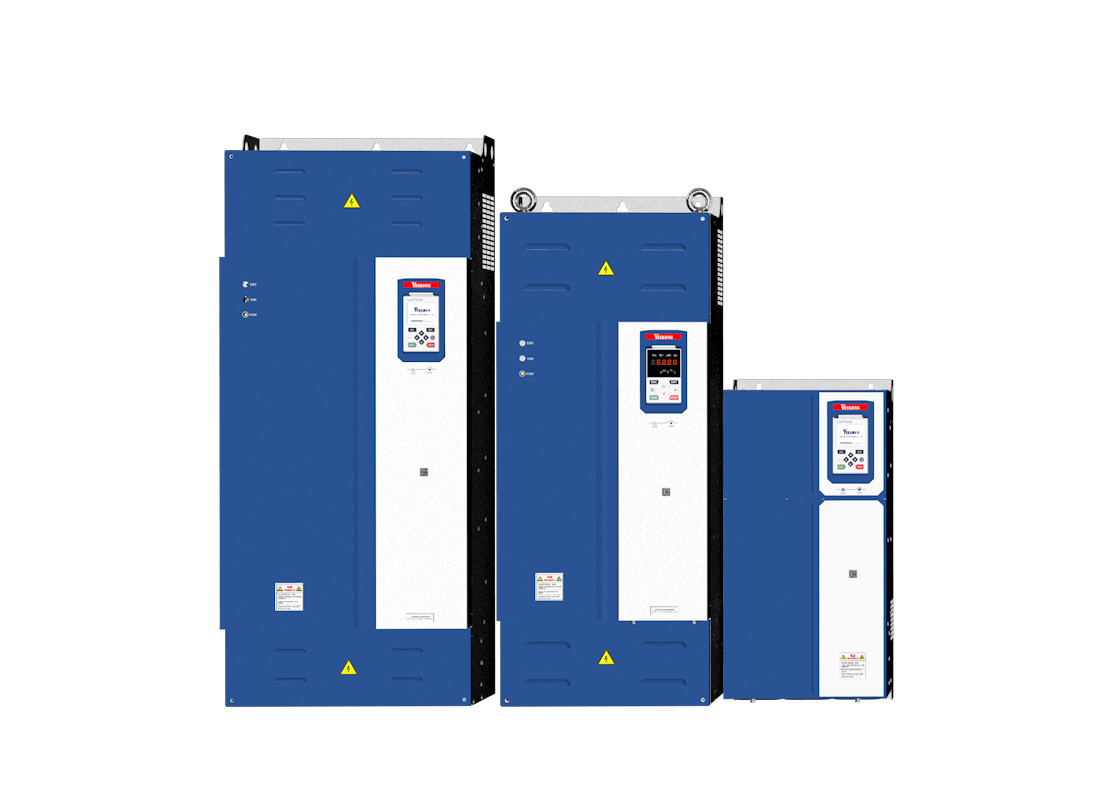

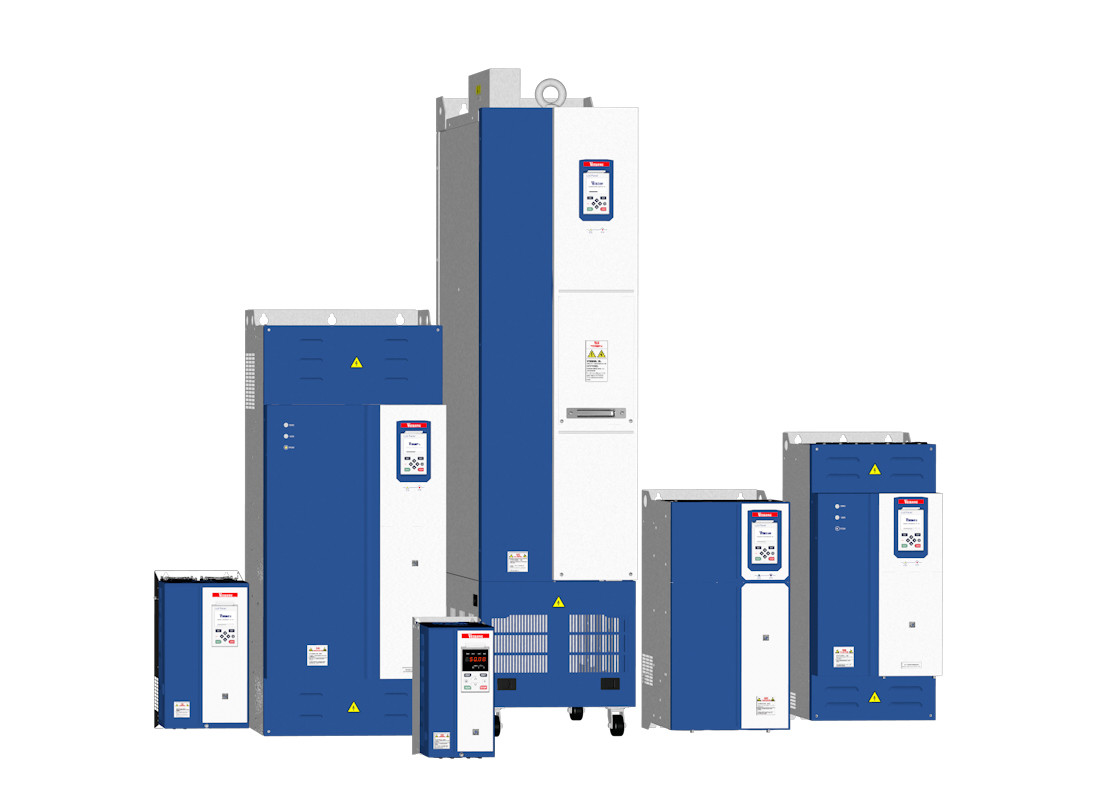

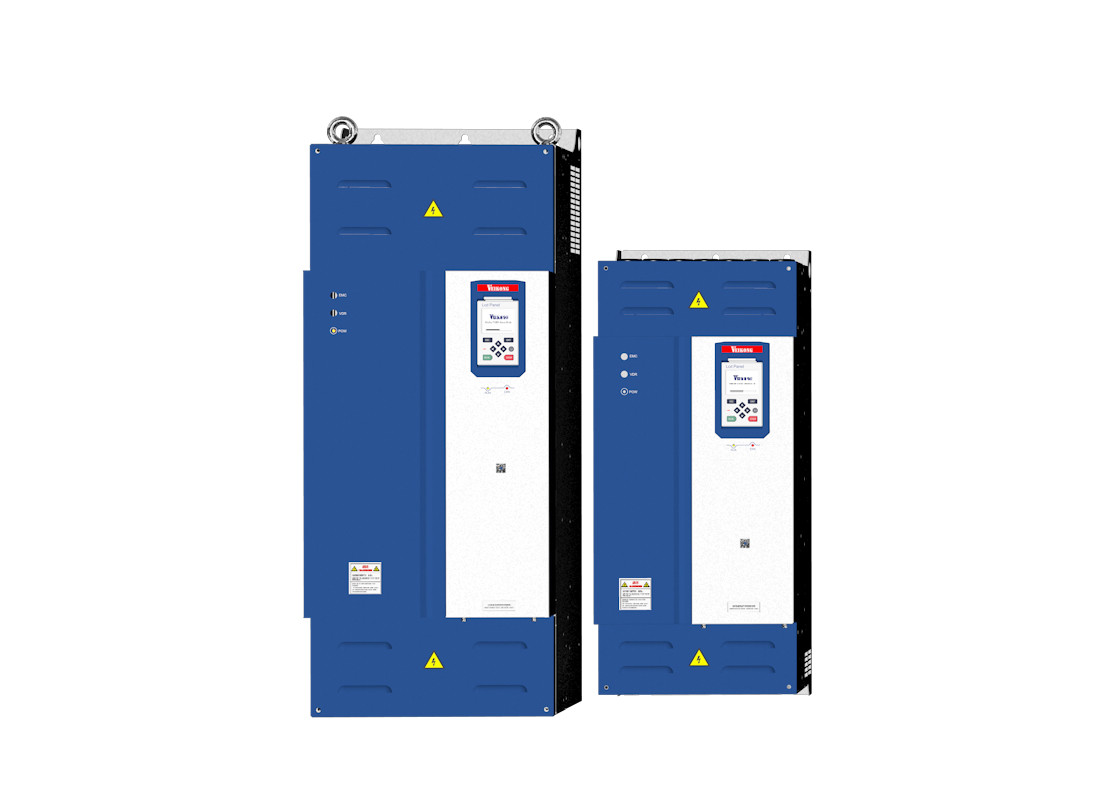

4. VFD580 product images

VFD580 5.5KW 380V VEIKONG VFD High Level With Positional Control 0VFD580 5.5KW 380V VEIKONG VFD High Level With Positional Control 1
