VFD580 22KW 380V High Reliablility VFD AC Drive Support Spanish / Arabic LCD Keypad
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD580 |
| Minimum Order Quantity | 2 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 7-8 working days based on quantity |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15490 per/ month |
Product Details
| Power | 22KW | Color | Light Blue And White |
|---|---|---|---|
| Warranty | 18months | GPRS | Optional |
| Positional Control | Support | Keypad Language | Russian/Turkish/Spanish/Arabic |
| High Light | 22KW VFD AC Drive,VFD AC Drive with LCD Keypad,LCD Keypad VFD Drive |
||
Product Description
VFD580 22KW 380V high reliablility AC Drive support Spanish or Arabic LCD keypad
1. Main features of VEIKONG VFD580
1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo position control mode.
2. 15kw and above equipped with built-in DC reactor as standard.
3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.
4. 90kw and below equipped with brake circuit short-circuit protection function.
5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.
6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.
7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.
8. Support Spanish LCD keypad, it is easy to monitor and operator.
9. Support optional STO function.
2. Definition of VFD580 control circuit terminals:
| Type | Terminal symbol | Terminal Name | Terminal function description |
|
Analog input |
VREF |
Analog input reference voltage |
VREF can choose 10V or 15V, switch between 10V and 15V of VREF through the "VREF" toggle switch, the factory default is 10V 10V±3%, |
| 10V±3% , 15V±3% | |||
| The maximum output current is 30mA, that is, the recommended external potentiometer resistance range: 1kΩ ~51kΩ | |||
| GND | Analog input ground | Internally isolated from COM, 0V | |
| AI1 | Analog input 1 | Only input voltage:-10V~10V:lmpedance 20kΩ | |
|
AI2 |
Analog input 2 |
Input voltage:0~10V :lmpedance 20kΩ , Maximum input voltage | |
| I Input current:0~20mA:lmpedance 500Ω , Maximum input current | |||
| Through the jumper switch AI2 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input. | |||
|
AI3 |
Analog input 3 |
Input voltage:0~10V :lmpedance 20kΩ , Maximum input voltage | |
| Input current:0~20mA:lmpedance 500Ω , Maximum input current | |||
| Through the jumper switch AI3 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input. | |||
|
Analog output |
AO1 | Analog output 1 | Output 0 ~10v: lmpedance >10kΩ |
|
AO2 |
Analog output 2 |
Output voltage:0~10V :lmpedance >10kΩ | |
| Output current:0~20mA:lmpedance 200Ω~500Ω | |||
| Through the jumper switch AO2 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output. | |||
| GND | Analog ground | Internal isolation from COM and 0V | |
|
Switch input |
+24V |
+24V current |
24V ± 10%, internally isolated from GND and 0V |
| Maximum output current :200mA | |||
| To provide 24V power supply, generally used as a digital input and output terminal power supply and external sensor power. | |||
| When the "24V/PLC" toggle switch is ON, +24V and PLC are connected | |||
|
PLC |
Digital input terminal common |
The factory default setting is connected PLC with +24V terminal for on-off input high and low level switch | |
| When using the external power input, it will disconnect the connector slip of PLC with the +24V | |||
| COM | +24V ground | Internal isolation from GND and 0V | |
|
DI1 ~DI4 /DI6 ~DI7 |
Digital input terminal 1-4 or 6-7 |
Optocoupler isolation, compatible with bipolar input | |
| Frequency range:0~200Hz | |||
| Voltage range:10V~30V | |||
|
HDI |
Digital input terminal /High-speed pulse input |
igital input terminal :same as DI1~DI4 and DI6-DI7 | |
| Pulse input frequency input :0~50KHz | |||
| Voltage range:15V~30V | |||
|
Switch output |
DO1 |
Open collector output |
Optocoupler isolation |
| Voltage range:0V~28V | |||
| Current range:0mA ~50mA | |||
| YCOM | DO1 Ground | Internally isolated from GND, 0V, COM | |
|
HDO |
Open collector output /High-speed pulse output |
Open collector output :same as DO1 | |
| High-speed pulse output :0~50KHz | |||
| COM Reference ground is COM | |||
| Relay 1 | T1A/T1B/T1C | Relay 1 output | T1A-T1B :normal close |
| T1A-T1C:normal open | |||
| Relay 2 | T2A/T2B/T2C | Relay 2 output | T2A-T2B :normal close |
| T2A-T2C:normal open |
3. The factory environment and manufacturing and testing process here
Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!

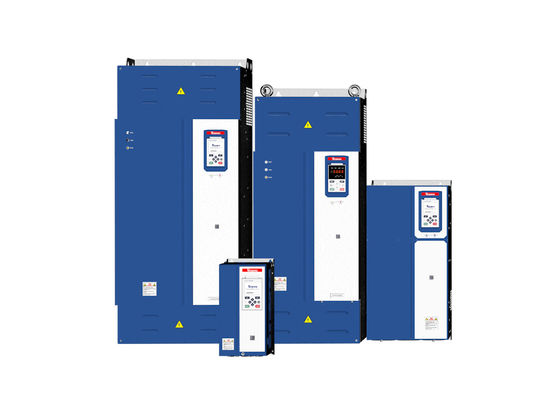

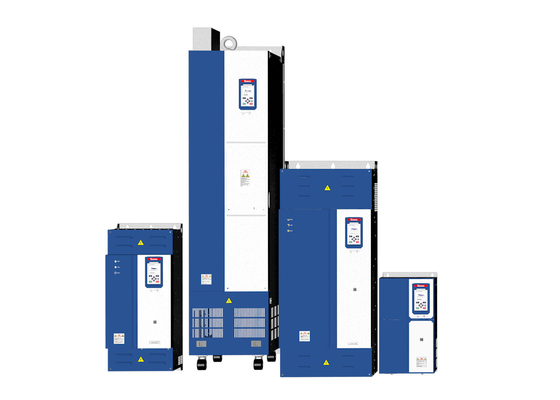

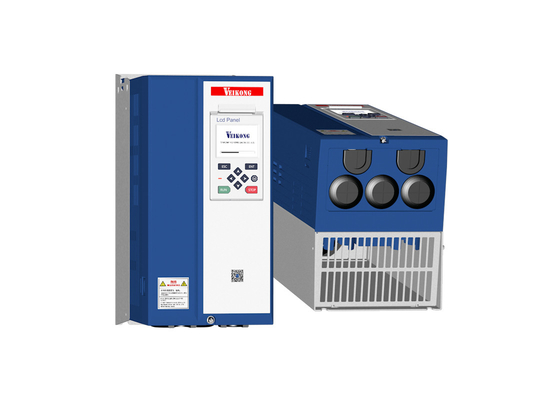

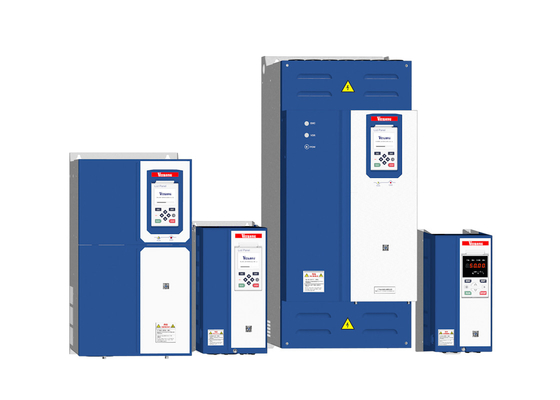

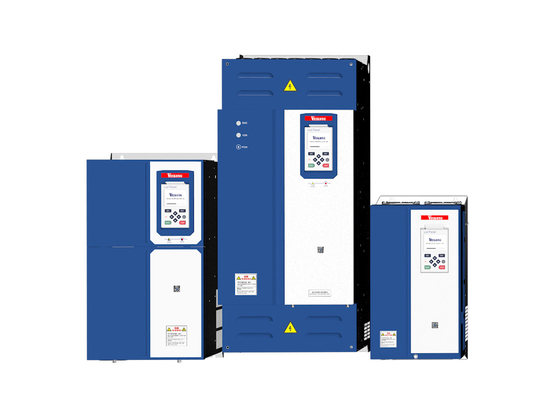

4. VFD580 product images
