VFD580 High End VEIKONG VFD 2.2KW 380V With Position Control And Support IM / PMSM Motor
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD580 |
| Minimum Order Quantity | 2 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 7-8 working days based on quantity |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15490 per/ month |
Product Details
| Power | 2.2KW | Frequency | 50/60hz |
|---|---|---|---|
| Color | Light Blue And White | Voltage | 380V |
| Warranty | 18months | OEM | Yes |
| Material | Plastic And Mental | ||
| High Light | IM Motor VEIKONG VFD,VEIKONG VFD Drive,PMSM Motor VEIKONG VFD |
||
Product Description
VFD580 2.2KW 380V High end VFD with Position Control and support both IM and PMSM motor
1. Main features of VEIKONG VFD580
1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo position control mode.
2. 15kw and above equipped with built-in DC reactor as standard.
3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.
4. 90kw and below equipped with brake circuit short-circuit protection function.
5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.
6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.
7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.
8. Support Spanish LCD keypad, it is easy to monitor and operator.
9. Support optional STO function.
2. VFD580 series control circuit terminals
| Type | Terminal symbol | Terminal name | Terminal function description |
| Analog input | VREF |
Analog input reference voltage |
VREF can choose 10V or 15V, switch between 10V and 15V of VREF throughthe "VREF" toggle switch, the factory default is 10V 10V3%, |
| 10V+3%,15V+3% | |||
| The maximum output current is 30mA, that is, the recommended external potentiometer resistance range: 1K~51K |
|||
| GND | Analog input ground | Internally isolated from COM. 0V | |
| AI 1 | Analog input 1 | Only input voltage:-10V~10V :Impedance 20K |
3. The factory environment and manufacturing and testing process here
Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!

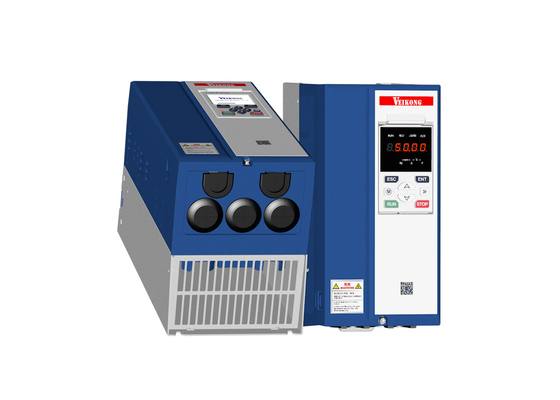

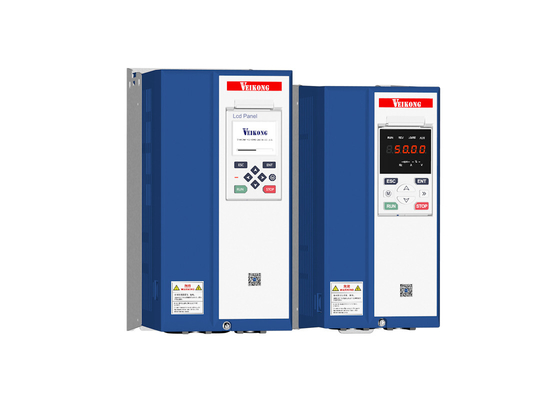

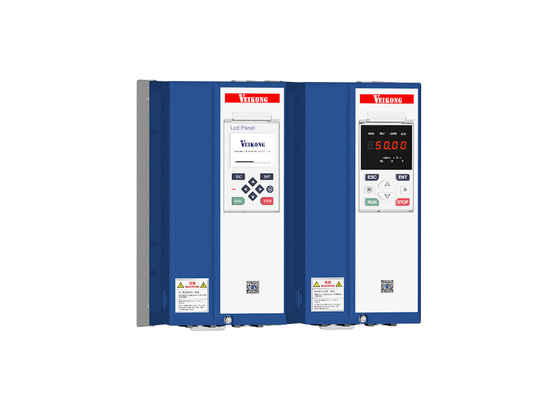

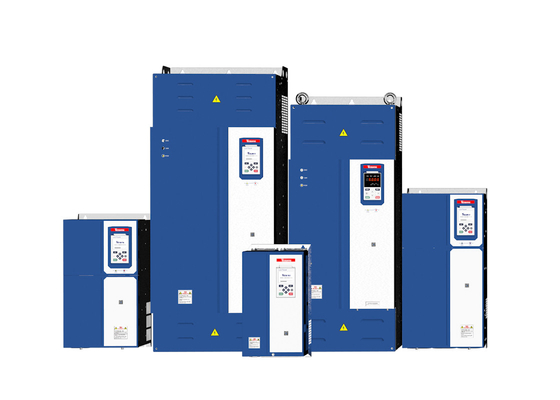

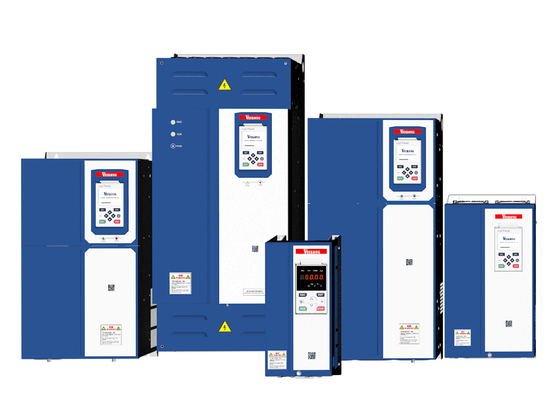

4. VFD580 product images
