Lcd Single Phase Solar Pump Inverter 220vac/380v Input Voltage
| Place of Origin | China |
|---|---|
| Brand Name | Veikong |
| Certification | CE IEC |
| Model Number | VFD500-20T00400-PV |
| Minimum Order Quantity | 25 |
| Price | Negotiable |
| Packaging Details | Paper carton or wooden case based on different power range |
| Delivery Time | 7 working days in general, depend on quantity |
| Payment Terms | T/T or other payment term based on different request and siutation |
Product Details
| Power Range | 4KW | Display | LCD, LED, Shuttle Display With Potentiometer |
|---|---|---|---|
| MPPT | 99% | Max Output Current | Depend On Different Power Range |
| Weight | Depend On Power Range | Working Temperature | -20~+60℃ |
| Input Voltage | Single Phase/ Three Phase | Input Frequency | 50/60Hz |
| High Light | lcd single phase solar pump inverter,220vac single phase solar pump inverter,380vac single phase solar vfd |
||
Product Description
Product Description:
What is solar pump inverter?
Solar pump inverter, also known as PV inverter, Solar water pump inverter, Solar pump controller, Solar water pump controller, Solar mppt vfd, Solar mppt frequency inverter, Solar frequency inverter, Solar pump vsd, and Solar frequency inverter, Solar vfd, is a type of electrical converter. It serves to convert the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by an off-grid electrical network.
It is an important component of a photovoltaic system and enables the use of regular commercial electrical appliances.
Technical Specification:
| Product series | VFD500-20T00400-PV | |
| Product rated current | 17A | |
| Product rated power range | 4kw | |
| Recommended input voltage | 305V | |
| MPPT efficiency | 99% | |
| Input channel | 2 | |
| Rated output voltage | 3-phase 220VAC | |
| Output frequency range | 0~60Hz | |
| Max efficiency of the machine | 97% | |
| Ambient temperature range | -10°C~50°C,deratingif thetemperatureis above 40 °C | |
| Cooling method | Air cooling | |
| Protection degree | IP20 | |
| Altitude | Below 1000m;above1%for everyadditional100m |
|
Applications:
Water pumping inverter can be used for many purposes. They are essential for providing water in some areas lack of electricity need a lot of water for irrigation, swimming pool or other water system.
Customization:
Single-Phase Solar Pump Inverter
Brand Name: Veikong
Model Number: VFD500-PV
Place of Origin: China
Certification: CE IEC
Minimum Order Quantity: 25
Price: Negotiable
Packaging Details: Paper carton or wooden case based on different power range
Delivery Time: 7 working days in general, depend on quantity
Payment Terms: T/T or other payment term based on different request and siutation
Output Frequency: 50/60Hz
Display: LCD, LED, Shuttle Display With Potentiometer
Cooling Method: Air Cooling
Input Voltage: Single Phase/ Three Phase
Input Frequency: 50/60Hz
Veikong Solar Pump Drive is a single-phase solar pump inverter for all kinds of solar pumps. It is with high reliability, high efficiency, low energy consumption, and etc. It is easy to install, operate, and maintain.
Support and Services:
We provide a variety of technical services and support for our Single Phase Solar Pump Inverter product.
Our technical support services include:
- Pre-sales technical consultation and product selection advice
- Installation guidance and troubleshooting
- Software/firmware update support
- Product maintenance and repair
- Hardware replacement and upgrade
We also offer product training, customer service, and technical support through our website, telephone helplines, and email.
FAQ:
Q1: What is the product name?
A1: The product name is Veikong Single Phase Solar Pump Inverter (Model Number: VFD500-PV).
Q2: Where is the product made?
A2: The product is made in China.
Q3: What certifications does the product have?
A3: The product has CE and IEC certifications.
Q4: What is the minimum order quantity for OEM service?
A4: This is decided by which model OEM our client needs, for example, someone needs the logo OEM, and others the software OEM.
Q5: What is the price and payment terms?
A5: The price is negotiable and the payment terms are T/T or other payment term based on different request and siutation.

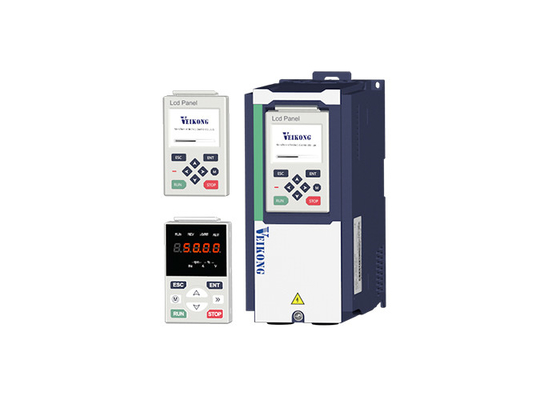

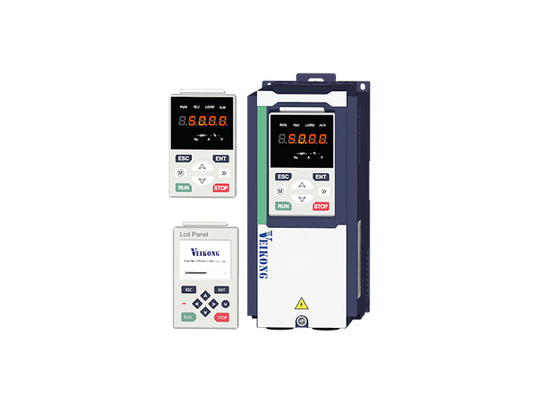

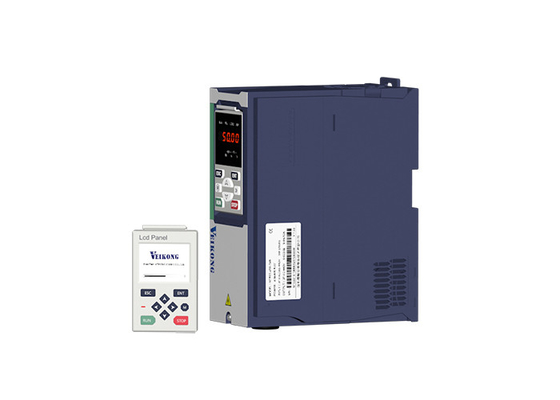

Product outside appearance for reference:
