|Place of Origin||China|
|Certification||CE IEC ISQ|
|Minimum Order Quantity||22 pcs|
|Packaging Details||paper carton under 45kw, starting from 45kw wooden case for packing|
|Delivery Time||3-8 working days|
|Payment Terms||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability||15000 per/ month|
|Running Method||Speed Control And Torque Control||Protection Level||IP20/IP21|
|Control Method||VF/ SVC/VC||Brand Name||Veikong|
|Warranty||18 Months||Product Name||Variable Frequency Drive VFD|
VFD500 Vector Drive VFD,
Torque Control Vector Drive VFD,
SVC Control Variable Speed Inverter

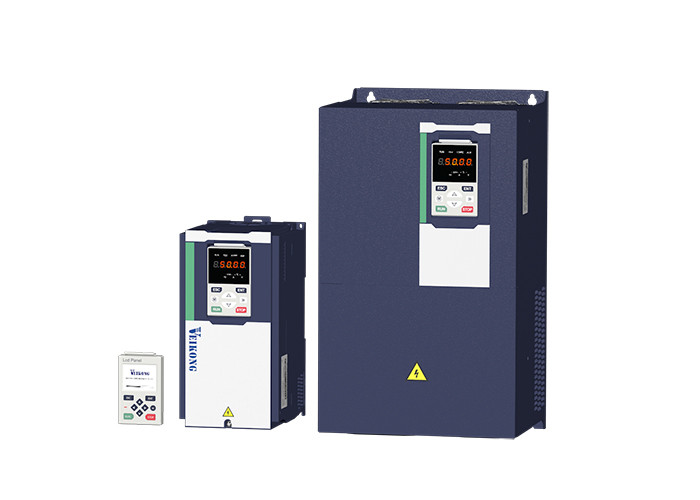

VFD500 Vector Drive VFD Variable Frequency VF SVC And VC Control Mode
VFD500 Vector Drive Variable Frequency Inverter VF SVC And VC Control Mode
1. VFD500 product feautures
1) High performance general purpose VFD for a rich variety of industry applications.
2) Excellect speed tracking function for faster respond.
3) GPRS function and PC tool.
4) PID function which can support working on pumps.
5) Big turque in low frequency and GPRS function
6) Different IO board for options
2. Brief introduction of VFD500
3. VEIKONG VFD500 frequency inverter technical data
|Keypad||LED Digital keyboard and LCD keypad(option)|
CAN OPEN AND PROFINET (IN DEVELOPMENT)
|PG card||Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary Card, frequency division signal pg card|
5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;
2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;
4 digital input terminals
2 analog input terminals, support-10V-+10V voltage input
1 digital output terminal;
1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;
1 relay output terminal (second relay is an option)
2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;
Option card: 4 digital output terminals
|Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function|
|Installation location||Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.|
|Altitude||0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m|
|Ambient temperature||-10°C~ +40°C, maximum 50°C (derated if the ambient temperature is between 40°C and 50°C) Rated output current decrease by 1.5% if temperature increase by 1°C|
|Humidity||Less than 95%RH, without condensing|
|Vibration||Less than 5.9 m/s2 (0.6 g)|
|Storage temperature||-20°C ~ +60°C|
|Installation||Wall-mounted, floor-controlled cabinet, transmural|
|cooling method||Forced air cooling|
Internal EMC filter
Complies with EN61800-3
4. Veikong VFD500 series application pics
5. Veikong VFD500 series user manual and product catalog download
