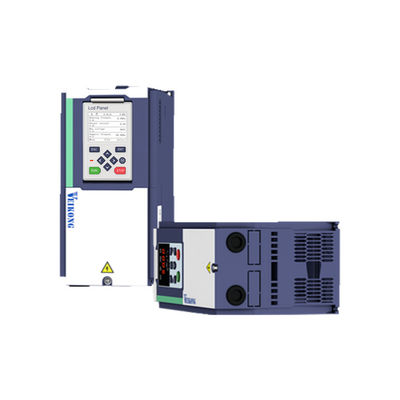

VFD500 Series Variable Frequency Inverters With New Version IO Board
Place of Origin China
Brand Name VEIKONG
Certification CE IEC ISQ
Model Number VFD500
Minimum Order Quantity 22 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 3-8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Warranty Period 18 Months Or Negotiable Application CNC Machine, Lifting And Crane Etc
GPRS Function Support Brand Name Veikong
Protection Level IP20/IP21 Product Name Variable Frequency Drive VFD
High Light

VFD500 Series Variable Frequency Inverters

,

IP21 Variable Frequency Inverters

,

VFD500 Variable Frequency Drive Inverter

Product Description

VFD500 Series Variable Frequency Inverters With New Version IO Board ​



Vector Control Hot Selling VFD500 Series Frequency Inverter With New Version IO Board

1. VFD500 hot selling variable frequency inverter with new model LCD display model product features
1) Soft start and energy saving function can help your plant more wisable
2) GPRS function help you to monitor your VFD better in the field and check the problem quickly
3) Excellent SVC algorithm can help to achieve some application with higher standard
4) Support motor selfing learning, auto tunning

2. VEIKONG hot selling VFD500 AC drive technical data

Function

Keypad LED Digital keyboard and LCD keypad(option)
Communication

Standard:

MODBUS communication

CAN OPEN AND PROFINET (IN DEVELOPMENT)

PG card Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary Card, frequency division signal pg card
Input terminal

Standard:

5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;

2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;

Option card:

4 digital input terminals

2 analog input terminals, support-10V-+10V voltage input

Output terminal

standard:

1 digital output terminal;

1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;

1 relay output terminal (second relay is an option)

2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Option card: 4 digital output terminals

Protection

Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function

Environment

Installation location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
Ambient temperature -10°C~ +40°C, maximum 50°C (derated if the ambient temperature is between 40°C and 50°C) Rated output current decrease by 1.5% if temperature increase by 1°C
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C ~ +60°C

Others

Installation Wall-mounted, floor-controlled cabinet, transmural
Protection level IP20
cooling method Forced air cooling

EMC

CE ROHS

Internal EMC filter

Complies with EN61800-3

Category C3

3rd Environment


3. Veikong VFD500 New Version IO Board and some application pics
VFD500 Series Variable Frequency Inverters With New Version IO Board 0VFD500 Series Variable Frequency Inverters With New Version IO Board 1VFD500 Series Variable Frequency Inverters With New Version IO Board 2


4. Veikong product brochure and user manual download center
VEIKONG VFD500 high performance vector and torque ...
veikong catalog latest.pdf

5. VFD500 series product introduction

VFD500 series with advanced functions, such as high-performance vector control of induction motor, user-programmable function and backstage monitoring software, variable communication and supporting multiple PG cards etc. It is applicable to textile, papermaking, tension control, wire drawing fans and pumps, machine tools, packaging, food and all kinds of automatic production equipment. Its excellent performance is equivalent and competitive to most of international brand AC drives.
