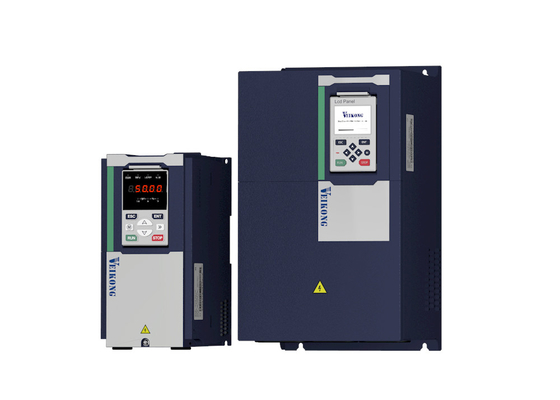

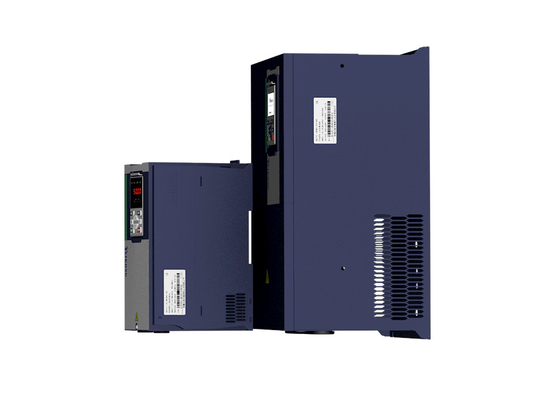

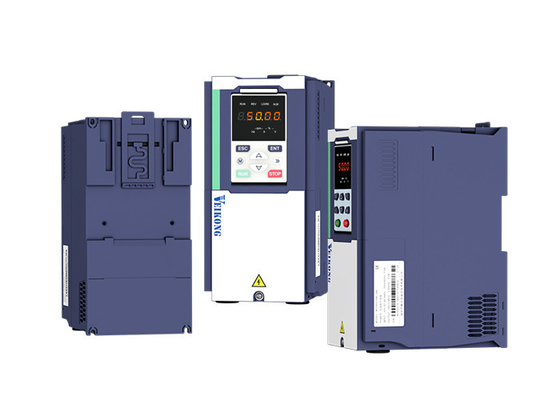

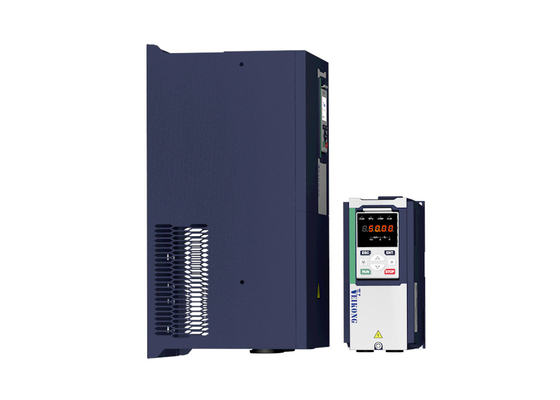

220V Single Phase Solar Pump Inverter with IP20/IP65 protection and CE/ROHS standard
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500-PV
Minimum Order Quantity 1
Price Negotiable
Packaging Details the power less than 45kw use Carton, starting from 45kw use Wooden case
Delivery Time 3 days, depend on the order quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 15000pcs per Month
Product Details
Product Name Single Phase Inverter Output Type Single Phase Or Three Phase
Voltage 220v 380v Efficiency 99.99%
Frequency 50hz/60hz OEM YES
High Light

5HP Single Phase Solar Pump Inverter

,

3HP Solar VFD With MPPT

,

10HP Single Phase Solar Pump Inverter

Product Description

220v Single Phase Solar Pump Inverter MPPT 99.99% 1HP 2HP 3HP 5HP 10HP



MPPT 99.99% 1HP 2HP 3HP 5HP 10HP 220v Single Phase Solar Pump Inverter​

Company info

VEIKONG is a technology company that has gained a solid reputation since our establishment in 2014. We offer a broad range of products, including Variable Frequency Drives, Photovoltaic Solar Pump Inverters, and Soft Starters.

Our Soft Starters have garnered a lot of attention due to their ability to provide safe and stable equipment startup while extending their lifespan. Our Soft Starters' unique features such as energy-efficient performance and high-level durability make them the perfect solution for a range of applications.

At VEIKONG, we prioritize our clients' needs, which is why we offer Soft Starters with varying voltage and power outputs, ensuring they meet the unique requirements of each of our clients. Our Soft Starters stand out for their easy installation, operation, and maintenance, facilitating maximum convenience.

In addition, VEIKONG's Soft Starters have been designed for superior reliability and safety. Each device is rigorously tested to ensure optimal performance, even in the most demanding environmental conditions. Our Soft Starters are equipped with the latest safety features that eliminate the risks associated with sudden starts.

At VEIKONG, we strive to provide unparalleled customer service. Our expert team is always ready to help our clients from inception to commissioning and even maintenance. We are dedicated to helping our clients in every possible way and providing them with innovative solutions that can optimize their operations.

In conclusion, VEIKONG's Soft Starters are the perfect solution for a range of applications due to their excellent startup performance, energy-efficient operation, and high level of durability. Our Soft Starters provide value to our clients, enhancing their productivity, safety, and cost savings. At VEIKONG, we are committed to delivering cutting-edge technology and exceptional customer service, providing optimal solutions for our clients.

VEIKONG SOLAR PUMP INVERTER Special feature:
Support Maximum mppt efficiency 99%
Special solar mppt mode and PID mode
Support LCD display
Support GPRS remote control
Support IM AND PM pump
Support hybrid AC and DC
Support Marco mode
Support dry run protection
Support full water and low water protection
Support one button to switch AC



Electrical Specifications and Power degree



  220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC
Output frequency range 50/60Hz
Max efficiency of the machine 99%
Power range 220v 0.75kw to 75kw, 380v 1.5kw-160kw
Cooling method Air cooling
Protection degree IP20/IP65
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE/ROHS





Product Application
VEIKONG solar pump inverter

220V Single Phase Solar Pump Inverter with IP20/IP65 protection and CE/ROHS standard 1


Accessories:



1. GPRS (support 2g/3g/4g internet)



2. LCD keypad



3. Output reactor





For 220V single phase motor connection
1: Single phase asynchronous motor wiring method (without
starting capacitor):
Notice: U is connected to the common end of the starting winding and the working
winding, V is connected to the starting winding, and W is connected to the working
winding;
Single-phase asynchronous motor if the rotary steering is not correct, you can
change the V and W wiring or set P22.13=1.
First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or
second solution: set P00.11=00031 if your motor frequency is 50 hz or set P00.11=32 if
your motor frequency is 60HZ

For 220V single phase motor connection
2:Single-phase asynchronous motor wiring method (with capacitor)
Notice1:First solution: Connect motor cable to power terminal U and V and enter BSC
mode to Set parameter P23.15=0(output phase loss shielding protection) or second
solution: set macro P00.11=00021 if your motor frequency is 50HZ or set P00.11=22 if
your motor frequency is 60HZ
