15KW 380V VEIKONG Variable Frequency Inverter AC Drive Motor Controller VFD
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500-PV
Minimum Order Quantity 25 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15490 per/ month
Product Details
Power 15kw Current 32A
Voltage 380V Package Carton
Material Plastic And Mental Warranty 18 Months
High Light

15KW Variable Frequency Inverter

,

VEIKONG Variable Frequency Inverter

,

AC Drive Motor Controller VFD

Product Description

15KW 380V VEIKONG Variable Frequency Inverter AC Drive Motor Controller VFD



1. The introduction of our company Veikong

Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.

Veikong, your trusted supplier!



2. Detailed Prduct Description

Item Specifiation
Input Inuput Voltage

1phase/3phase 220V:200V~240V

3 phase 380V-480V:380V~480V

  Allowed Voltage fluctuation range -15%~10%
  Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0~input voltage
  Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current

Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

  Operating mode Speed control,Torque control(SVC and VC)
  Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

  Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

  Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

  frequency range

0.00600.00Hz(V/f)

0.00200.00Hz(SVC)

0.00400.00Hz(VC)

  Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

  Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)

  Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

  V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

  Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s





3. VFD application pictures

15KW 380V VEIKONG Variable Frequency Inverter AC Drive Motor Controller VFD 015KW 380V VEIKONG Variable Frequency Inverter AC Drive Motor Controller VFD 1

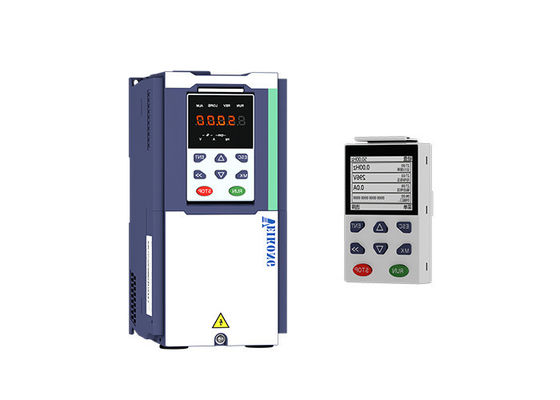

4. Veikong variable frequency controllers product images

15KW 380V VEIKONG Variable Frequency Inverter AC Drive Motor Controller VFD 2

15KW 380V VEIKONG Variable Frequency Inverter AC Drive Motor Controller VFD 3
