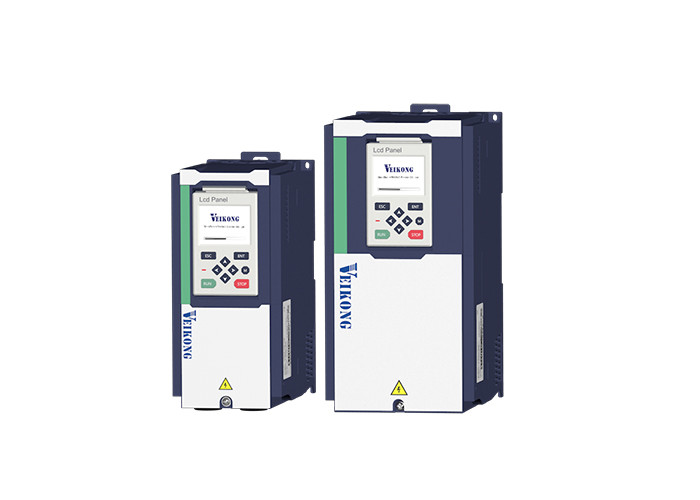

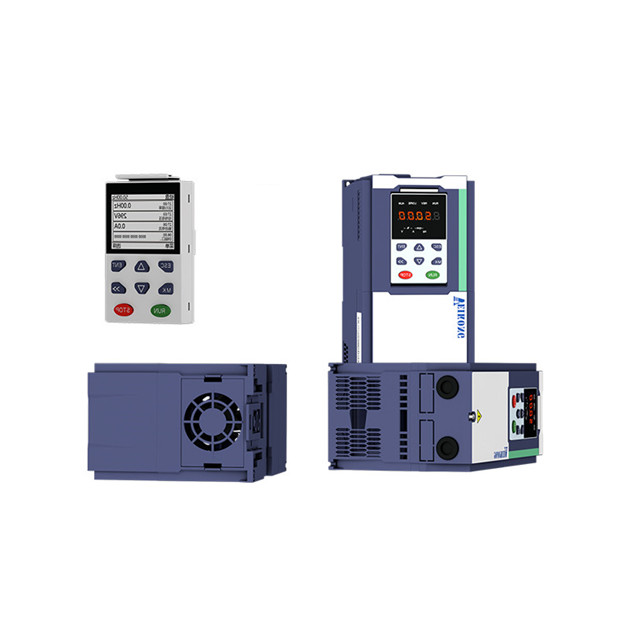

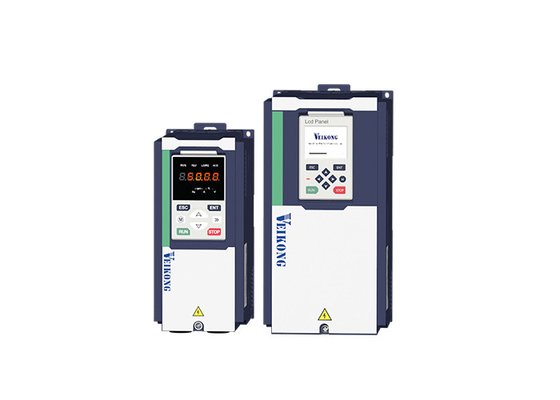

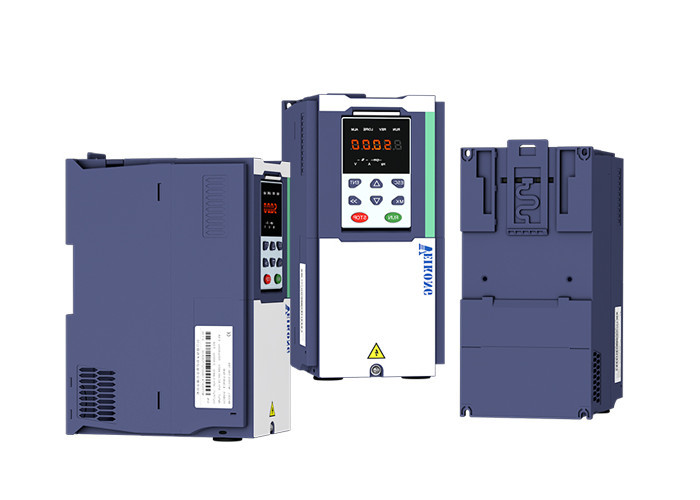

Multi-functional and User-friendly VFD Variable Frequency Drive with Excellent Practical Functions
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500
Minimum Order Quantity 24 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 3-8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Special Function Multi Step Speed Product Warranty Period 18 Months Free Technical Support
Working Efficiency Very Good Brand Name Veikong
Voltage Range 380V-480V Product Variable Frequency Inverters
Support Control Mode SVC, VC Nad VF Motor Control Speed Control And Torque Control
Communication Method RS485, Canopen, Profinet And TCP
High Light

Multi Step VFD Variable Frequency Drive

,

Multi Speed VFD Variable Frequency Drive

,

compact variable frequency inverters

Product Description

Multi Step Speed Function VFD Variable Frequency Drive For Various Applications



1. Product features of VEIKONG VFD500 series(best seller)

1) New design with core compact size for shipping and installation, save more cost for you

2) It's multifunctional and user friendly with many excellent practical functions like deceleration over excitation; undervoltage stall function; excellent speed tracking etc

3) This model adopts excellent SVC algorithm to make sure stable operation in power generation



2. Veikong VFD500 series General Technical Data For Reference

Type  Terminal symbol Terminal name Terminal function description
Analog input voltage +10V Input voltage 10.10V±1%
Analog input voltage +10V Input voltage Maximum output current:10mA,it provides power supply to external potentiometer with resistance range of:1KΩ~51KΩ
Analog input voltage GND Ananog ground Internal isolation from COM
Analog input voltage

AI1

Analog input1 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI1 Analog input1 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI1 Analog input1 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input voltage AI2 Analog input 2 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI2 Analog input 2 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI2 Analog input 2 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input AO1 Analog output 1 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO1 Analog output 1 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO1 Analog output 1 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output
Analog input AO2 Analog output 2 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO2 Analog output 2 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO2 Analog output 2 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output.
Analog input GND Ananog ground Internal isolation from COM





2. The latest feedback from clients about Veikong VFD500 series all over the world

veikong solar pump inverter

Multi-functional and User-friendly VFD Variable Frequency Drive with Excellent Practical Functions 1

Multi-functional and User-friendly VFD Variable Frequency Drive with Excellent Practical Functions 2



4. Product User Manual and Porduct Brochure Download Center

VEIKONG VFD500 high performance vector and torque ...

veikong catalog latest.pdf





5. The brief introduction of company info

Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions.

We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.

Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard.

The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry.
