VEIKONG 7.5KW 380V VFD Variable Frequency Drive for General Purpose Motor
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500-PV
Minimum Order Quantity 25 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15490 per/ month
Product Details
Power 7.5kw Package Carton
Current 17A Voltage 380V
Display LED/LCD Color Blue And White
Warranty 18 Months Or Negotiable Control Mode SVC VF And VC
Motor Control Mode Speed Control And Torque Control OEM Supported
High Light

vector control Variable Frequency Inverter

,

Variable Frequency Inverter 7.5KW

,

VEIKONG AC Drive Motor

Product Description

7.5KW 380V VEIKONG Variable Frequency Inverter General Purpose AC Drive Motor



1. The introduction of our company Veikong

Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.

Veikong, your trusted supplier!



2. Detailed Prduct Description

Type Terminal symbol Terminal name Terminal function description
Analog input voltage +10V Input voltage 10.10V±1%
Analog input voltage +10V Input voltage Maximum output current:10mA,it provides power supply to external potentiometer with resistance range of:1KΩ~51KΩ
Analog input voltage GND Ananog ground Internal isolation from COM
Analog input voltage AI1 Analog input1 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI1 Analog input1 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI1 Analog input1 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input voltage AI2 Analog input 2 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI2 Analog input 2 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI2 Analog input 2 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input AO1 Analog output 1 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO1 Analog output 1 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO1 Analog output 1 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output
Analog input AO2 Analog output 2 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO2 Analog output 2 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO2 Analog output 2 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output.
Analog input GND Ananog ground Internal isolation from COM





3. Veikong VFD package pictures

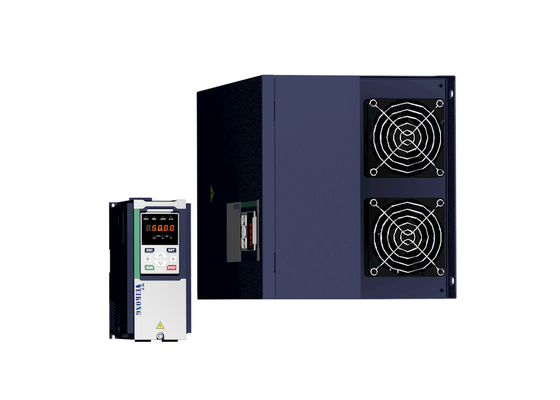

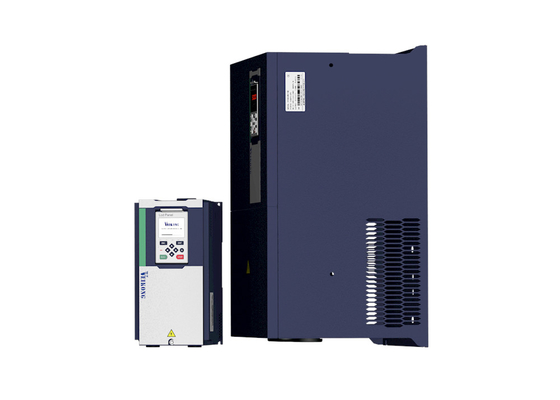

VEIKONG packing VEIKONG 7.5KW 380V VFD Variable Frequency Drive for General Purpose Motor 1VEIKONG 7.5KW 380V VFD Variable Frequency Drive for General Purpose Motor 2



4. Veikong variable frequency controllers product images

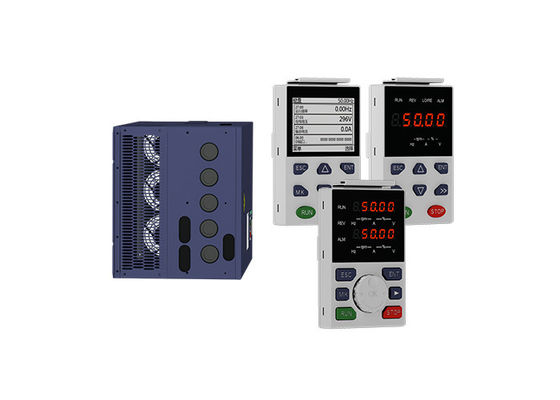

VEIKONG 7.5KW 380V VFD Variable Frequency Drive for General Purpose Motor 3

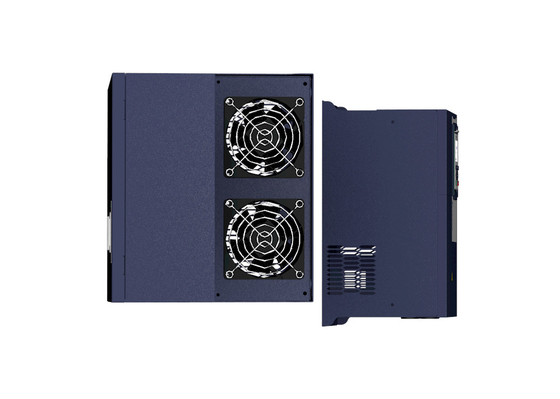

VEIKONG 7.5KW 380V VFD Variable Frequency Drive for General Purpose Motor 4





5. FAQ:

1. Can you accept to use our logo?

we accept OEM production.



2. How can i get the after-service?

Our R&D team with more than 20 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.



3. How about your products quality inspection?

We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.
