Veikong VFD500 Customizable VFD Variable Frequency Drive For Industrial
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500
Minimum Order Quantity 24 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 3-8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 per/ month
Product Details
Remote Control Support Power Range 0.75-710kw
Filter Level C3 Cooling Fan High Efficiency
Warranty 18 Months Product Name Variable Frequency Drive VFD
Quality Standard High Quality OEM Service Support With MOQ
Color Dark Blue And White Technical Support Online Support
R&D To Support Upgrading Software
High Light

C3 Filter VFD Variable Frequency Drive

,

HVAC VFD Variable Frequency Drive

,

OEM variable frequency drive VFD

Product Description

Supplier VFD Variable Frequency Drive Hvac For 3 Phase Motor OEM Supported



1. Veikong VFD500 series High Performance General Purpose AC Drives

Power range for reference: 0.75kw to 710kw



1) Motot auto tune(static and dynamic)

2) 2 motor parameter groups

3) DC injection braking

4) LCD keypad and shuttle keypad optional

5) Integral brake chopper(<30kw)

6) DC reactor 18.5kw and above optional

7) 2 PID control optional and energy saving function



2. Veikong VFD data sheet compare with other products

Brand VEIKONG Other famous brand in China
Series VFD500
Inverter appplication purpose High performance general purpose General purpose
Power range 0.4kw-710kw 0.75kw-630kw
Input frequency 50Hz/60Hz 50Hz/60Hz
Output voltage 0-input 0-input
Output frequency 0-600HZ(V/F) 0-200HZ(SVC) 0-400HZ(VC) 0-400HZ
Keypad control standard: LED Optional: LCD+shuttle LED LCD
Control method VF SVC VC SVC, VF
Built in braking unit 0.75-22kw below 18.5kw
Over load ability 150% of rated current: 1 minute 180% of rated current: 10 seconds 200% of rated current: 1 second M type: 150% of rated current: 1 minute 180% of rated current: 1 second 200% of rated current: instant protection FP type: 120% of rated current: 1 minute 150% of rated current: 1 second 180% of rated current: instant protection
RS485 communication Support no
Torque control accurancy SVC: within 5Hz 10%, above 5Hz 5% VC:3% 1HZ 0.1%
Protect level IP20 IP20
Ambient temperature (-10-40℃)(derated if the ambient temperature is between 40℃ and 50℃ (-10-40℃)
Installation method wall-mounted, floor-controlled, cabinet, transmural wall mountable or in cabinet

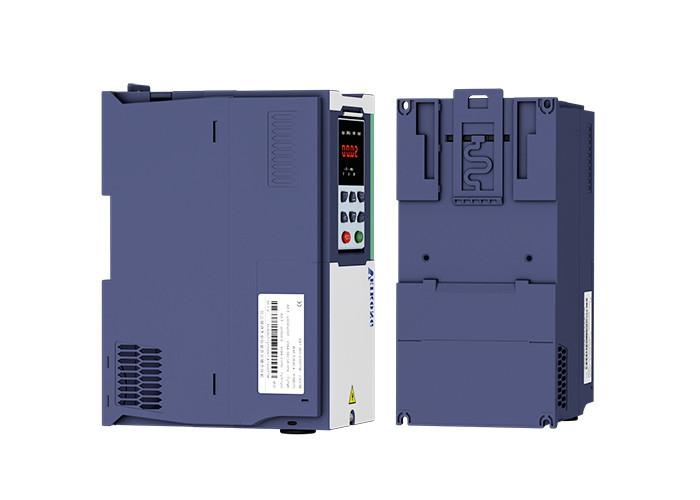

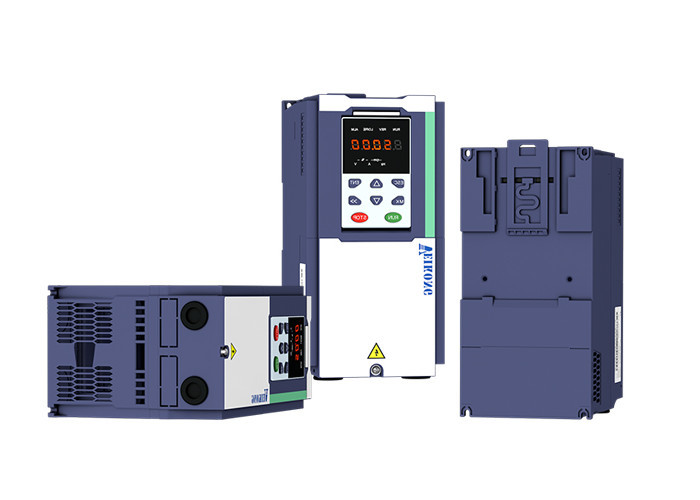

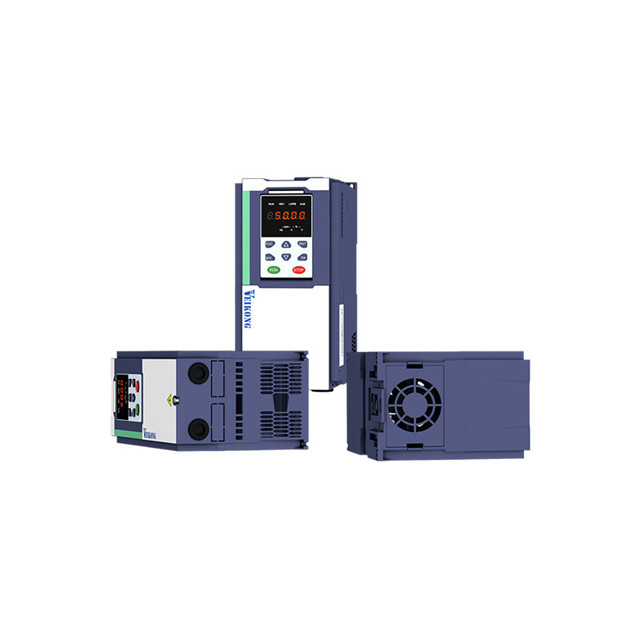

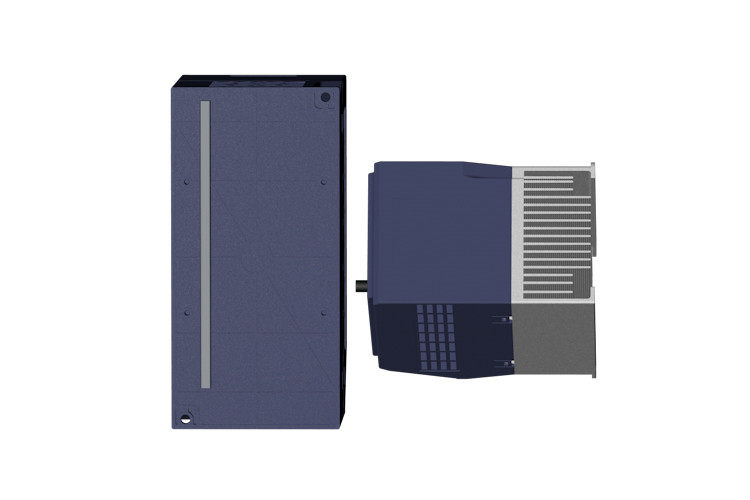

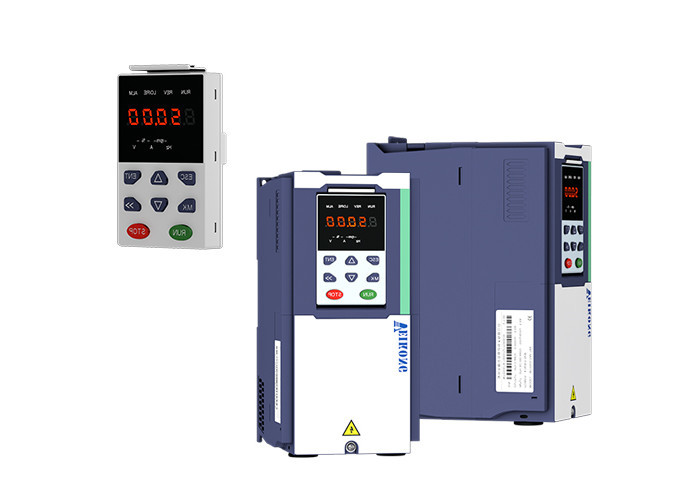

3. Veikong variable frequency inverter product appearance

Veikong VFD500 Customizable VFD Variable Frequency Drive For Industrial 0 Veikong VFD500 Customizable VFD Variable Frequency Drive For Industrial 1Veikong VFD500 Customizable VFD Variable Frequency Drive For Industrial 2







4. Product User Manual and Porduct Brochure Download

VEIKONG VFD500 high performance vector and torque ...

veikong catalog latest.pdf



5. Motor Wiring

◆ It is forbidden to short circuit or ground the inverter output terminal, otherwise the internal components of the inverter will be damaged.

◆ Avoid short circuit the output cables or with the inverter enclosure, otherwise there exists the danger of electric shock.

◆ It is forbidden to connect the output terminal of the inverter to the capacitor or LC/RC noise filter with phase lead, otherwise, the internal components of the inverter may be damaged.

◆ When contactor is installed between the inverter and the motor, it is forbidden to switch on/off the contactor during the running of the inverter, otherwise, there will be large current flowing into the inverter, triggering the inverter protection action.

◆ Length of cable between the inverter and motor If the cable between the inverter and the motor is too long, the higher harmonic leakage current of the output end will produce by adverse impact on the inverter and the peripheral devices. It is suggested that when the motor cable is longer than 100m, output AC reactor be installed. Refer to the following table for the carrier frequency setting
