Max Efficiency and Wide Input Voltage Range VFD Variable Frequency Drive for Motors
Place of Origin China
Brand Name VEIKONG
Certification CE IEC
Model Number VFD500-PV
Minimum Order Quantity 25 pcs
Price negotiable
Packaging Details paper carton under 45kw, starting from 45kw wooden case for packing
Delivery Time 7-8 working days based on quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15490 per/ month
Product Details
Voltage 380V/220V Material Mental/Plastic
Phase Single/three Digital Inputs 5
Analog Inputs 2 Warranty 18months
OEM Support Brand VEIKONG
Color Dark Blue And White Communication Method RS485 And CANOPEN
PC Tool Communciation Support Technical Support Online Technical Support
High Light

99 MPPT VFD Variable Frequency Drive

,

Compact VFD Variable Frequency Drive

,

99 MPPT Variable frequency drive

Product Description

VFD500 Series Variable frequency drive for 3 phase Asynchronous motor control



1. Features of variable frequency drive VFD500 series for your reference

1.Compact size to help save the shipping space and cost. VEIKONG continues to make applications even smaller by combining the compact designed drive with the light, efficient design of a synchronous motor.

2.Ripad response to impact loads. When it meets with sudden load change, inverter can quickly restore the speed, reduce the speed fluctuation, and ensure the production stability and high quality finished products

3.Perfect protection system to protect your motor and the whole device. Designed for 10 years of maintenance-free operation. Cooling fan, capacitors, relays, and IGBTs have been carefully selected and designed for a life expectancy up to ten years.



2. VFD500-PV solar pump drive specification

Voltage range 220V 380V
Max inputDC voltage 450V 800V
RecommendedMPPTvoltage range 250~350VDC 400~600VDC
Recommendedinput voltage 305V 530V
MPPT efficiency 99%
Input channel

2

Rated output voltage 3-phase 220VAC 3-phase 380VAC
Output frequencyrange 0~60Hz
Max efficiencyof the machine more than or 97%
Ambienttemperature range -10 °C~50 °C in general, derating if the temperature is above 40 °C
Cooling method Air cooling method
Protection degree IP20
Altitude Below 1000 meters; above 1% for every additional 100m.
Standard CE IEC



3. The factory environment and manufacturing and testing process here

Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!

Veikong is a professional solar pump inverter in China with the experience of more than 20 years. During these years, we put many fund and energy into researching and developing department for improving our products and gaining more market. We are trying to send our products to every corner of the world where needing inverters!

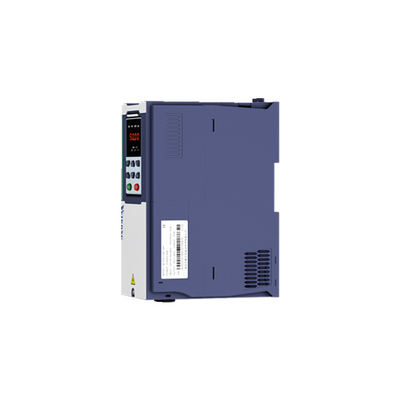

Max Efficiency and Wide Input Voltage Range VFD Variable Frequency Drive for Motors 0



4. FAQ:

1. Can you accept to use our logo?

We accept OEM production.



2. How can i get the after-service?

Our R&D team with more than 20 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.



3. How about your products quality inspection?

We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.

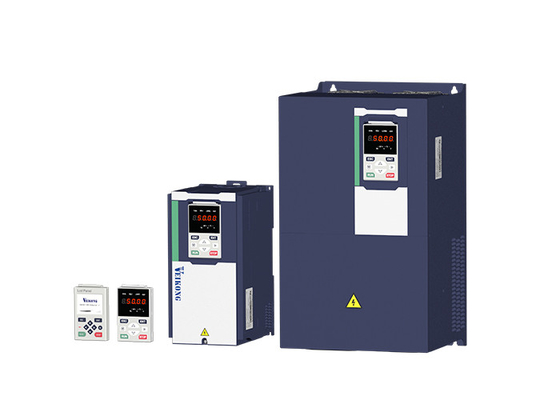

5. Veikong variable frequency controllers product images

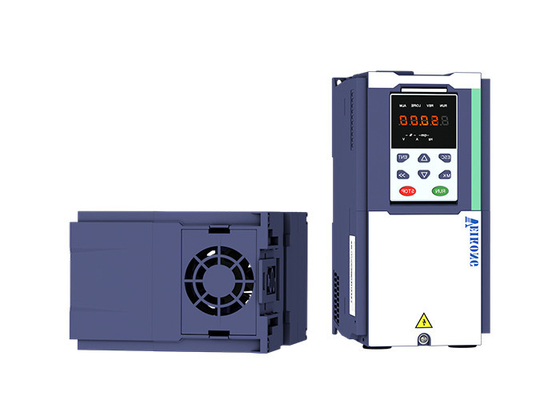

Max Efficiency and Wide Input Voltage Range VFD Variable Frequency Drive for Motors 1

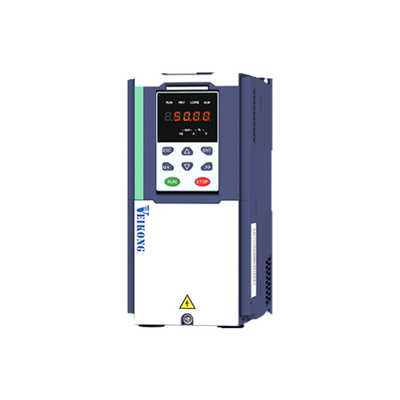

Max Efficiency and Wide Input Voltage Range VFD Variable Frequency Drive for Motors 2
