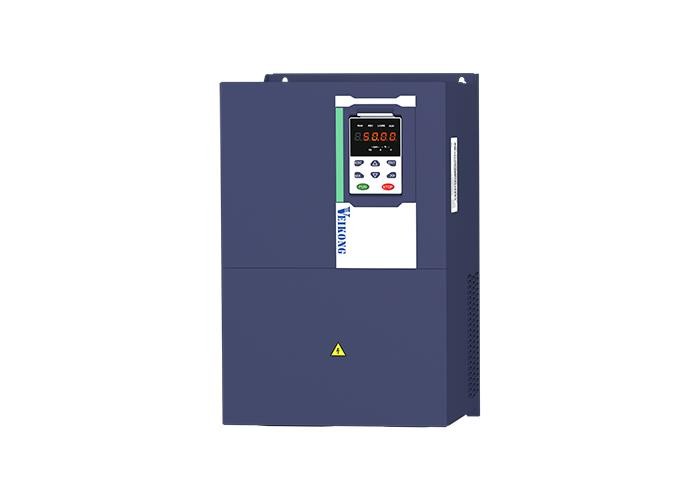

VEIKONG Variable Frequency Inverter General Purpose AC Drive Motor Controller
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE IEC |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 25 pcs |
| Price | negotiable |
| Packaging Details | paper carton under 45kw, starting from 45kw wooden case for packing |
| Delivery Time | 7-8 working days based on quantity |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15490 per/ month |
Product Details
| Power | 0.75kw-500kw | Warranty | 18months |
|---|---|---|---|
| Voltage | 380V/220V | OEM | Yes |
| MPPT Efficiency | More Than 99% | Standard | CE |
| High Light | Compact Variable Frequency Inverter,VEIKONG Variable Frequency Inverter,500kw AC Drive Motor Controller |
||
Product Description
VEIKONG Variable Frequency Inverter General Purpose AC Drives Motor Controller
1. Features of variable frequency drive VFD500 series for your reference
1. Compact size to help save the shipping space and cost. VEIKONG continues to make applications even smaller by combining the compact designed drive with the light, efficient design of a synchronous motor.
2. Ripad response to impact loads. When it meets with sudden load change, inverter can quickly restore the speed, reduce the speed fluctuation, and ensure the production stability and high quality finished products.
3. Perfect protection system to protect your motor and the whole device. Designed for 10 years of maintenance-free operation. Cooling fan, capacitors, relays, and IGBTs have been carefully selected and designed for a life expectancy up to ten years.
2. Detailed Prduct Description
| Item | Specification | |
| Function | Keypad | LED and LCD for optional |
| communication | Standard: MODBUS communication Option:Profibus-DP and CAN OPEN | |
| PG card | Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card | |
| Input terminal | standard: 5 digital input terminals, one of which supports high speed pulse input up to 50kHz; 2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input; Option card: 4 digital input terminals 2 analog input terminals.support-10V-+10V voltage input | |
| Output terminal | standard: 1 digital output terminal; 1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output; 1 relay output terminal 2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output; Option card: 4 digital output terminal | |
3. The factory environment and manufacturing and testing process
4. Veikong variable frequency controllers product images
5. FAQ:
1. Can you accept to use our logo?
we accept OEM production.
2. How can i get the after-service?
Our R&D team with more than 20 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
3. How about your products quality inspection?
We have professional QA and QC teams, 100% quality inspection is performed before goods out of factory.
