Mini IP20 380V 0.75KW 1.5KW 2.2KW 4KW VFD Variable Frequency Drive
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD500M
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 380V 0.75KW 1.5KW 2.2KW 4KW VFD Voltage 380V
Protection Level IP20 Frequency 50/60HZ
Communication RS485 Input Type Three Phase
OEM Supported Original China
Color Dark Blue PC Tool Software Support
High Light

Mini IP20 VFD Frequency Inverter

,

VFD Frequency Inverter Three phase

,

RS485 VFD Variable Frequency Drive

Product Description

Mini IP20 380V 0.75KW 1.5KW 2.2KW 4KW VFD Frequency Inverter For AC Motor



VFD500M Series Features and Functions



1 phase 200V/240V: 0.4KW-4KW

3 phase 200V/240V: 0.4KW-4KW

3 phase 380V/480V: 0.75KW-7.5KW



1. Motor Auto-tune (static and dynamic)



2. 2 motor parameter groups



3. DC Injection braking



4. External LED/LCD and shuttle keyboard optional



5. Integral brake chopper



6. Energy saving function



7. High speed pulse function

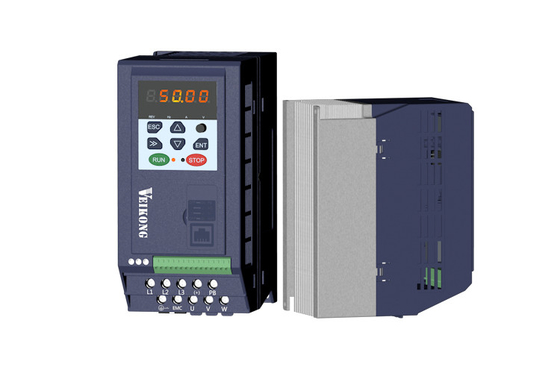

Mini IP20 380V 0.75KW 1.5KW 2.2KW 4KW VFD Variable Frequency Drive 0


Model Range



Model

Power capacity

(KVA)

Input current

(A)

Output current(A)

Adaptable Motor

(KW)

SIZE

Brake Unit

Heavy load

Light load

3 phase: 380V-480V,50/60Hz

VFD500M-R75GT4B

1.6

3.2

2.5

4.2

0.75

SIZE B

Internal

VFD500M-1R5GT4B

2.8

4.7

4.2

5.6

1.5

VFD500M-2R2GT4B

3.7

7.8

5.6

9.4

2.2

VFD500M-4R0GT4B

6.2

11.6

9.4

10.5

3.7

VFD500M-5R5GT4B

8.6

15.6

13.0

17.0

5.5

SIZE C

Internal

VFD500M-7R5GT4B

11.2

20.5

17.0

23.0

7.5

1 phase: 200-240V,50/60Hz

VFD500M-R40GS2B

1.2

6.9

2.8

3.2

0.4

SIZEA

Internal

VFD500M-R75GS2B

2.1

12.2

4.5

4.8

0.75

VFD500M-1R5GS2B

3.1

17.0

8.0

10.6

1.5

SIZEB

VFD500M-2R2GS2B

4.1

21.0

10.6

12.5

2.2

3 phase: 200V-240V,50/60Hz

VFD500M-R40GT2B

1.2

4

2.8

3.2

0.4

Size B



Internal

VFD500M-R75GT2B

2.1

7.1

4.5

4.8

0.75

VFD500M-1R5GT2B

3.1

11.3

8.0

10.6

1.5

VFD500M-2R2GT2B

4.1

14.5

10.6

12.5

2.2



Product Application

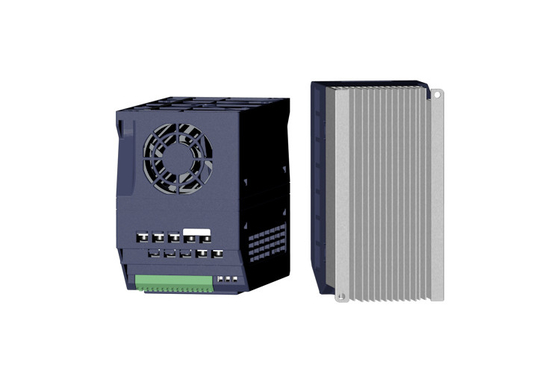

Mini IP20 380V 0.75KW 1.5KW 2.2KW 4KW VFD Variable Frequency Drive 1



Mini IP20 380V 0.75KW 1.5KW 2.2KW 4KW VFD Variable Frequency Drive 2



FAQ:



1. How to choose suitable VFD for my machine?



Please send us your machine details, we will provide you most suitable model type.



2. Do you support OEM service?



Yes, we support OEM and ODM.



3. What is your market?


We export to the South America, Europe, India, the Middle East, Asia, Africa, etcs.
