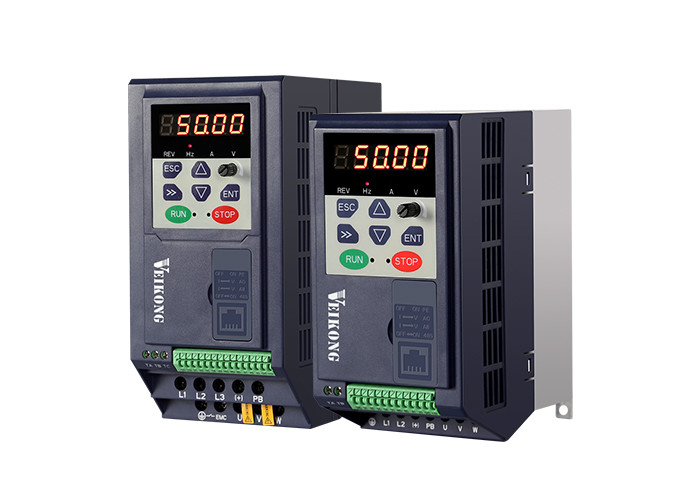

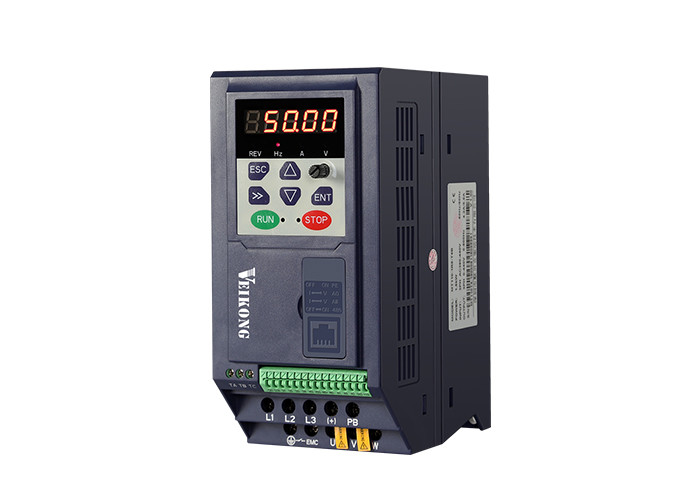

1.5KW 2.2KW 4KW Solar Inverter Single Phase Input Single Phase Output
Product Details
| Product Name | Single Phase Input Single Phase Output Solar Pump Inverter | Colar | Blue |
|---|---|---|---|
| MPPT | 99% | Display | LED |
| Power Range | 1.5KW-4KW | Output Type | Single Phase |
| High Light | 4KW Solar Inverter,2.2KW Solar Inverter,1.5KW Solar Inverter |
||
Product Description
1.5KW 2.2KW 4KW Solar Inverter Single Phase Input Single Phase Output
1.5KW 2.2KW 4KW Single Phase Input Single Phase Output Solar Pump Inverter
Product Feature:
1. Support Maximum MPPT efficiency 99%
2. Special solar MPPT mode and PID mode
3. Support GPRS remote control
4. Support IM and PM pump
5. Support dry run protection
Eletrical Specification
| 220V | 380V | |
| Max input DC voltage | 450V | 810V |
| DC voltage range | 150~450VDC | 250~810VDC |
| Recommended input mppt voltage | 305V | 530V |
| MPPT efficiency | >99% | |
| Rated output voltage | 1/3-phase 220VAC | 3-phase 380-480VAC |
| Output frequency range | 50/60Hz | |
| Max efficiency of the machine | 99% | |
| Ambient temperature range | -10 °C~50 °C, derating if the temperature is above 40 °C | |
| Cooling method | Air cooling | |
| Protection degree | IP20/IP21 |
| Altitude | Below 1000m; above 1% for every additional 100m. |
| Standard | CE/ROHS |
Product Model
| Drive model | Max DC input current (A) | Rated output current (A) | Applicable water pump (kW) |
| VFD500M-40T00075-PV | 4.2 | 2.5 | 0.75 |
| VFD500M-40T00150-PV | 6.1 | 3.7 | 1.5 |
| VFD500M-40T00220-PV | 7.1 | 5 | 2.2 |
| VFD500M-40T00400-PV | 16.5 | 9.4 | 4 |
| VFD500M-40T00550-PV | 23.9 | 13 | 5.5 |
| VFD500M-40T00750-PV | 30.6 | 17 | 7.5 |
| 220V single phase or three phase level | |||
| VFD500M-20T00075-PV | 6.7 | 4.5 | 0.75 |
| VFD500M-20T00150-PV | 9.9 | 7 | 1.5 |
| VFD500M-20T00220-PV | 14.1 | 11 | 2.2 |
| VFD500M-20T00400-PV | 22.6 | 17 | 4 |
Product Details
FAQ:
1. How to use a float in the water tank to stop the pump if the tank is full?
Use float switch to short DI 1 and com.
2.1 How to set minimum frequency 25hz and maximum 50HZ?
Set P47.05=25HZ and 47.06 to some time and 47.07 to some time
3. 1 If pump is 60HZ frequency ,how to set max frequency?
Notice:If your motor rated frequency is 60HZ you should set P01.06=P01.08=P11.05=60HZ.
