Digital and Analog Setting Options for Input Frequency Resolution in PMSM Inverter
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD530
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 45kw 55kw VFD Current 90A And 110A
Weight 33kg Size 555*320*275mm
Control Mode VF, SVC, VC, Torque Control, Tension Control Keypad LCD/LED
Lifting Logic Yes Suitable Motor Synchronous Motor And Asynchronous Motor
Original China Support Three Wire Control Yes
High Light

55kw PMSM Inverter

,

45kw PMSM Inverter

,

45kw VFD Inverter

Product Description

45kw 55kw VFD Frequency Inverter With Tension Control For PMSM Motor



Product Feature



1. High capacity 256k TI DSP with faster response and higher accuracy.



2. Support Synchronous and Asynchronous motors



3. Output frequency up to 3000hz



4. Special brake logic mechanism for crane and hoist application



5. Support 2 PID functions for HVAC



6. Magnetic flux brake gain



7. Up to 200% starting torque at 0hz



8. Torque control for winding and rewinding

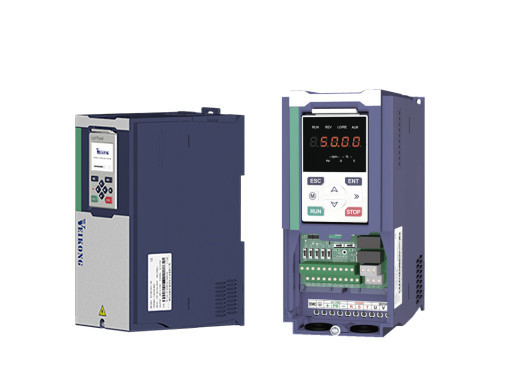

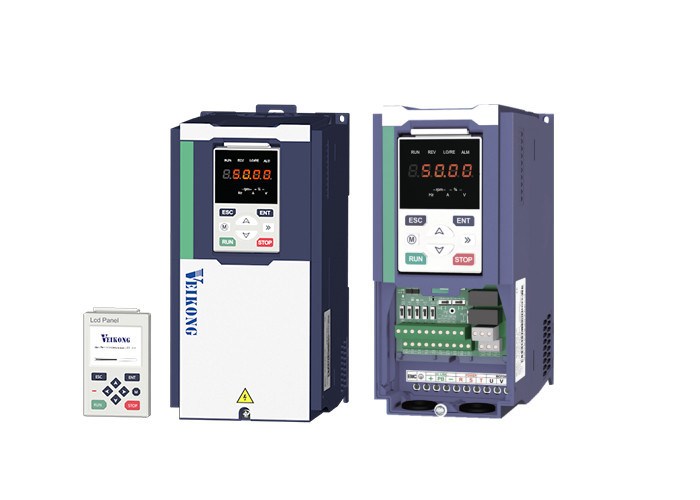

Digital and Analog Setting Options for Input Frequency Resolution in PMSM Inverter 0



Technical Specification







Control

Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)

Operating mode

Speed control,Torque control(SVC and VC)

Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)

Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)

Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)

frequency range

0.00~2000.00Hz(V/f)

0.00~200.00Hz(SVC)

0.00~400.00Hz(VC)

Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%

Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)

Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%

V/f curve

V / f curve type: straight line, multipoint, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost

Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s

DC bus voltage control

Overvoltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;



Undervoltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure



VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

VdcMin control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump undervoltage fault

Carrier frequency

1kHz~12kHz(Varies depending on the type)

Startup method

Direct start (can be superimposed DC brake); speed tracking start

Stop method

Deceleration stop (can be superimposed DC braking); free to stop

Maincontrol function

Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN







Model Range



Model

Power capacity

(KVA)

Input current

(A)

Output current(A)

Adaptable Motor

(KW)

SIZE

Brake Unit

Heavy load

Light load

Three phase: 380-480V,50/60Hz

VFD530-R75GT4B

1.5

3.4

2.5

4.2

0.75

SIZE A

Internal

VFD530-1R5GT4B

3

5

4.2

5.6

1.5

VFD530-2R2GT4B

4

5.8

5.6

9.4

2.2

VFD530-4R0G/5R5PT4B

5.9

10.5

9.4

13.0

3.7

VFD530-5R5G/7R5PT4B

8.9

14.6

13.0

17.0

5.5

SIZE B

VFD530-7R5G/011PT4B

11

20.5

17.0

23.0

7.5

VFD530-011G/015PT4B

17

26.0

25.0

31.0

11

SIZE C

Internal

VFD530-015G/018PT4B

21

35.0

32.0

37.0

15

VFD530-018G/022PT4B

24

38.5

37.0

45.0

18.5

SIZE D

VFD530-022G/030PT4B

30

46.5

45.0

57.0

22

VFD530-030G/037PT4

40

62.0

60.0

75.0

30

SIZE E

option

VFD530-037G/045PT4

50

76.0

75.0

87.0

37

VFD530-045G/055PT4

60

92.0

90.0

110.0

45

SIZE F

VFD530-055G/075PT4

75

113.0

110.0

135.0

55

VFD530-075G/090PT4

104

157.0

152.0

165.0

75

SIZE G

VFD530-090G/110PT4

112

170.0

176.0

210.0

90

External

VFD530-110G/132PT4

145

220.0

210.0

253.0

110

SIZE H

VFD530-132G/160PT4

170

258.0

253.0

304.0

132

SIZE I

VFD530-160G/185PT4

210

320.0

304.0

360.0

160

VFD530-185G/200PT4

245

372.0

360.0

380.0

185

SIZE J

VFD530-200G/220PT4

250

380.0

380.0

426.0

200

VFD530-220G/250PT4

280

425.0

426.0

465.0

220

SIZE K

VFD530-250G/280PT4

315

479.0

465.0

520.0

250

VFD530-280G/315PT4

350

532.0

520.0

585.0

280

SIZE L

VFD530-315G/355PT4

385

585.0

585.0

650.0

315

VFD530-355G/400PT4

420

638.0

650.0

725.0

355

SIZE M

VFD530-400G/450PT4

470

714.0

725.0

820.0

400

VFD530-450G/500PT4

530

800.0

820.0

/

450

SIZE N

VFD530-500G/560PT4

580

880.0

900.0

/

500

VFD530-560G/630PT4

630

950.0

980.0

/

560

SIZE O

VFD530-630GT4

710

1080

1120.

/

630

SIZE O

VFD530-710GT4

790

1200

1260

/

710

SIZE O

Single phase :220V ,50/60HZ

VFD530-R40GS2

1.3

6.0

3.2

5.6

0.4

SIZE A

Inbuilt

VFD530-R75GS2

2.4

11.0

5.6

8.0

0.75

SIZE A

VFD530-1R5GS2

3.5

15.0

8.0

10.6

1.5

SIZE A

VFD530-2R2GS2

5.5

25.0

10.6

14.0

2.2

SIZE A

VFD530-4R0GS2

7.7

35.0

17.0

23.0

4.0

SIZE B

VFD530-5R5GS2

8.9

53.0

25.0

31.0

5.5

SIZE C

VFD530-7R5GS2

11

67.0

32.0

37.0

7.5

SIZE C



Product Application

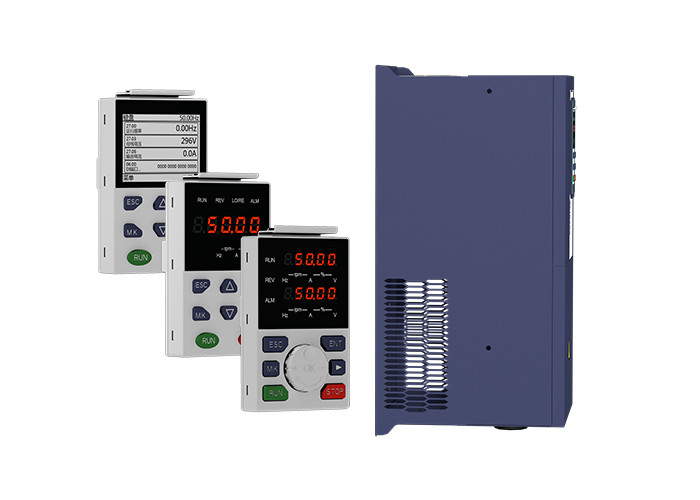

Digital and Analog Setting Options for Input Frequency Resolution in PMSM Inverter 1

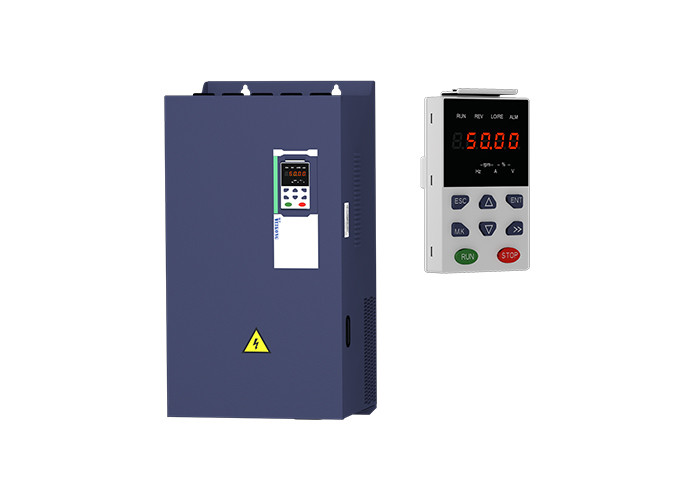

Digital and Analog Setting Options for Input Frequency Resolution in PMSM Inverter 2



FAQ



1. What's the shipping method?



We support ship by express, by air and by sea. And we will recommend the most suitable shipping way to you according to your order list.



2. How are your products packaged?



0.75kw-37kw use carton, 45kw and above use wooden box.



3. Do you accept OEM order?



Yes we accept OEM order with your authorization.
