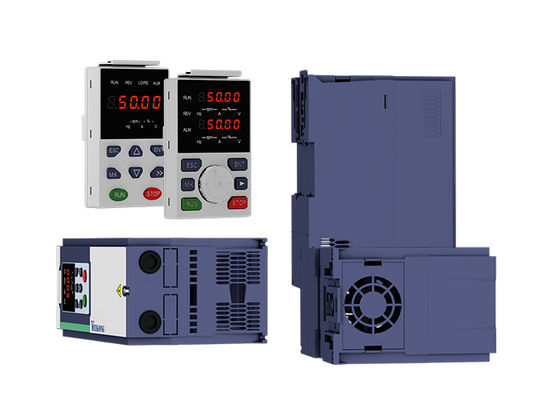

Torque Control 5.5kw 7.5 Kw VFD Inverter 3 Phase Energy saving
Place of Origin China
Brand Name VEIKONG
Certification CE
Model Number VFD530
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton and Wooden Box
Delivery Time 3 days, depend on the order quantity
Payment Terms Western Union, T/T, L/C, D/A, D/P, PayPal
Supply Ability 15000pcs per Month
Product Details
Product Name 3 Phase 5.5kw 7.5kw VFD Current 13A And 17A
Voltage Range 380v-480v Pressure Low Pressure
Color Blue Size 250*130*180mm
High Light

7.5 Kw VFD Inverter 3 Phase

,

5.5kw VFD Inverter 3 Phase

,

Torque Control 7.5 Kw VFD

Product Description

3 Phase 5.5kw 7.5kw VFD Frequency Inverter With Torque Control​



Product Feature



1. 2 PID loop for HVAC



2. Energy saving function



3. Modbus RTU / RS485 built-in



4. Digital Input



5. CANopen card and Profinet card optional



6. 5 digital inputs (Support Max 9 DI)



7. 2 Analogue inputs and outputs



Technical Specification



Input Voltage:

1phase/3phase 220V:200V~240V

3 phase 380V-480V:380V~480V



Allowed Voltage fluctuation range: -15%~10%



Input frequency: 50Hz / 60Hz,fluctuation less than 5%



Output Voltage: 3phase:0~input voltage



Overload capacity:

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current



Control mode:

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)



Model Range



Model

Power capacity

(KVA)

Input current

(A)

Output current(A)

Adaptable Motor

(KW)

SIZE

Brake Unit

Heavy load

Light load

Three phase: 380-480V,50/60Hz

VFD530-R75GT4B

1.5

3.4

2.5

4.2

0.75

SIZE A

Internal

VFD530-1R5GT4B

3

5

4.2

5.6

1.5

VFD530-2R2GT4B

4

5.8

5.6

9.4

2.2

VFD530-4R0G/5R5PT4B

5.9

10.5

9.4

13.0

3.7

VFD530-5R5G/7R5PT4B

8.9

14.6

13.0

17.0

5.5

SIZE B

VFD530-7R5G/011PT4B

11

20.5

17.0

23.0

7.5

VFD530-011G/015PT4B

17

26.0

25.0

31.0

11

SIZE C

Internal

VFD530-015G/018PT4B

21

35.0

32.0

37.0

15

VFD530-018G/022PT4B

24

38.5

37.0

45.0

18.5

SIZE D

VFD530-022G/030PT4B

30

46.5

45.0

57.0

22

VFD530-030G/037PT4

40

62.0

60.0

75.0

30

SIZE E

option

VFD530-037G/045PT4

50

76.0

75.0

87.0

37

VFD530-045G/055PT4

60

92.0

90.0

110.0

45

SIZE F

VFD530-055G/075PT4

75

113.0

110.0

135.0

55

VFD530-075G/090PT4

104

157.0

152.0

165.0

75

SIZE G

VFD530-090G/110PT4

112

170.0

176.0

210.0

90

External

VFD530-110G/132PT4

145

220.0

210.0

253.0

110

SIZE H

VFD530-132G/160PT4

170

258.0

253.0

304.0

132

SIZE I

VFD530-160G/185PT4

210

320.0

304.0

360.0

160

VFD530-185G/200PT4

245

372.0

360.0

380.0

185

SIZE J

VFD530-200G/220PT4

250

380.0

380.0

426.0

200

VFD530-220G/250PT4

280

425.0

426.0

465.0

220

SIZE K

VFD530-250G/280PT4

315

479.0

465.0

520.0

250

VFD530-280G/315PT4

350

532.0

520.0

585.0

280

SIZE L

VFD530-315G/355PT4

385

585.0

585.0

650.0

315

VFD530-355G/400PT4

420

638.0

650.0

725.0

355

SIZE M

VFD530-400G/450PT4

470

714.0

725.0

820.0

400

VFD530-450G/500PT4

530

800.0

820.0

/

450

SIZE N

VFD530-500G/560PT4

580

880.0

900.0

/

500

VFD530-560G/630PT4

630

950.0

980.0

/

560

SIZE O

VFD530-630GT4

710

1080

1120.

/

630

SIZE O

VFD530-710GT4

790

1200

1260

/

710

SIZE O

Single phase :220V ,50/60HZ

VFD530-R40GS2

1.3

6.0

3.2

5.6

0.4

SIZE A

Inbuilt

VFD530-R75GS2

2.4

11.0

5.6

8.0

0.75

SIZE A

VFD530-1R5GS2

3.5

15.0

8.0

10.6

1.5

SIZE A

VFD530-2R2GS2

5.5

25.0

10.6

14.0

2.2

SIZE A

VFD530-4R0GS2

7.7

35.0

17.0

23.0

4.0

SIZE B

VFD530-5R5GS2

8.9

53.0

25.0

31.0

5.5

SIZE C

VFD530-7R5GS2

11

67.0

32.0

37.0

7.5

SIZE C



Product Application



Torque Control 5.5kw 7.5 Kw VFD Inverter 3 Phase Energy saving 0



Torque Control 5.5kw 7.5 Kw VFD Inverter 3 Phase Energy saving 1



FAQ



1. What's the shipping method?



We support ship by express, by air and by sea. And we will recommend the most suitable shipping way to you according to your order list.



2. How are your products packaged?



0.75kw-37kw use carton, 45kw and above use wooden box.



3. Do you accept OEM order?



Yes we accept OEM order with your authorization.
